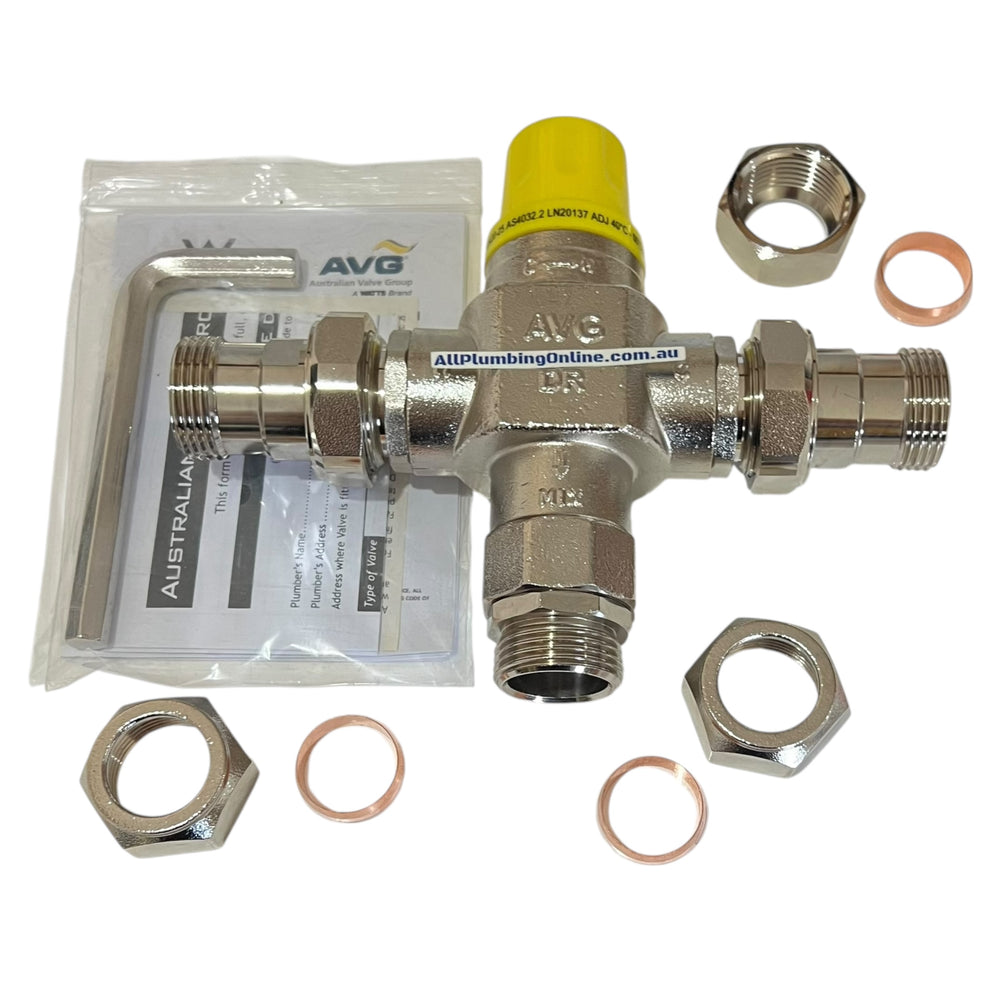

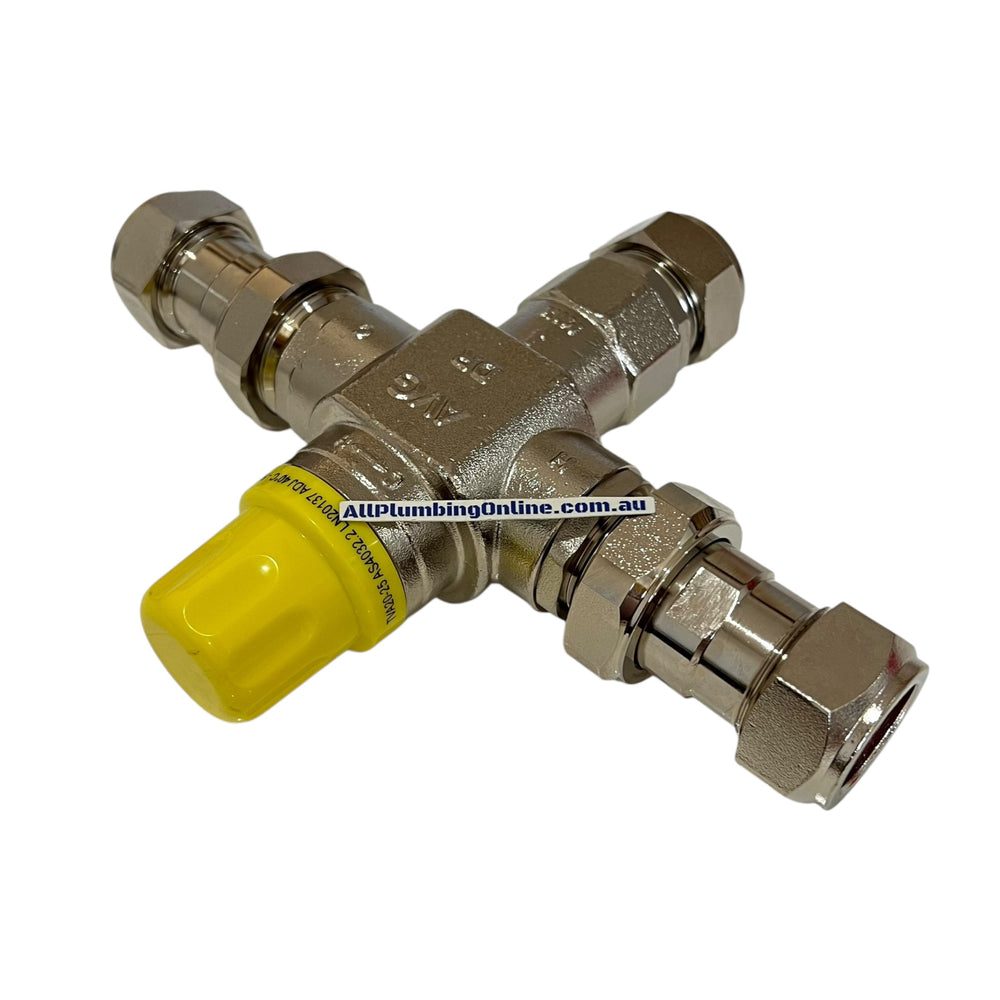

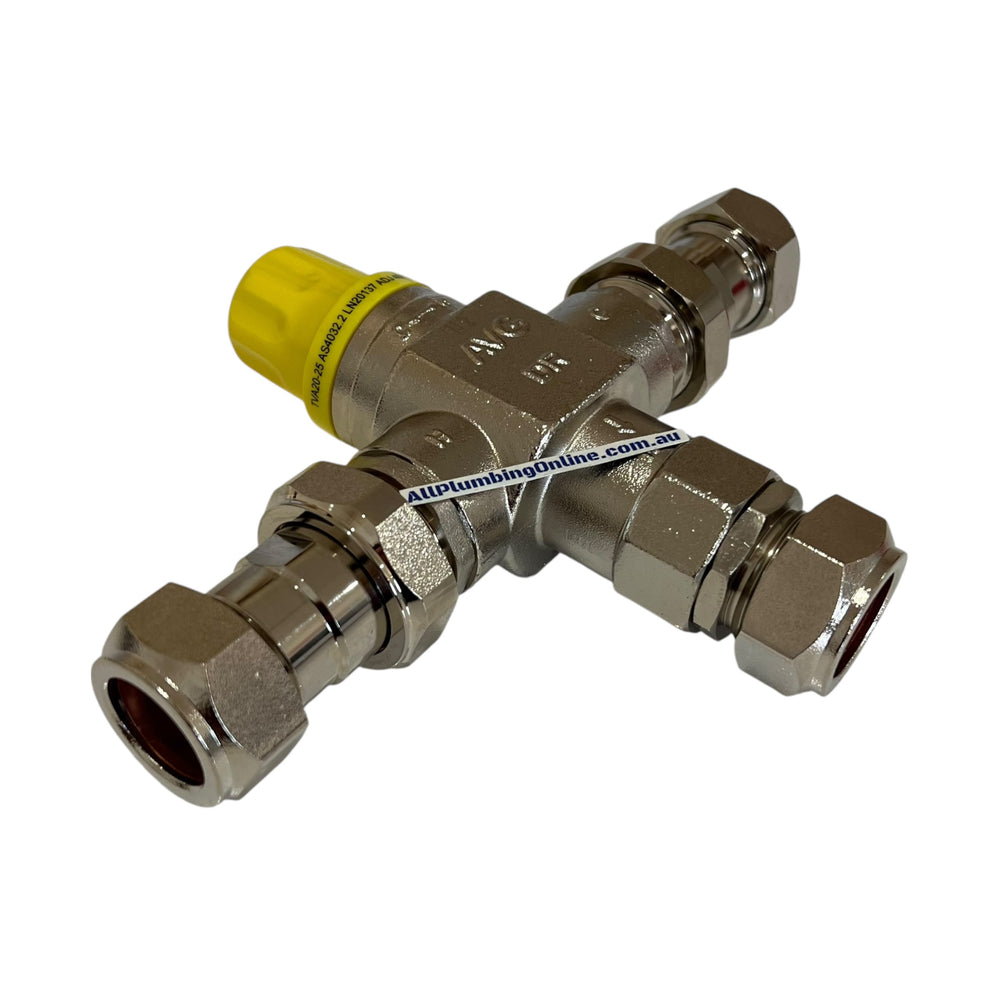

AVG TVA25HF 25mm HI-FLO Commercial Tempering Mix Valve

Overview

AVG TVA25HF HI-FLOW commercial tempering valve has BSP 25mm 1" compression fittings at all three ends and features copper olives. Australian Watermark Approved. The tempering valve's higher flow rate valve allows for increased flow at lower inlet pressures.

The TVA25HF tempering valve can automatically mix the cold and hot water inputs and outputs a steady 50 deg hot water after mixing. The commercial tempering valve is required in Australia by law in the plumbing rules as it is a safety device. Without mixing, the hot water straight from the hot water services can exceed 70 deg and can cause severe instant burns when in contact with skin. 50 deg feels hot, yet without the dangers of burning. When required, the output temperature of the tempering valve can be adjusted between 40-50 deg.

Technical Details

• Brand: Australian Valve Group (AVG)
• Model: TVA25HF
• Thread Size: 1" (25mm) BSP Compression with Copper Olives (25C x 25C x 25C)

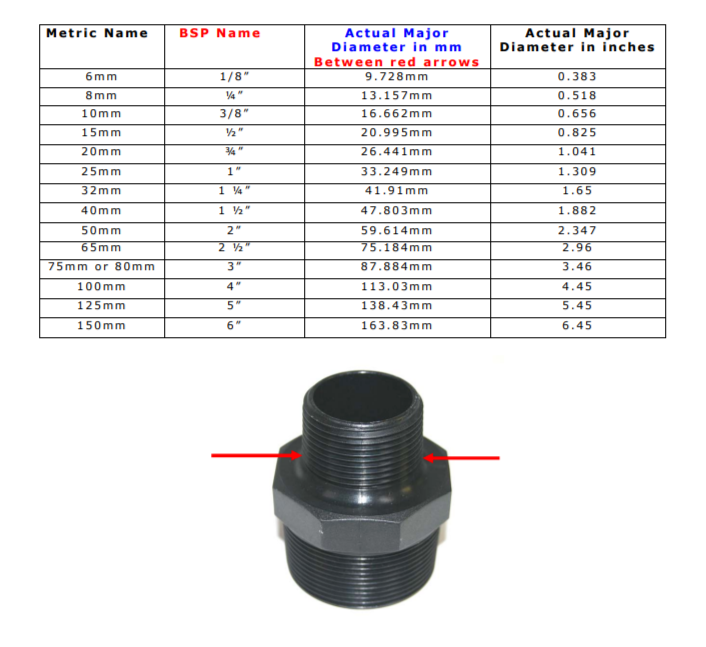

• Physical Thread Measurement: 33.249mm internal/external thread diameter (Refer to the BSP sizing chart in the photo gallery)

• Material: DR Brass Body
• Maximum Hot Water Supply Temperature: 85 deg
• Adjustable Outlet Temperature: 40-50 deg
• Set Temperature: 50 deg Standard (Must be commissioned on site by installer)
• Accuracy of Outlet Temperature: +3 deg (Tested as per AS4032.2)
• Minimum Temperature Differential: 10 deg
• Maximum Working Pressure: 1000Kpa (Static) and 500Kpa (Dynamic)
• Pressure Supply Differential: 2:1 Maximum
• Maximum Permitted Pressure Variation: ±10%
• Minimum Flow Rate: 4L/Min

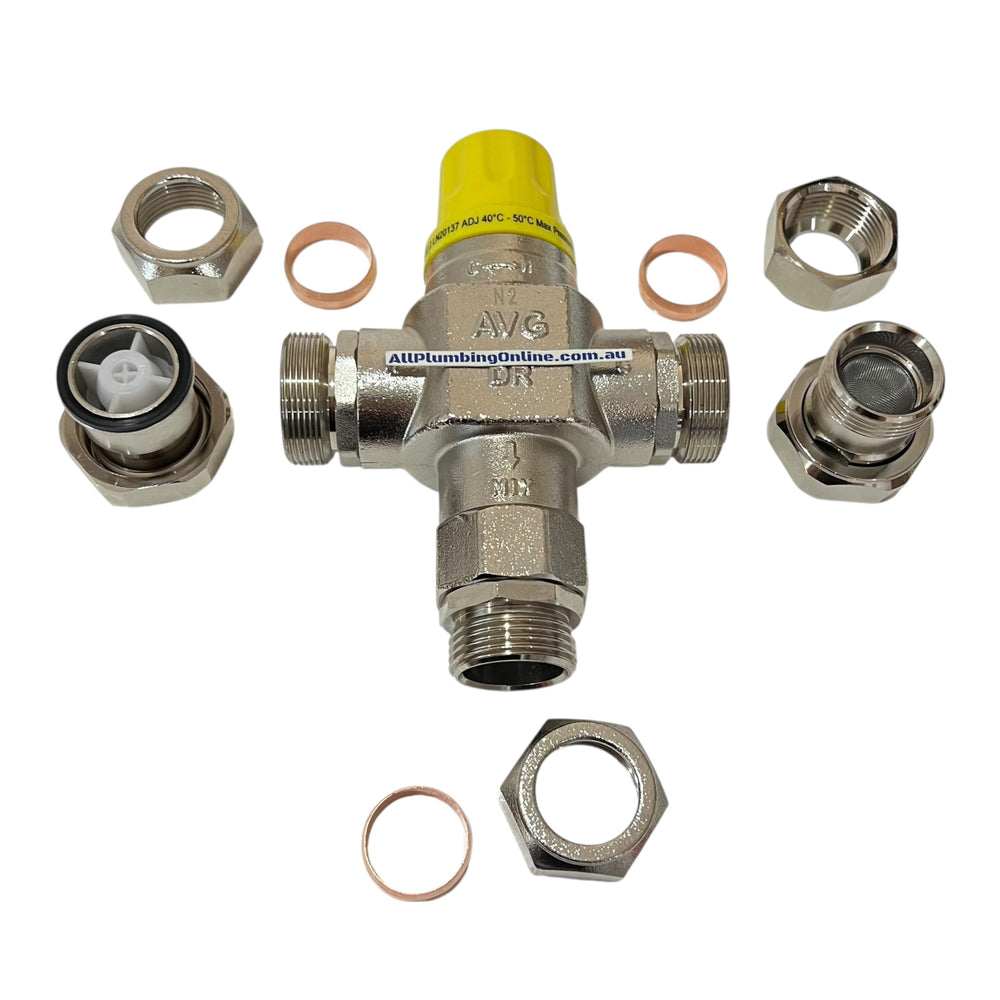

• Features: High temperature resistance, tamper-proof adjustment, integrated strainers and check valves, insulation jacket included
• Intended Use: Commercial use where more flow is required at lower pressures.
• SKU: AVG-TVA25HF
