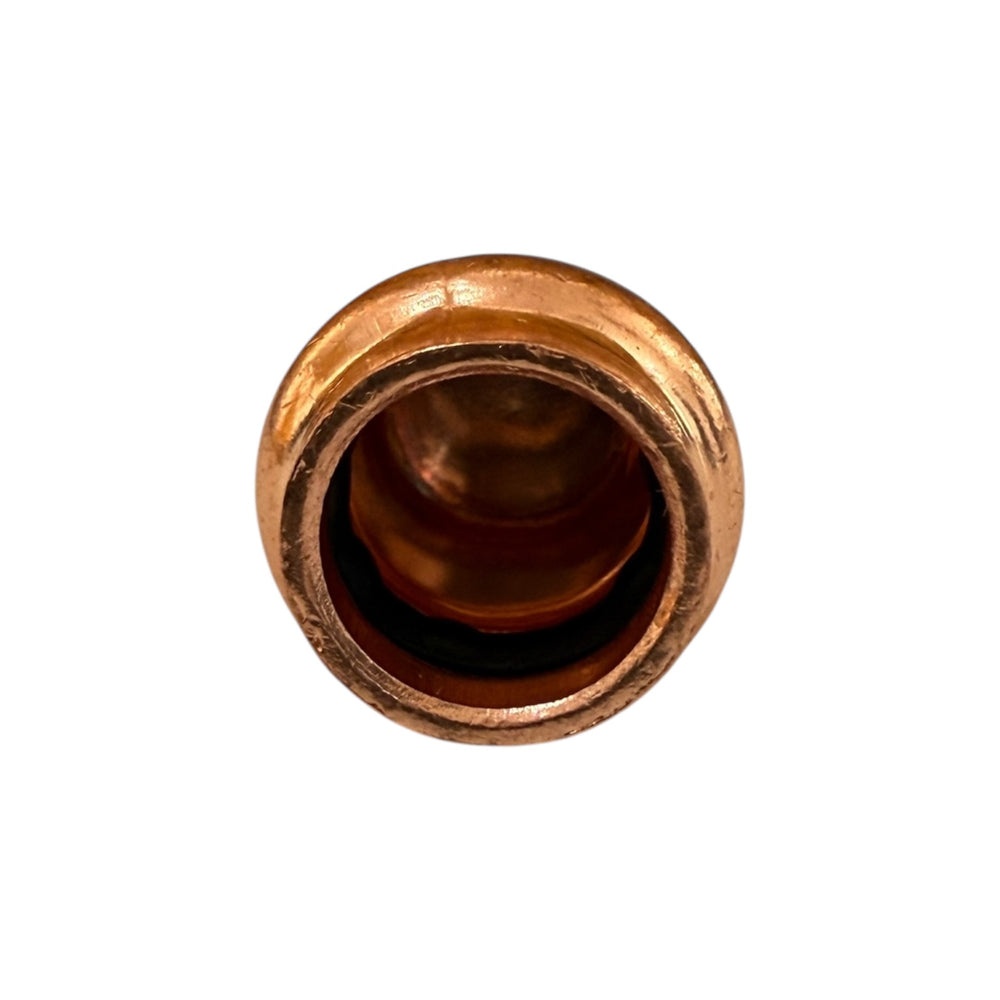

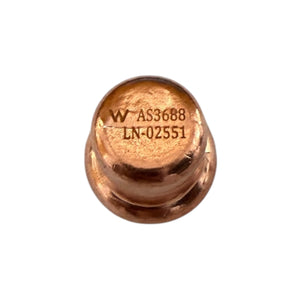

APO Metpress PWCEC15 Copper Water Press Fitting 15mm End Cap


Overview:
The APO PWCEC15 15mm 1/2" Copper Water Press End Cap (DN15) is compatible with all major copper press systems, including Viega, Connex Banninger B Press, and Kembla Kempress. This press-fit end cap is designed for sealing off copper pipe ends in potable water installations and works with all standard copper press tools.

The APO copper press end cap features a lip to help align the press tool accurately and ensure a strong seal. Fitted with a black EPDM O-ring, it is suitable for potable water systems with a temperature range of -20°C to 110°C and a maximum pressure of 1600 kPa. The fitting uses a slug-fit design to stay in place on the pipe before pressing, allowing easy and precise adjustments during installation. Once pressed, it forms a tamper-free, permanent joint without damaging the internal pipe wall, ensuring smooth water flow.


Technical Details:
•    Manufacturer: APO
•    Model: PWCEC15
•    Size: DN15 (15mm / 1/2")
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    Materials: Copper, EPDM O-ring
•    Intended Use: Sealing off water copper pipe ends
•    SKU: PWCEC15


Package Contents:
•    Single APO PWCEC15 15mm Copper Press Water End Cap
•    Package Weight: 18g
