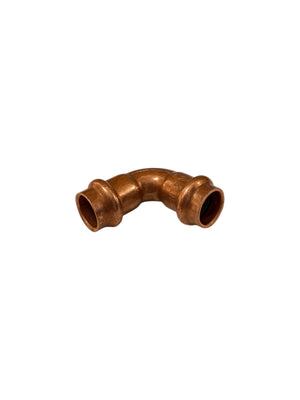

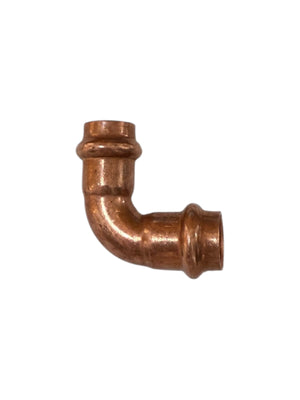

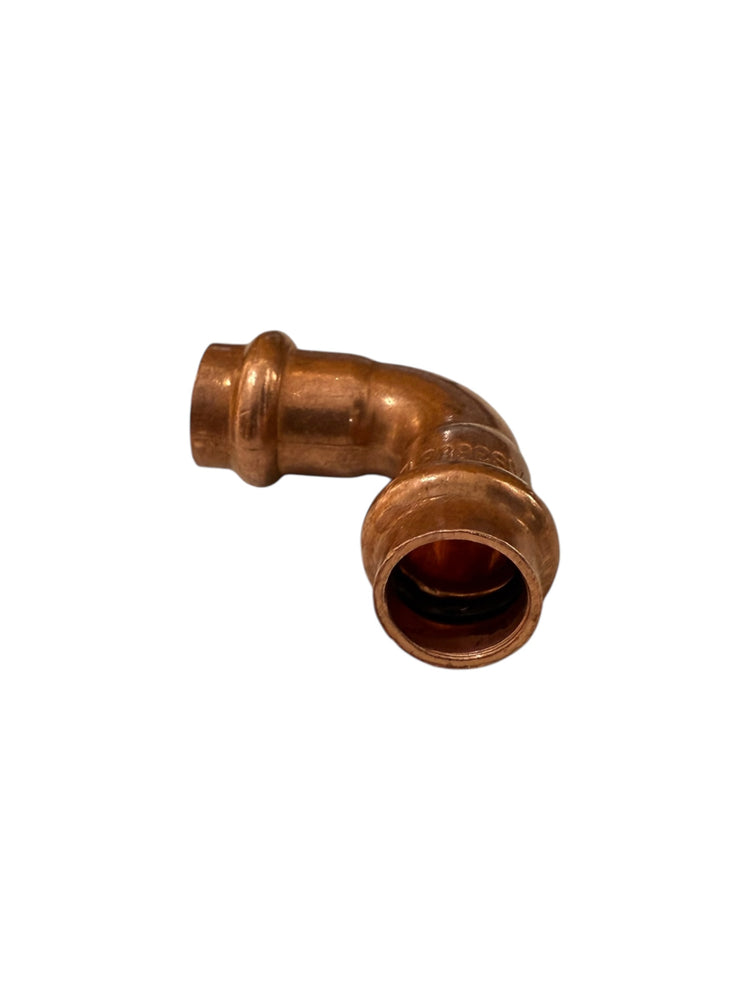

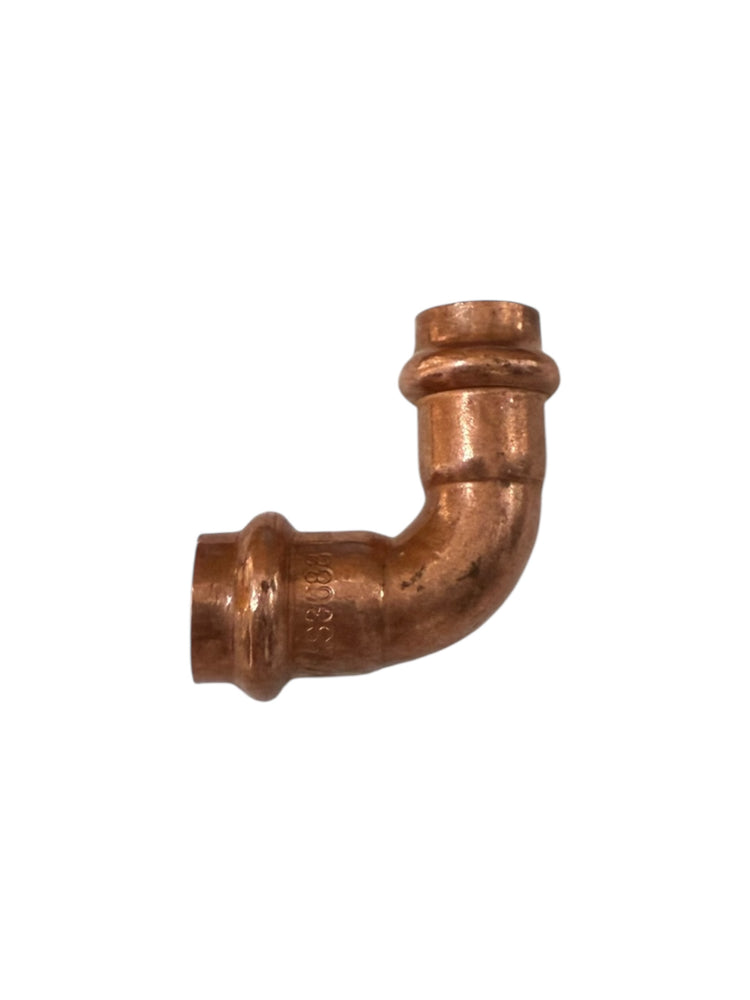

APO PWCE15 Copper Water Press Fitting 15mm 90 Deg Elbow F*F

Overview:
The APO PWCE15 15mm Copper Water Press 90° Elbow (DN15) is compatible with all major copper press systems, including Viega, Connex Banninger B Press, and Kembla Kempress. This F*F 90-degree elbow is used to create a clean right-angle turn in copper pipework for potable water systems and fits all standard copper press tools.

Each APO elbow fitting features a lip at both ends to guide press tool placement and ensure a secure, watertight seal. Fitted with a black EPDM O-ring, the fitting supports potable water applications with a temperature range of -20°C to 110°C and a maximum pressure of 1600 kPa. Its slug-fit design allows the fitting to stay in place before pressing, enabling easy positioning and adjustment. Once pressed, the elbow forms a tamper-free, permanent joint without distorting the pipe’s interior, ensuring smooth water flow through the 90° bend.


Technical Details:
•    Manufacturer: APO
•    Model: PWCE15
•    Size: DN15 (15mm / 1/2")
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    Materials: Copper, EPDM O-ring
•    Suitable for AS1432 Type A and B copper tubes (hard, half hard, or annealed)
•    Intended Use: Joining water copper pipes at a 90-degree angle
•    SKU: PWCCE15


Package Contents:
•    Single APO PWCE15 15mm Copper Press Water 90° Elbow (F*F)
•    Package Weight: 34g
