APO PWCE20 Copper Water Press Fitting 20mm 90 Deg Elbow F*F


Overview:

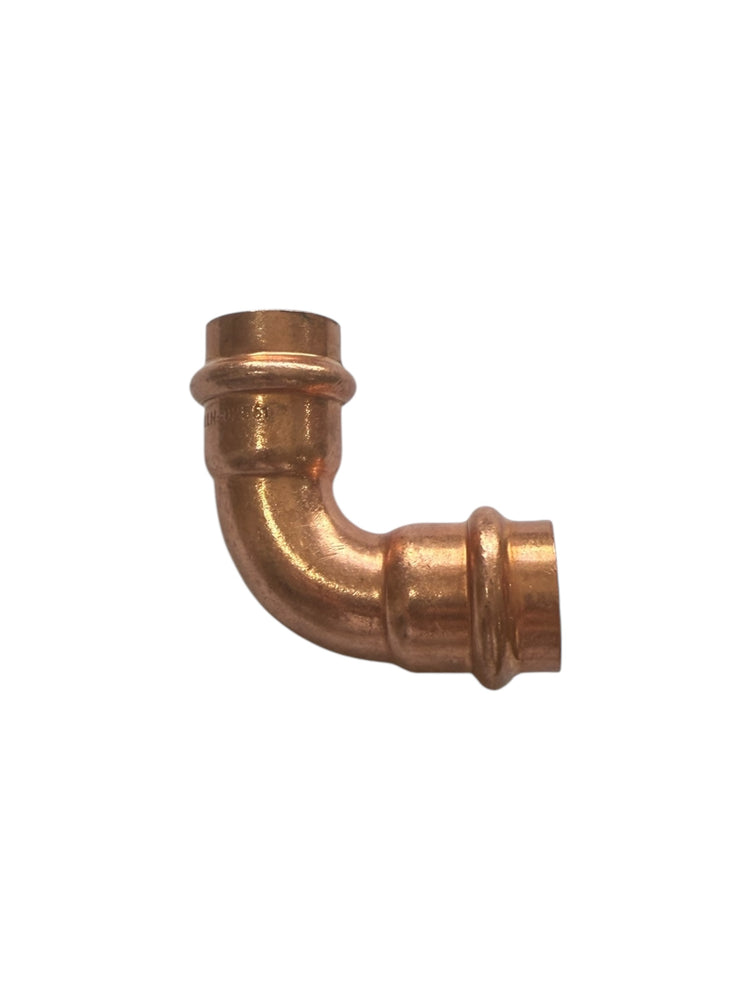

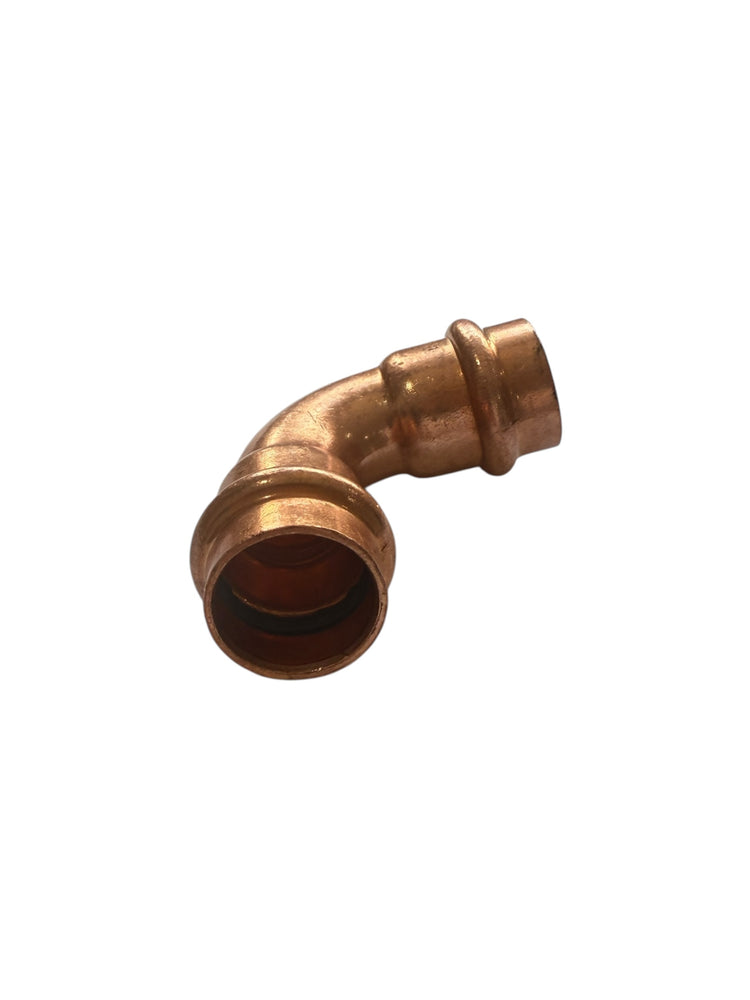

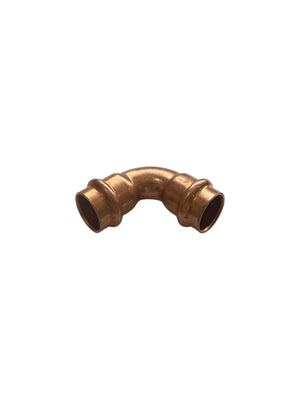

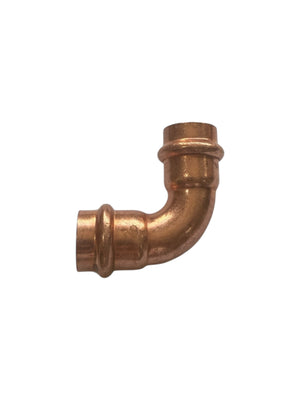

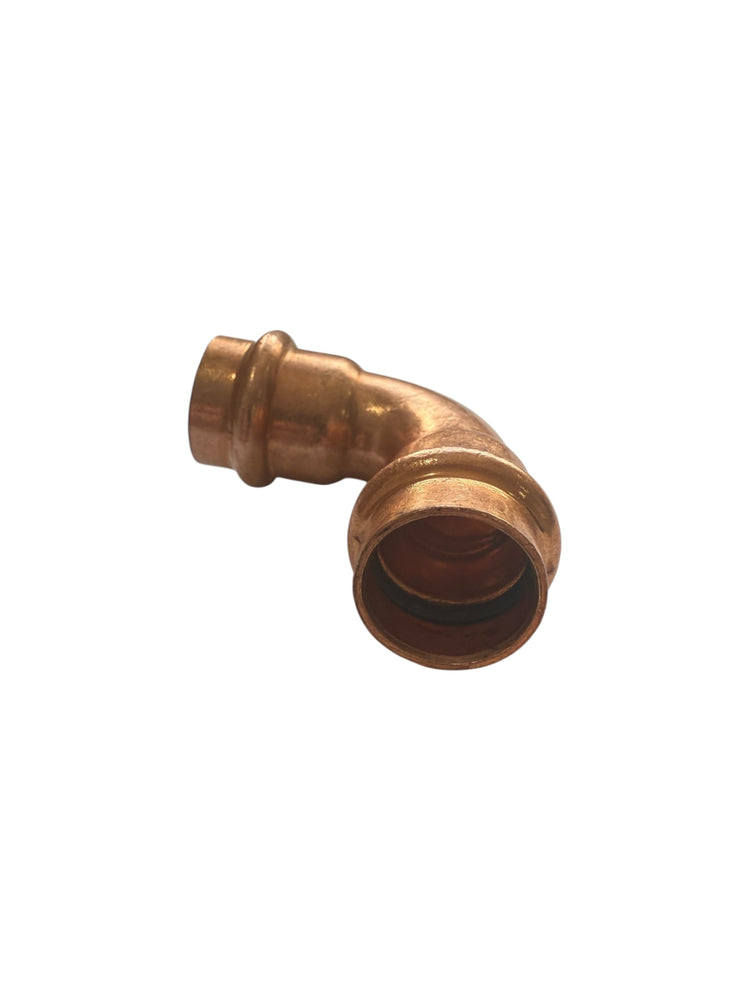

The APO PWCE20 20mm Copper Water Press 90° Elbow (DN20) is compatible with all major copper press systems, including Viega, Connex Banninger B Press, and Kembla Kempress. This female-to-female 90-degree elbow fitting is designed to create clean right-angle turns in potable water copper pipework using standard copper press tools.

Each APO press elbow includes lips at both ends to assist with proper press tool alignment and provide a reliable sealing surface. The integrated black EPDM O-rings are suitable for potable water applications with a temperature range of -20°C to 110°C and a maximum pressure of 1600 kPa. The slug-fit design allows the fitting to remain in place before pressing, enabling easy installation and alignment. Once pressed, it forms a secure, tamper-free joint without deforming the internal copper pipe, ensuring unrestricted water flow through the bend.

Technical Details:
•    Manufacturer: APO
•    Model: PWCE20
•    Size: DN20 (20mm / 3/4")
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    Materials: Copper, EPDM O-ring
•    Suitable for AS1432 Type A and B copper tubes (hard, half hard, or annealed)
•    Intended Use: Joining water copper pipes at a 90-degree angle
•    SKU: PWCE20


Package Contents:
•    Single APO PWCCE20 20mm Copper Press Water 90° Elbow (F*F)
•    Package Weight: 64g
