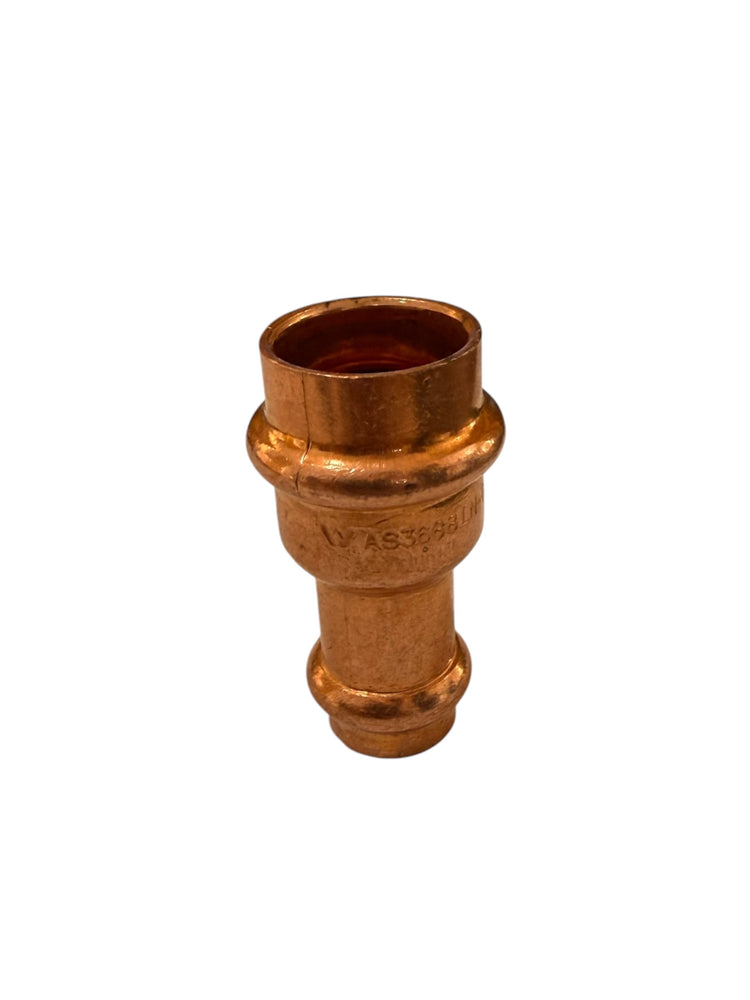

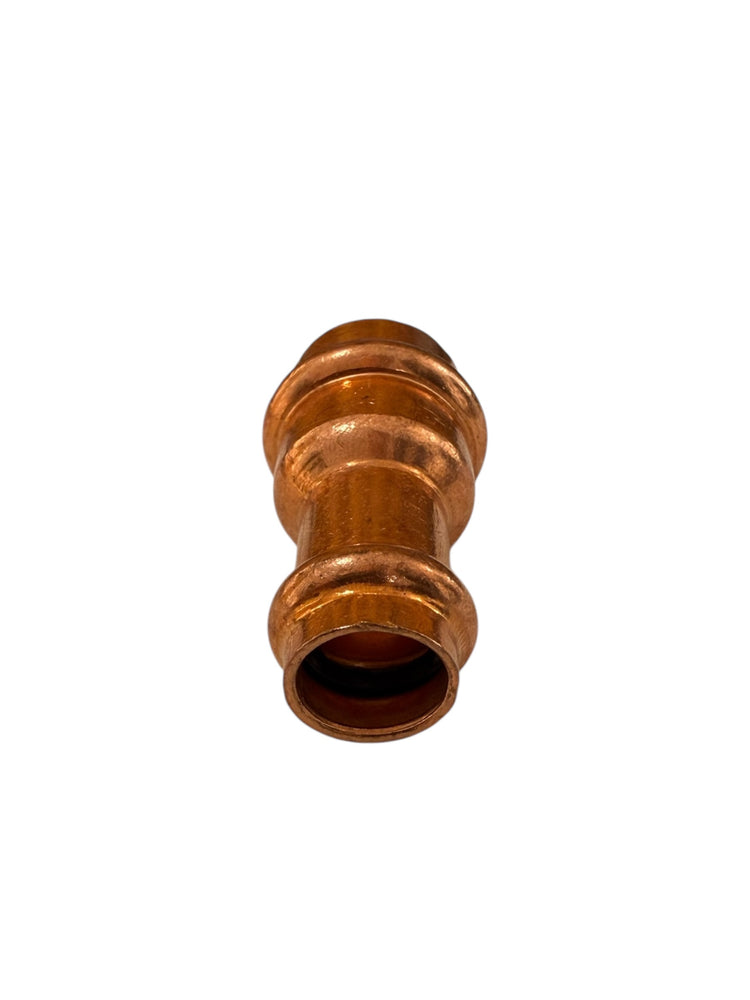

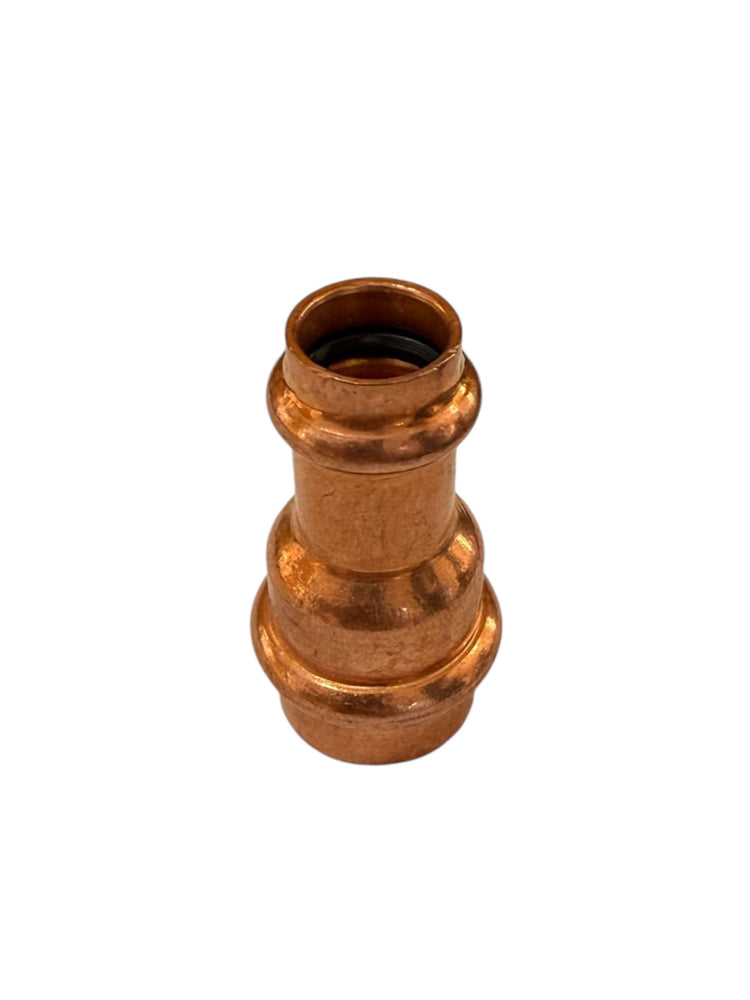

APO PWCRC15 Copper Water Press Fitting 20-15mm Reducing Coupling

Overview:
The APO PWCRC15 20mm–15mm (1"–1/2") Copper Water Press Reducing Coupling (DN20–DN15) is compatible with all major copper press systems, including Viega, Connex Banninger B Press, and Kembla Kempress. This reducing press coupling is designed for joining two copper pipes of different sizes in potable water systems and works with all standard copper press tools.

Each APO reducer features a lip at both ends to guide press alignment and ensure a secure seal. Fitted with black EPDM O-rings, it is suitable for potable water applications with a maximum working pressure of 1600 kPa and a temperature range of -20°C to 110°C. The slug-fit design keeps the fitting in place before pressing, making installation quick and easy. Once pressed, it forms a tamper-free, permanent connection without damaging the internal pipe surface, ensuring smooth water flow.


Technical Details:
•    Manufacturer: APO
•    Model: PWCRC15
•    Size: DN05 – DN15 (20mm – 15mm / 1" – 1/2")
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    Materials: Copper, EPDM O-ring
•    Suitable for AS1432 Type A and B copper tubes (hard, half hard, or annealed)
•    Intended Use: Joining a DN20 copper pipe to a DN15 copper pipe
•    SKU: PWCRC15


Package Contents:
•    Single APO PWCRC15 20mm–15mm Copper Press Water Reducer Coupling
•    Package Weight: 39g
