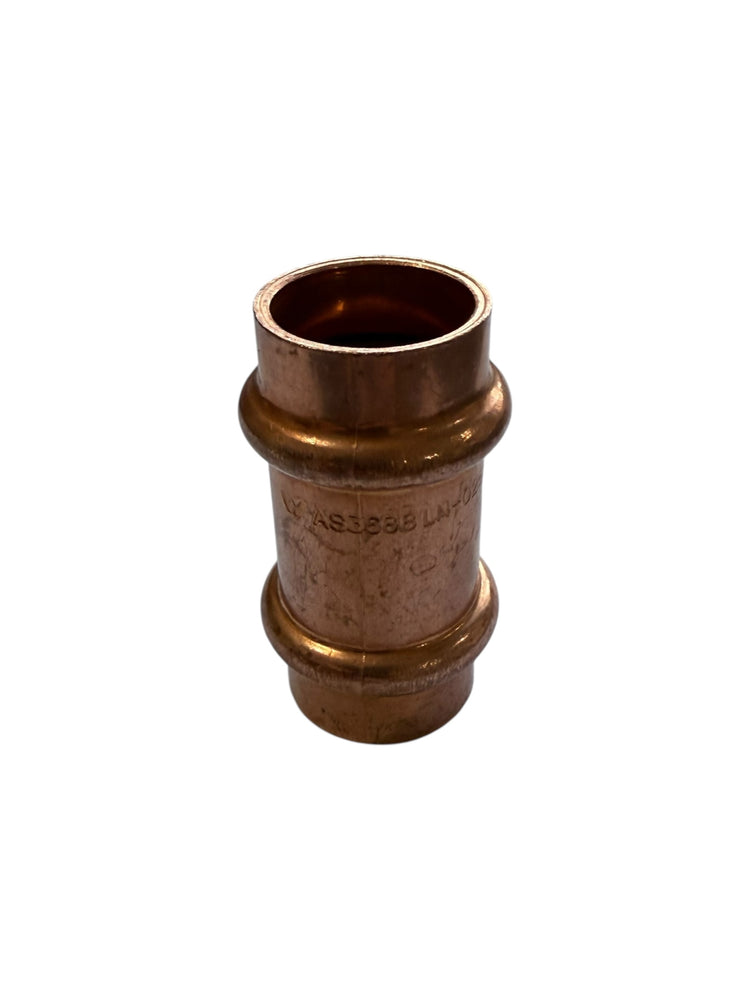

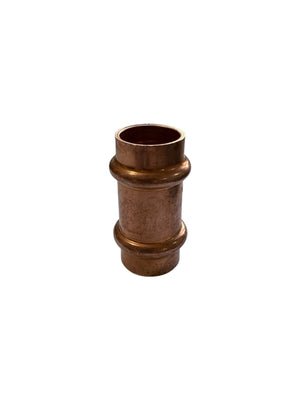

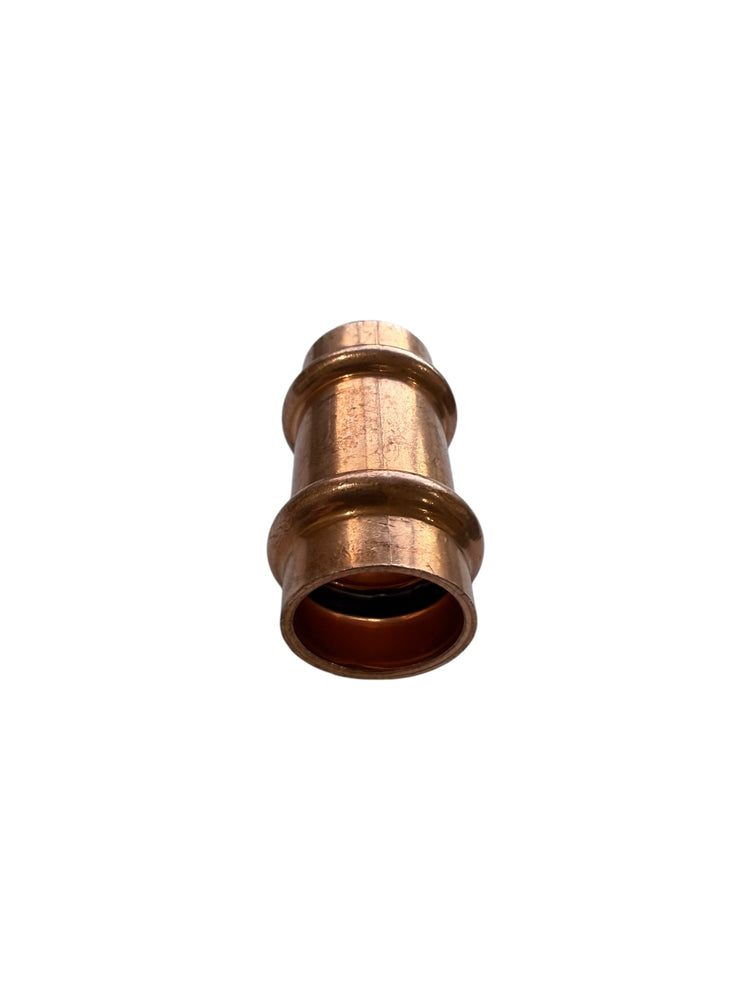

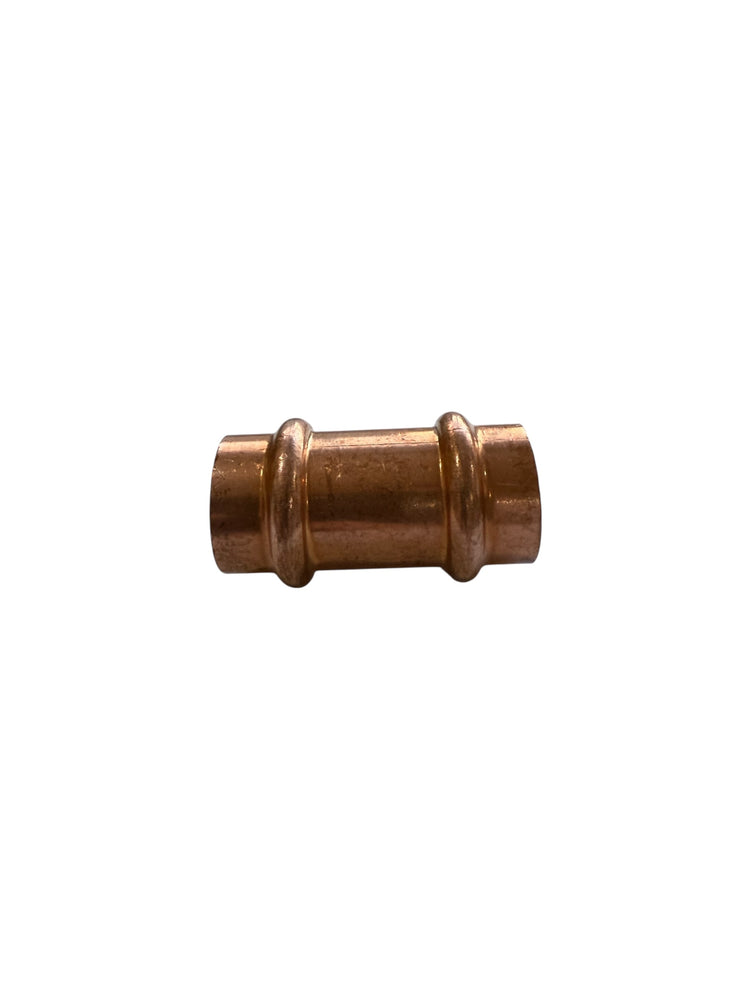

APO PWCSRC20 Copper Water Press Fitting 20mm Slip Coupling Union


Overview:

The APO PWCSRC20 Copper Water Press Slip Repair Coupling (DN20) is designed for efficient and reliable repairs of copper water pipes. Compatible with all major press systems and tools, this crimp socket union is ideal for situations where a standard coupling with a centre stop cannot be used.

Unlike standard couplings, this slip repair fitting has no internal stop, allowing it to slide freely along the pipe for easy positioning during repair work. Lips at both ends help guide the press tool for accurate alignment and ensure a reliable seal. Fitted with a black EPDM O-ring, the coupling is suitable for potable water systems with a maximum working pressure of 1600 kPa and a temperature range of -20°C to 110°C. Its slug-fit design keeps it in place before pressing, and once pressed, the joint forms a secure, watertight, non-deforming seal.

Technical Details:
•    Manufacturer: APO
•    Model: PWCSRC20
•    Size: DN20, 20mm
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    Materials: Copper, EPDM O-ring

Package Contents:
•    1 × APO PWCSRC20 20mm Copper Press Slip Coupling
•    Package Weight: 44g
