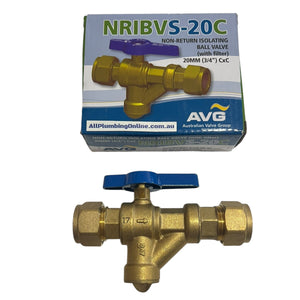

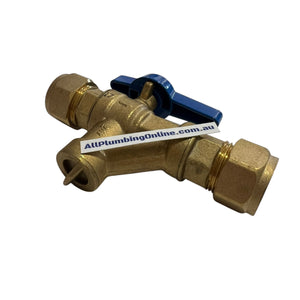

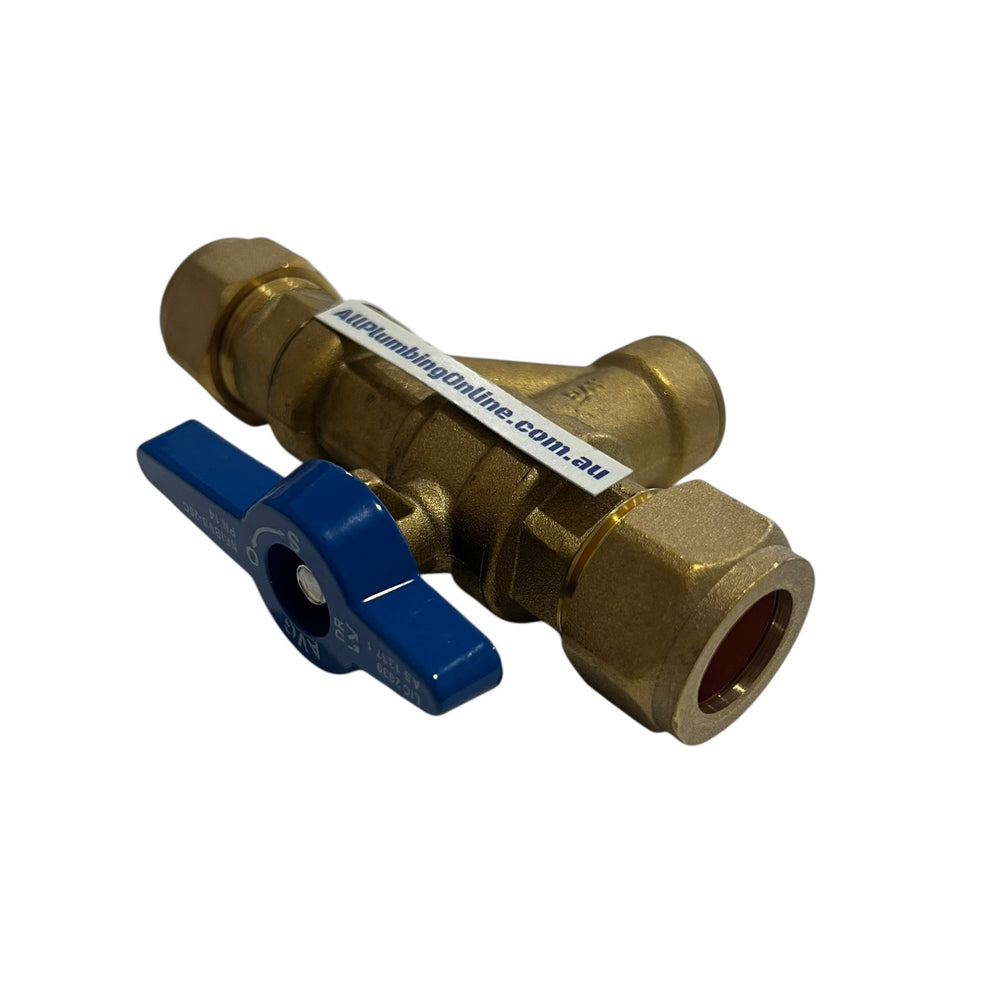

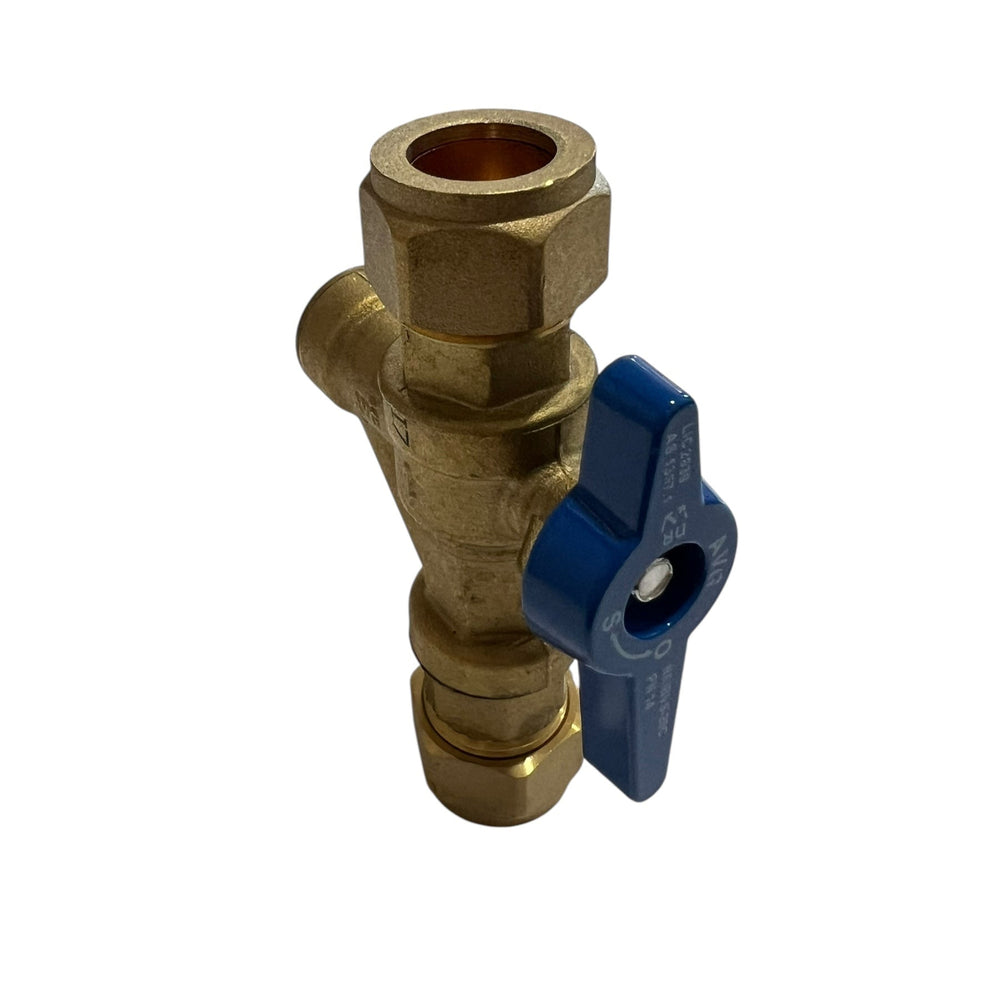

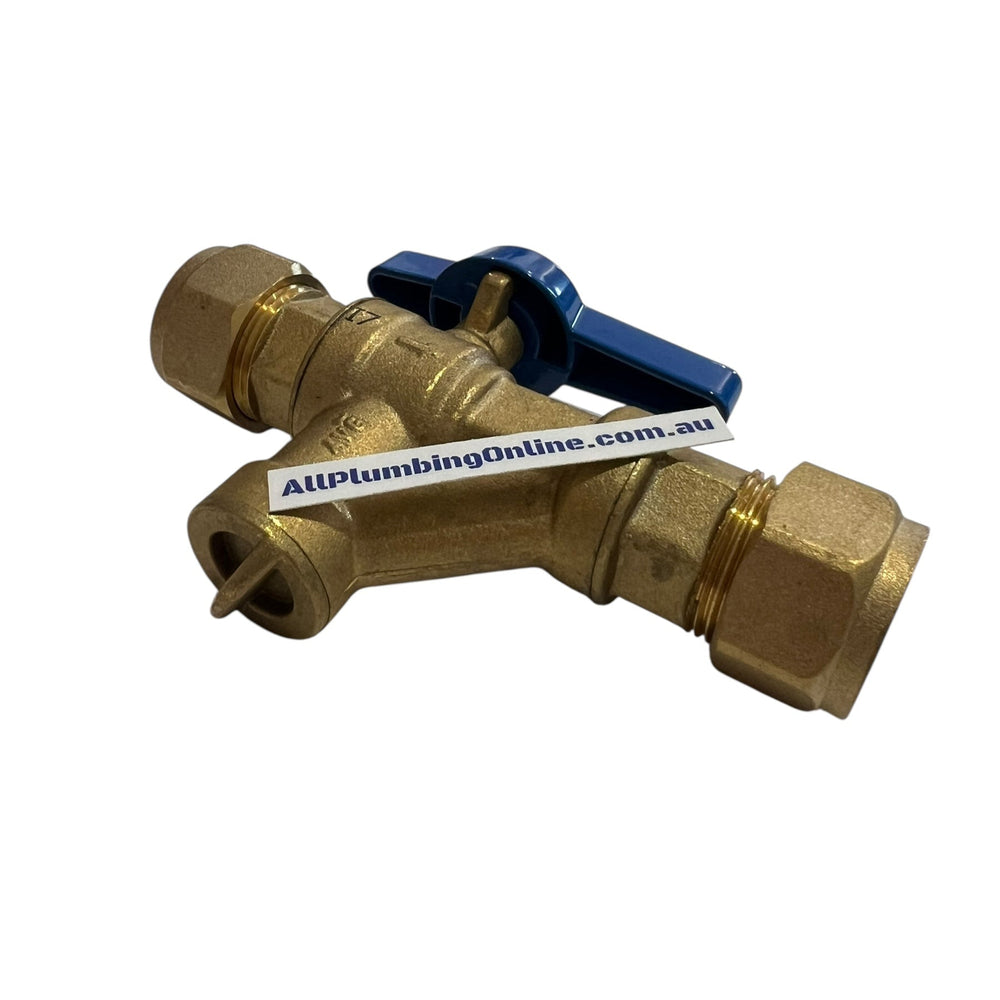

AVG NRIBVS-20C Male Compression 20mm Non Return Isolation Filter Strainer Duo Valve

Overview

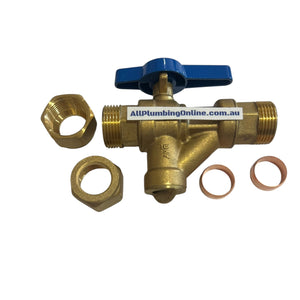

AVG NRIBVS-20C 20mm ¾” male compression non-return isolation filter strainer duo valve is Watermark approved and supplied with copper olives. The non return isolation duo valve features a replaceable stainless-steel mesh, which filters debris from the water stream. Its inbuilt one-way check valve isolates the residential hot water system from the mains supply. The durable metal butterfly lever can manually switch on and off the water supply with its quarter turn ball valve operation, allowing for easy maintenances and services.

Technical Details
•    Manufacturer: Australian Valve Group (AVG)
•    Model: NRIBVS-20C
•    Thread Size: ¾" BSP (20mm) Male Compression (20C x 20C)

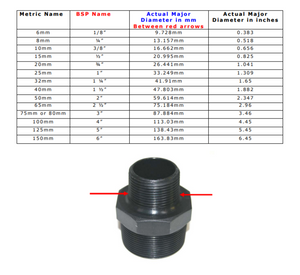

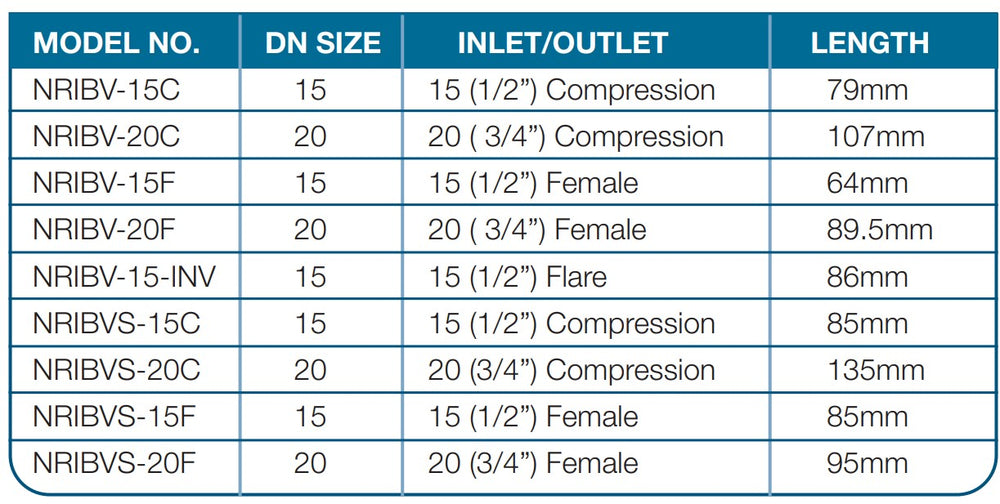

•    Physical Thread Measurement: 26.441mm male external thread (with the cone nuts removed); Refer to the BSP sizing chart in the photo gallery
•    Material: DR Brass Body
•    Features: Replaceable stainless-steel mesh filter strainer; Quarter turn ball valve operation with metal butterfly handle
•    Australian Watermark Approved
•    Working temperature: 1°C to 85°C
•    Maximum pressure rating: 1400 KPa
•    Intended Use: Hot water service isolation
•    SKU: AVG-NRIBVS-20C

Package Contents
•    AVG-NRIBVS-20C non-return isolation duo valve
•    Package Weight: 470g
