AVG NRIBVS-20F Female 20mm Non Return Isolation Filter Strainer Duo Valve

Overview
AVG NRIBVS-20F 20mm ¾” Female non-return isolation filter strainer duo valve is Watermark approved. The non return isolation duo valve features a replaceable stainless-steel mesh, which filters debris from the water stream. Its inbuilt one-way check valve isolates the residential hot water system from the mains supply. The durable metal butterfly lever can manually switch on and off the water supply with its quarter turn ball valve operation, allowing for easy maintenances and services.

Technical Details

• Manufacturer: Australian Valve Group (AVG)
• Model: NRIBVS-20F
• Thread Size: ¾" BSP (20mm) Female (20FI x 20FI)

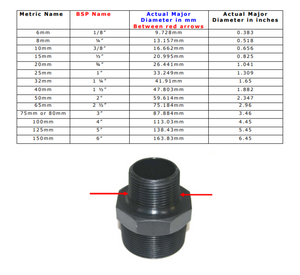

• Physical Thread Measurement: 26.441mm Female Internal thread; Refer to the BSP sizing chart in the photo gallery
• Material: DR Brass Body
• Features: Replaceable stainless-steel mesh filter strainer; Quarter turn ball valve operation with metal butterfly handle
• Australian Watermark Approved
• Working temperature: 1°C to 85°C
• Maximum pressure rating: 1400 KPa
• Intended Use: Hot water service isolationBall Valve
• SKU: AVG-NRIBVS-20F

Package Contents

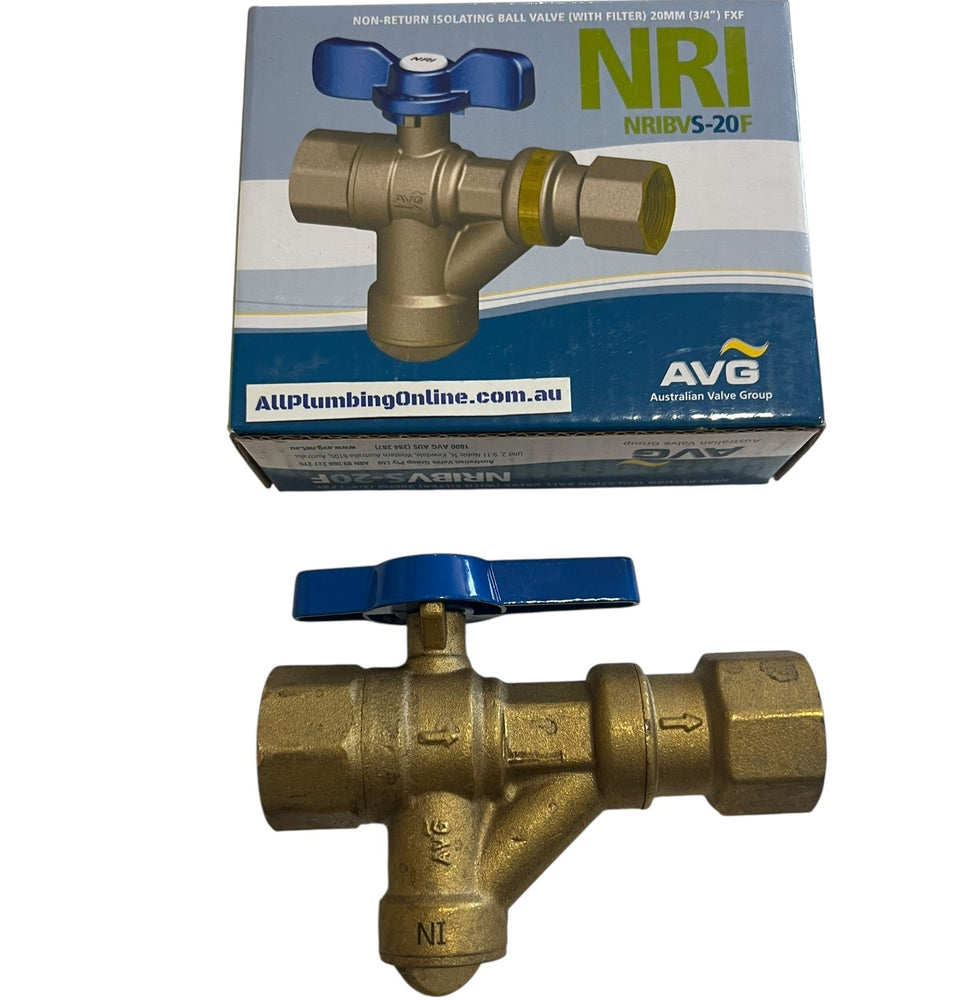

• AVG-NRIBVS-20F non-return isolation duo valve
• Package Weight: 420g
