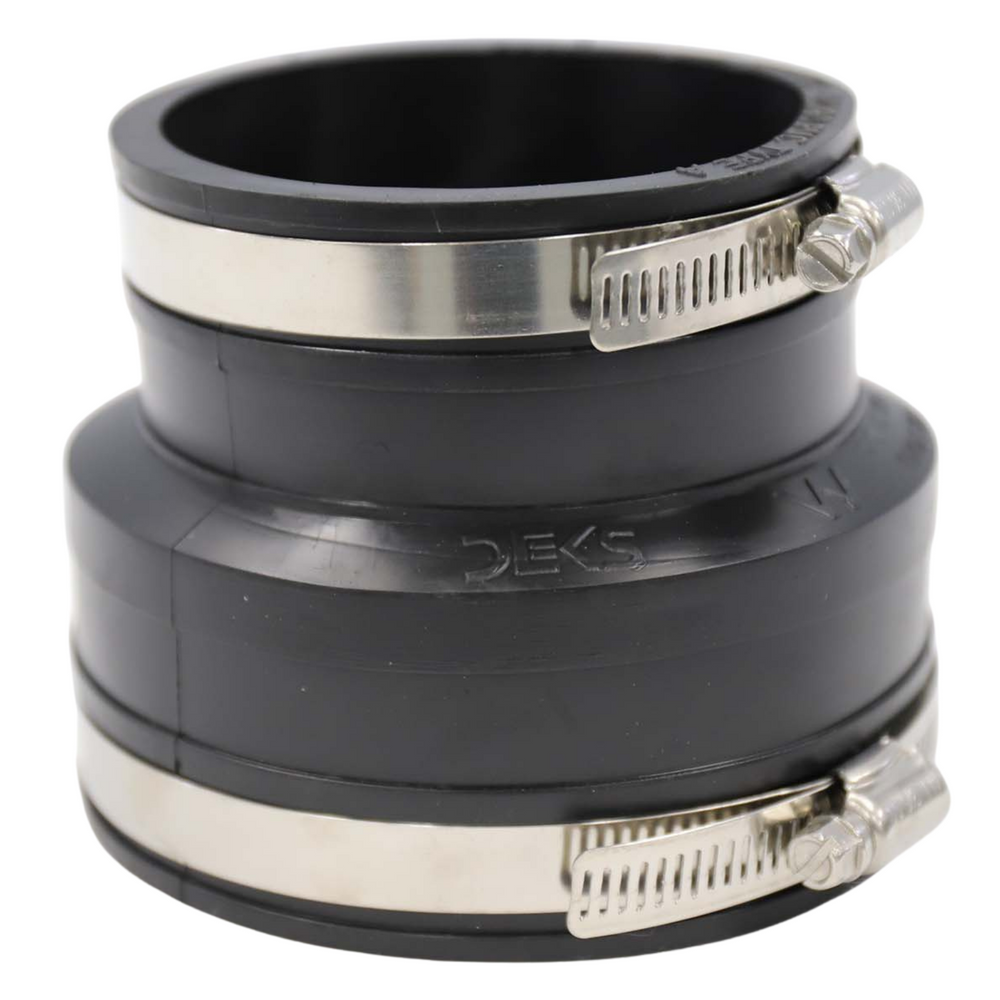

Deks 6050 EPDM Joiner Reducer Coupling DN100 to DN80/90

Overview:
The Deks 6050 Black EPDM Rubber Joiner Reducer Coupling is designed to connect DN100 PVC pipes (OD 105–112mm) to DN80/90 stormwater pipes (OD 83–94mm) in non-pressure applications such as drain and soil waste systems. Made from a highly flexible rubber polymer and fitted with 316 stainless steel adjustable bands, this joiner provides exceptional durability and reliable performance. It is Australian Watermark Approved and complies with AS/NZS 4327, giving plumbers peace of mind. Not suitable for potable water. DEKS offers a full range of reducer couplings and rubber joiners for pipe sizes ranging from DN32 to DN100. These reducer couplings are an economical and practical solution for residential and commercial pipe connections involving different outside diameters.

Technical Details:
• Manufacturer: Deks
• Model: 6050
• Material: EPDM Rubber, 316 Stainless Steel Bands
• Connection Type: PVC to Stormwater Reducer
• Pipe Size Compatibility: DN100 PVC (105–112mm OD) to DN80/90 Stormwater (83–94mm OD)
• Max Temperature: Continuous: 38°C – Intermittent: 60°C
• Weight: 419

Dimensions:
• DN100 End Outer Diameter: 126.1mm
• DN80/90 End Outer Diameter: 105.6mm
• Length: 101mm
• Band Width: 12.7mm

Package Contents
• Deks 6050
• Weight: 419
