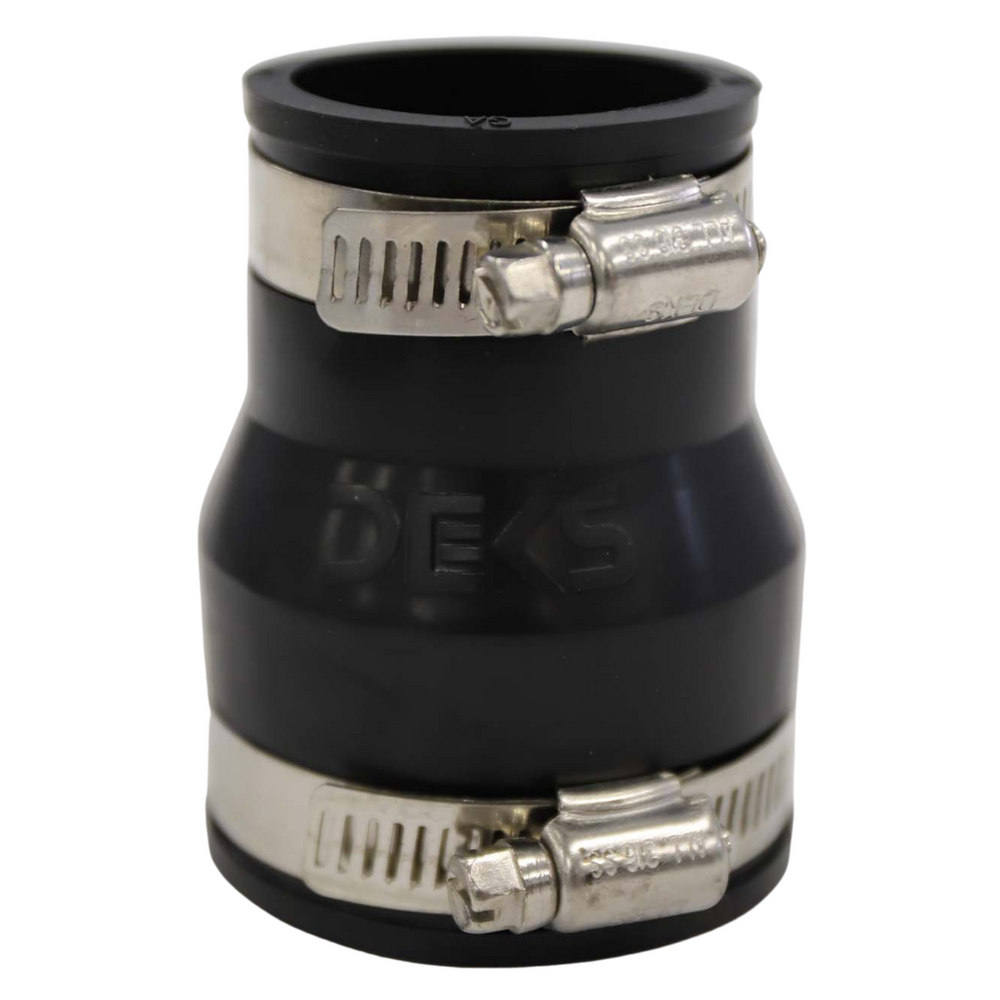

Deks 6056 EPDM Joiner Reducer Coupling DN50 to DN40

Overview:
The Deks 6056 Black EPDM Rubber Joiner Reducer Coupling is designed to connect DN50 PVC pipes (OD 50–61mm) to DN40 PVC pipes (OD 38–46mm) in non-pressure applications such as drains and soil waste systems. Made from a highly flexible rubber polymer and fitted with 316 stainless steel adjustable bands, this joiner offers exceptional durability and flexibility. It is Australian Watermark Approved and complies with AS/NZS 4327, providing plumbers with peace of mind. Not suitable for potable water. DEKS provides a full range of reducer couplings and rubber joiners to suit pipe sizes from DN32 to DN100. These reducer couplings are an economical and effective solution for residential and commercial pipe connections involving different outside diameters.

Technical Details:
• Manufacturer: Deks
• Model: 6056
• Material: EPDM Rubber, 316 Stainless Steel Bands
• Connection Type: PVC to PVC Reducer
• Pipe Size Compatibility: DN50 PVC (50–61mm OD) to DN40 PVC (38–46mm OD)
• Max Temperature: Continuous: 38°C – Intermittent: 60°C
• Weight: 150g

Dimensions:
• DN50 End Outer Diameter: 66.3mm
• DN40 End Outer Diameter: 53.4mm
• Length: 86mm
• Band Width: 12.7mm

Package Contents:
• Deks 6056 Joiner
• Weight: 150g
