AW

SKU: AW-SP20

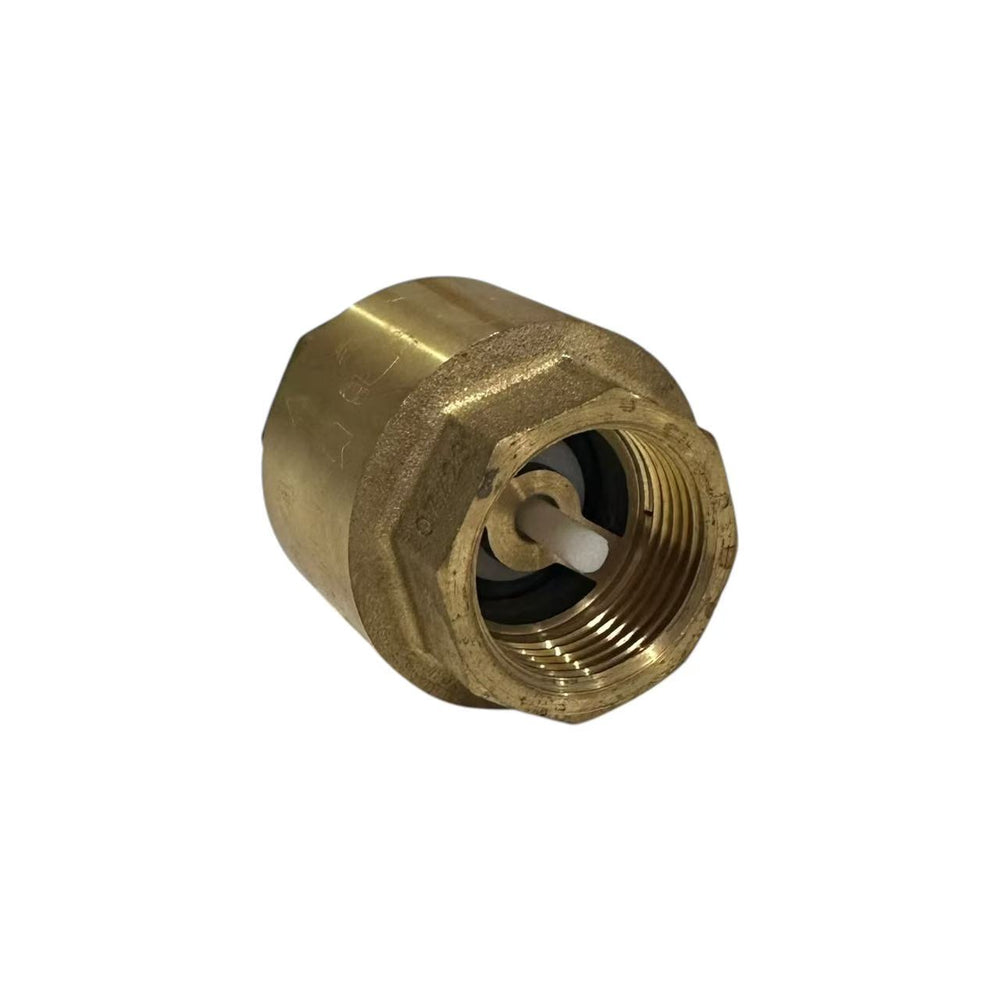

AW 20mm SP20 Brass Spring Loaded Non Return One Way Check Valve

  • - 0%
    • $10.00
    ( / )
    Tax included. Shipping calculated at checkout.
    Click here to be notified by email when AW 20mm SP20 Brass Spring Loaded Non Return One Way Check Valve becomes available.

    Overview

    AW (Austworld) SP20 general purpose brass spring loaded non return one way check valve has BSP 20mm 3/4" female internal threads. The general purpose check valve is intended for non potable water applications only, featuring a spring loaded water seal preventing backflows. The check valve is directional with an indicative flow arrow on the valve body.



    Technical Details

    •    Manufacturer: AUSTWORLD (AW)
    •    Model: SP20
    •    Thread Size: 3/4" BSP (20mm) Female FI Thread
    •    Physical Thread Measurement: 26.441mm female internal thread; Refer to the BSP sizing chart in the photo gallery
    •    Material: Brass
    •    Features: Stainless steel spring loaded water seal
    •    Working temperature: 1°C to 60°C
    •    Maximum pressure rating: 1600 KPa
    •    Intended Use: Non potable water applications
    •    SKU: AW-SP20


    Package Contents

    •    AW SP20 non-return spring check valve
    •    Package Weight: 200g
