Deks DRF104GB-SQ 20-125mm Square Rapidflash Adhesive Base Dektite Roof Flashing

Overview

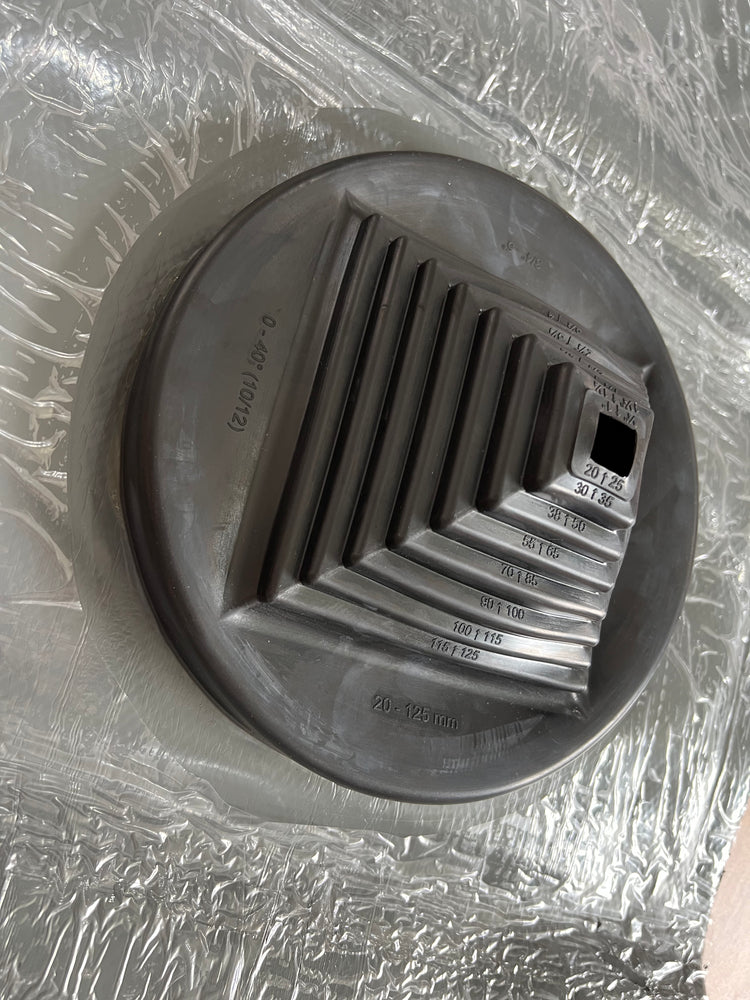

The DEKS Rapid Flash Dektite DRF104GB-SQ roof flashing is designed with a square-shaped flexible EPDM rubber cone featuring trim rings ranging from 20 mm to 125 mm (¾"–5"), which can be custom-trimmed on site. This DEKS flashing provides a superior fit and sealing profile for non-round penetrations such as carport supporting posts.

The grey Rapid Flash base measures 370 mm × 560 mm and is made from polymer rubber reinforced with aluminium mesh, allowing it to conform closely and perfectly to both metal and tile roof surfaces.

The fully adhesive base enables quick installation without the need for additional sealants or mechanical fixings. The DRF104GB-SQ Rapid Flash Dektite can be installed in approximately 50% less time than traditional metal-based flashings. The lead-free adhesive base helps keep collected rainwater safe for domestic use and free from lead contamination.

Technical Details

• Manufacturer: Deks
• Model/SKU: DRF104GB-SQ
• Dimensions:

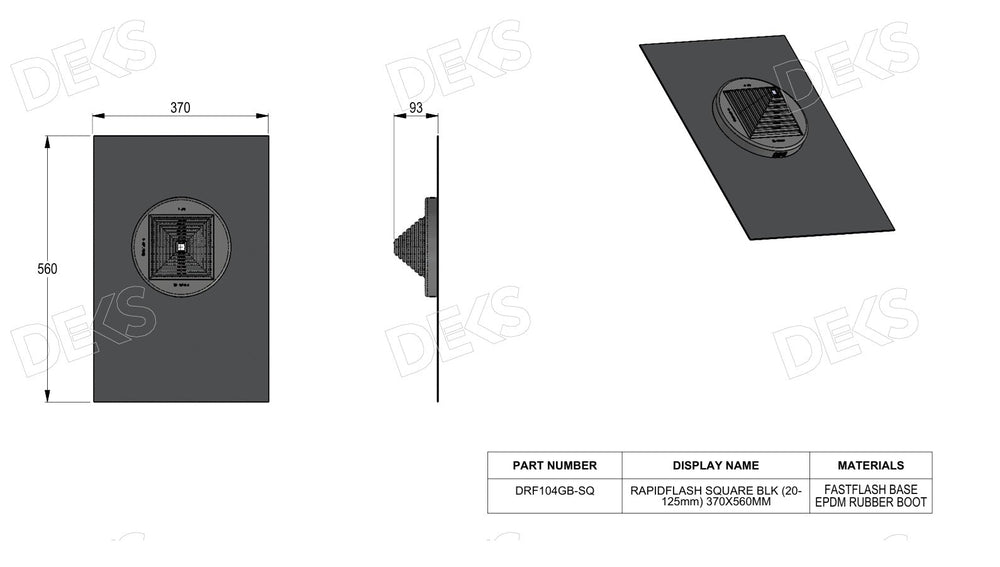

  • Base: 370 mm × 560 mm
  • Boot: 20 mm – 125 mm (¾"–5")
• Material:
  • Base: Grey polymer rubber reinforced with aluminium mesh (lead-free)
  • Boot: Black EPDM rubber
• Key Features:
  • Black square EPDM boot with guideline rings for trim-to-fit (20–125 mm)
  • Fully adhesive base for faster, cleaner installation
  • Lead-free construction; safe for rainwater collection
  • Resistant to staining, cracking, and corrosion
  • Operational temperature range −50 °C to 115 °C
  • Suitable for metal and tile roofs; recommended pitch 0°–45°
  • Can be installed in approximately 50% less time than traditional metal flashings
• Intended Use:
  • Provides a watertight seal for metal or tile roof penetrations ranging from 20 mm to 125 mm

Package Contents

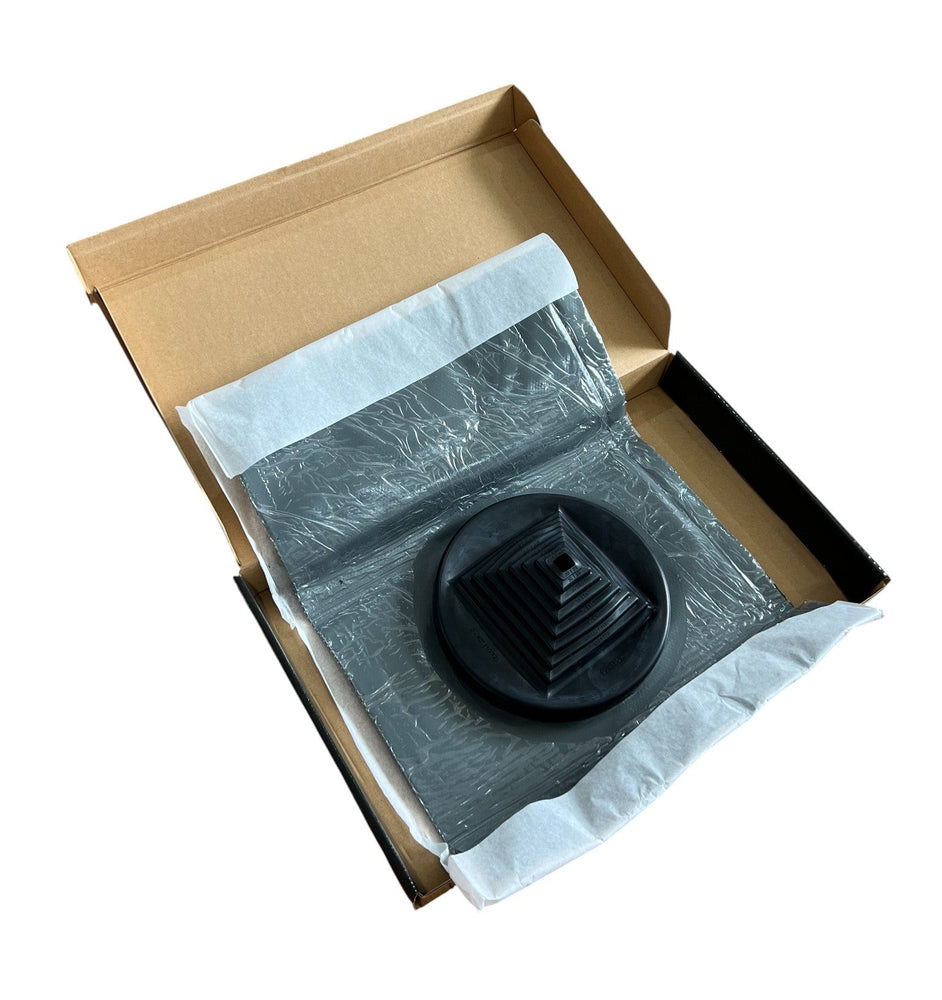

• DEKS DRF104GB-SQ Rapid Flash Dektite
• Package Weight: 1500 g
