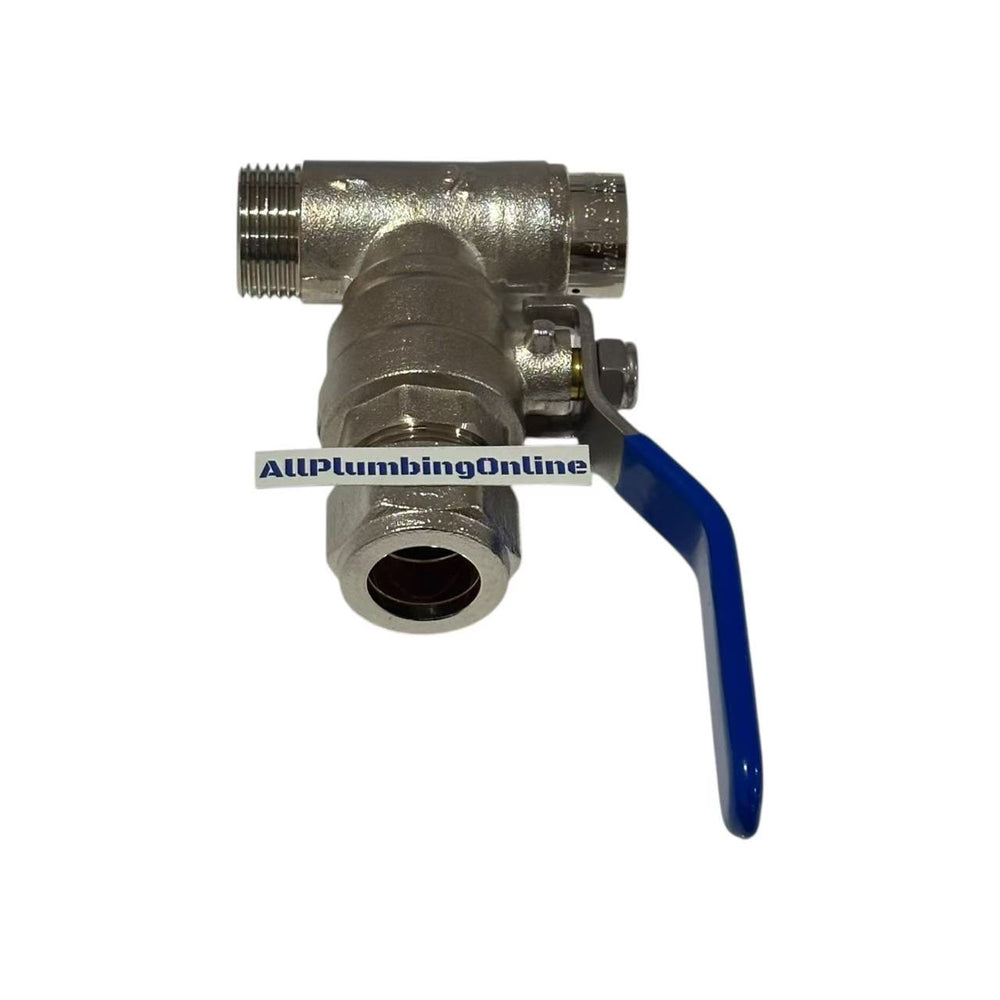

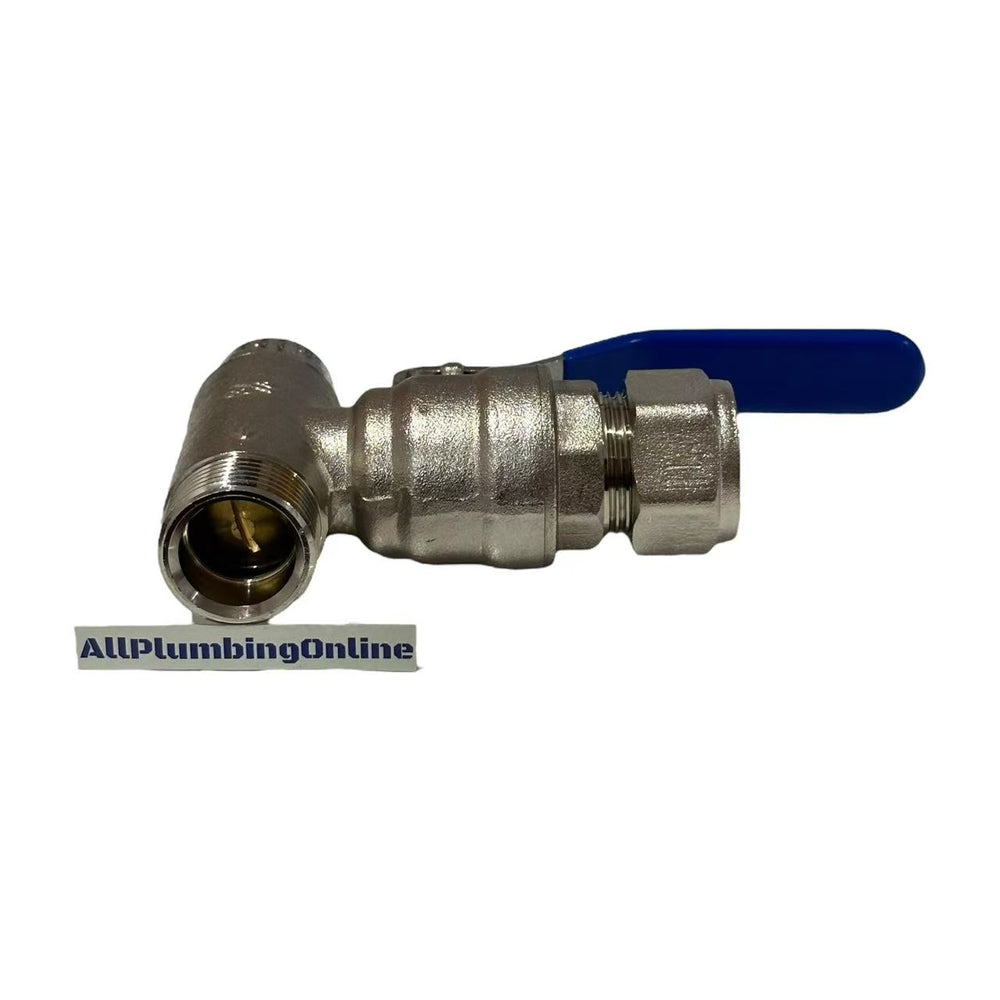

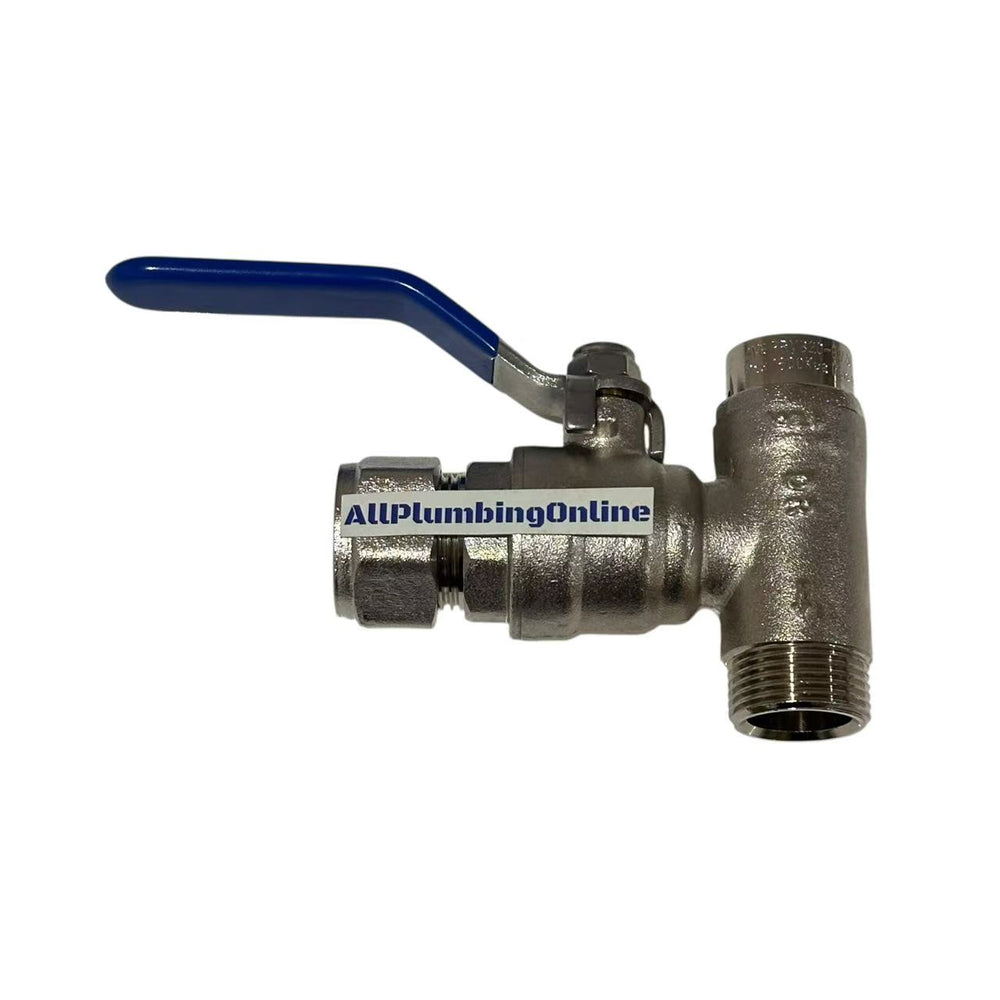

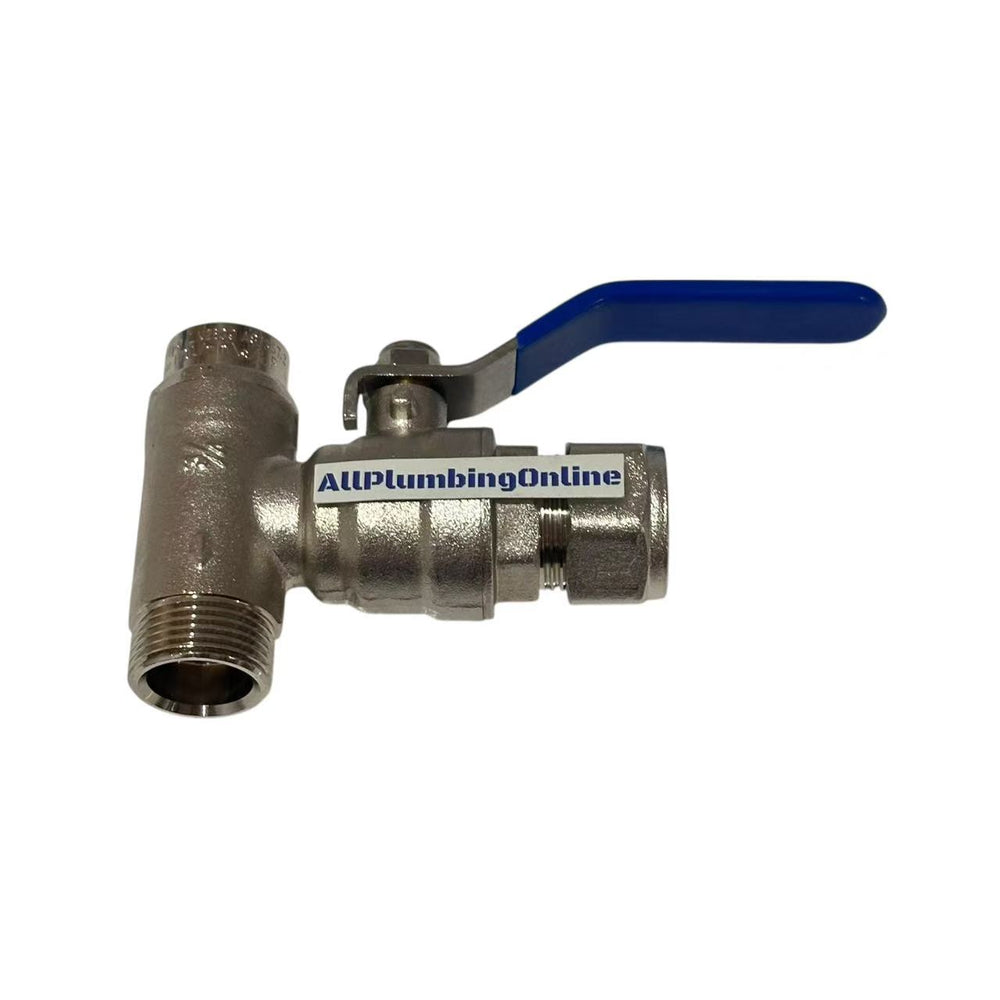

AVG PRVB20-BV20 Boundary Pressure Reduction Valve with Isolation Ball Valve

Overview

The AVG PRVB20-BV20 pressure reduction boundary valve PRVB features a unique combination 20mm pressure reducing and isolation ball valve design in a right angle. The boundary pressure reduction valve is designed to limit the water pressure to 500kPa entering into residential dwellings and is usually installed adjacent to the wall of the building, which allows for convenient water isolation and easy boundary identification. The AVG PRVB20-BV20 is supplied with a universal loose nut adaptor, making the valve suitable for either a male or female wall thread connection.

The PRVB pressure reduction valve boundary is commonly found in almost all recent and new home builds, making this valve extremely versatile. AVG also makes another popular version of the PRVB pressure reduction valve boundary in a brass finish without a ball valve known as PRVB20-500C, which is offered in our online store also.

Technical Details

• Manufacturer: AVG
• Model: PRVB20-BV20
• Thread Size: 3/4" BSP (20mm) Male MI or Female FI Thread to Compression Fitting End with Copper Olive (20MI/FI x 20C)
• Physical Thread Measurement: 26.441mm, refer to the BSP vs Physical Thread Measurement Table in the photo gallery
• Material: Lead Free DR Brass Body
• Factory Pressure Setting: 500kPa
• Features: Combination of isolation ball valve and pressure reducing valve at a right angle
• Flow Rate: 170L/min
• Max Temperature: 80 deg
• Max Inlet Pressure: 1600kPa
• Intended Use: Limit the mains water supply pressure to 500kPa to residential dwellings
• SKU: AVG-PRVB20-BV20

Package Contents

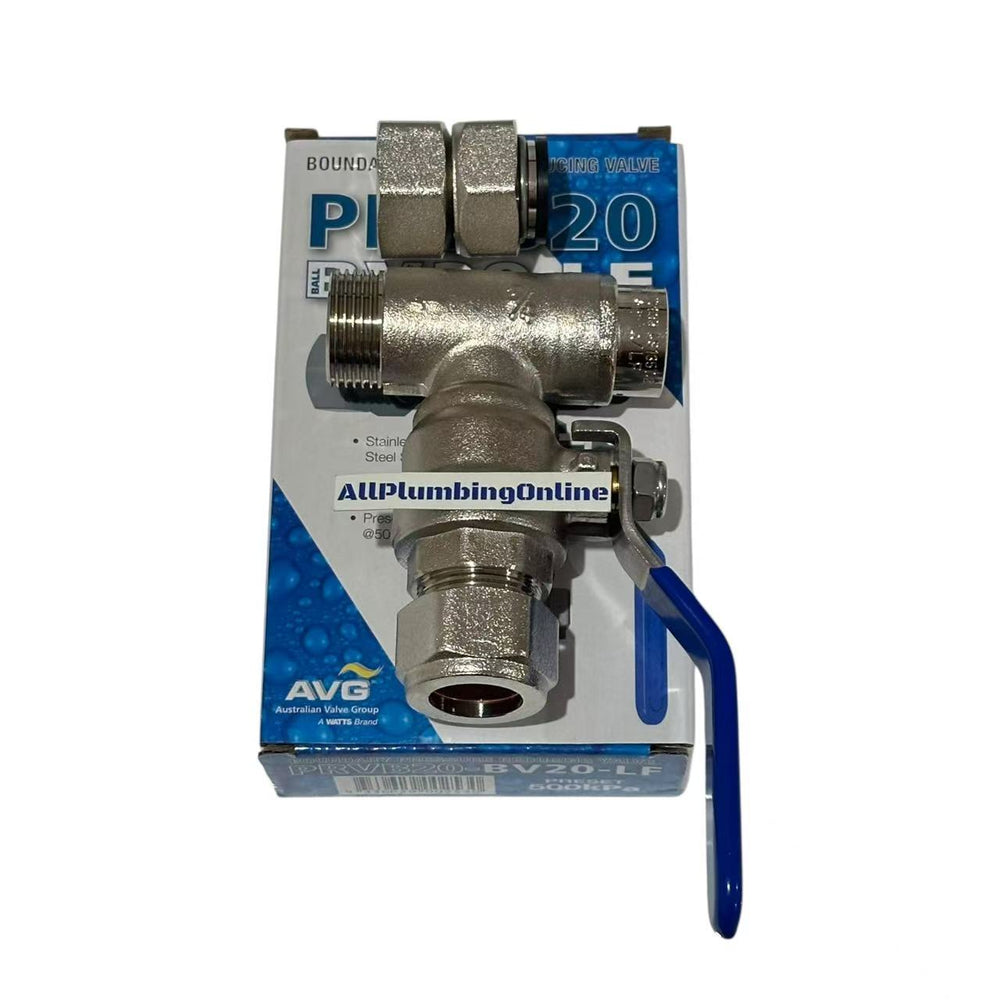

- AVG PRVB20-BV20 pressure reduction boundary valve with isolation ball valve

- Package Weight 660g
