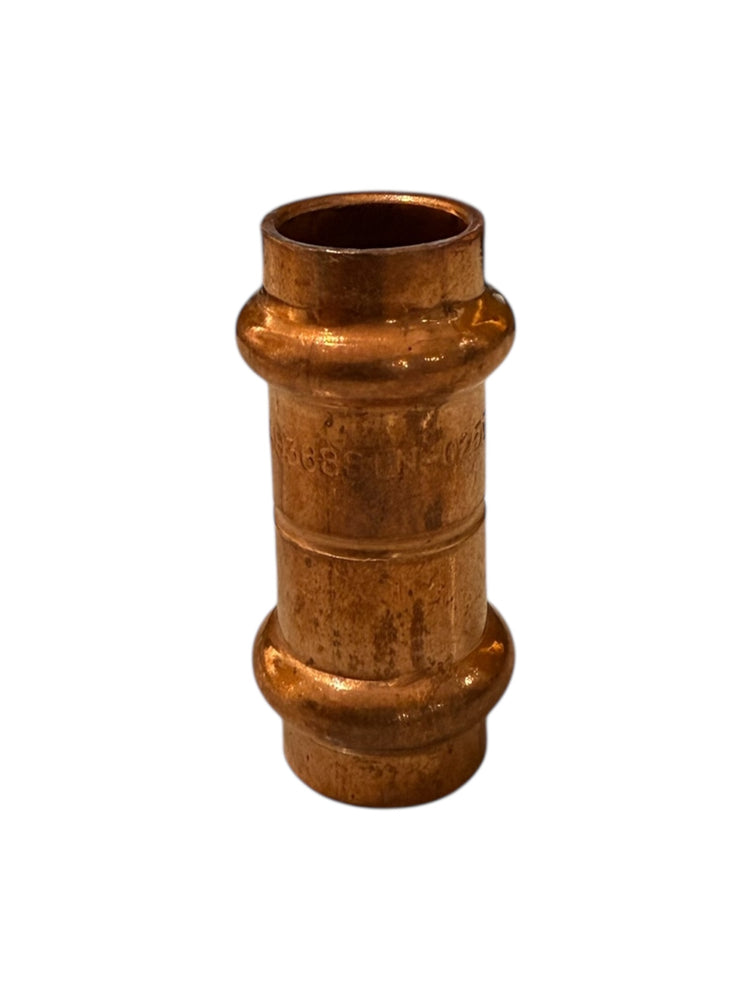

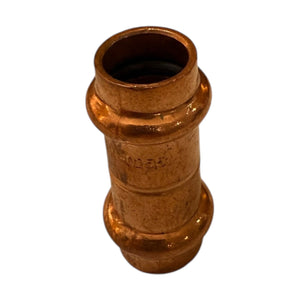

APO PWCSC15 Copper Water Press Fitting 15mm ½" Straight Coupling Union


Overview:
The APO 15mm 1/2" PWCSC15 Copper water Press Straight Coupling (DN15) is designed for compatibility with standard copper press tools. This straight coupling features a lip at either end, which helps align the press areas on the copper pipes and provides extra sealing material when pressed.

Each APO copper water press straight coupling includes an inbuilt stopper at the center of the fitting. This stopper prevents the pipe from sliding too far into the fitting, ensuring even and secure connections on both ends. This is unlike slip repair couplings, which lack a stopper and can slide along the pipe.

The coupling is designed with a slug fit, allowing it to stay in place before pressing. This enables easy adjustments during installation. Once pressed with the appropriate tool, the fitting holds securely without denting or deforming the internal pipe, ensuring unobstructed water flow.

Technical Details:
•    Manufacturer: APO
•    Model: PWCSC15
•    Size: DN15 (15mm / 1/2")
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    Materials: Copper, EPDM O-ring
•    Intended Use: Joining copper pipes

Package Contents:
•    1 × APO PWCSC15 15mm 1/2" Copper Press Straight Coupling
•    Package Weight: 26g
