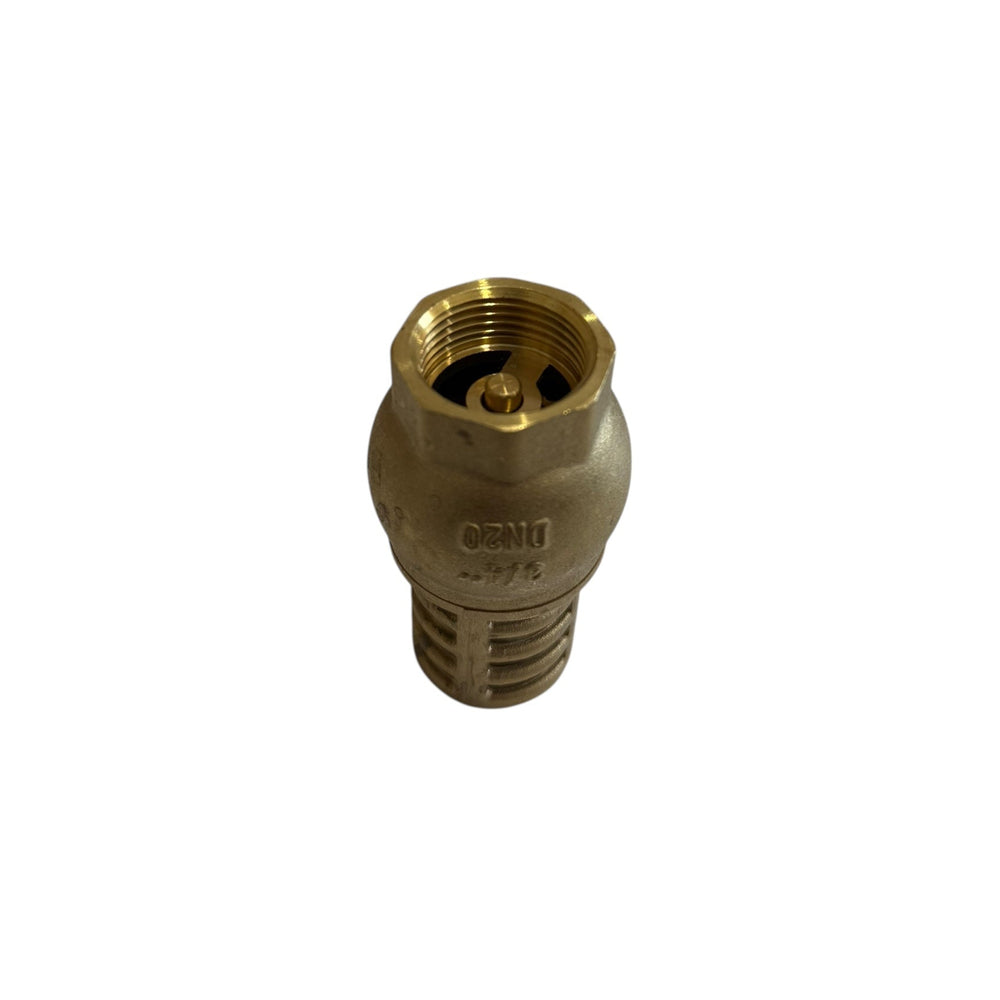

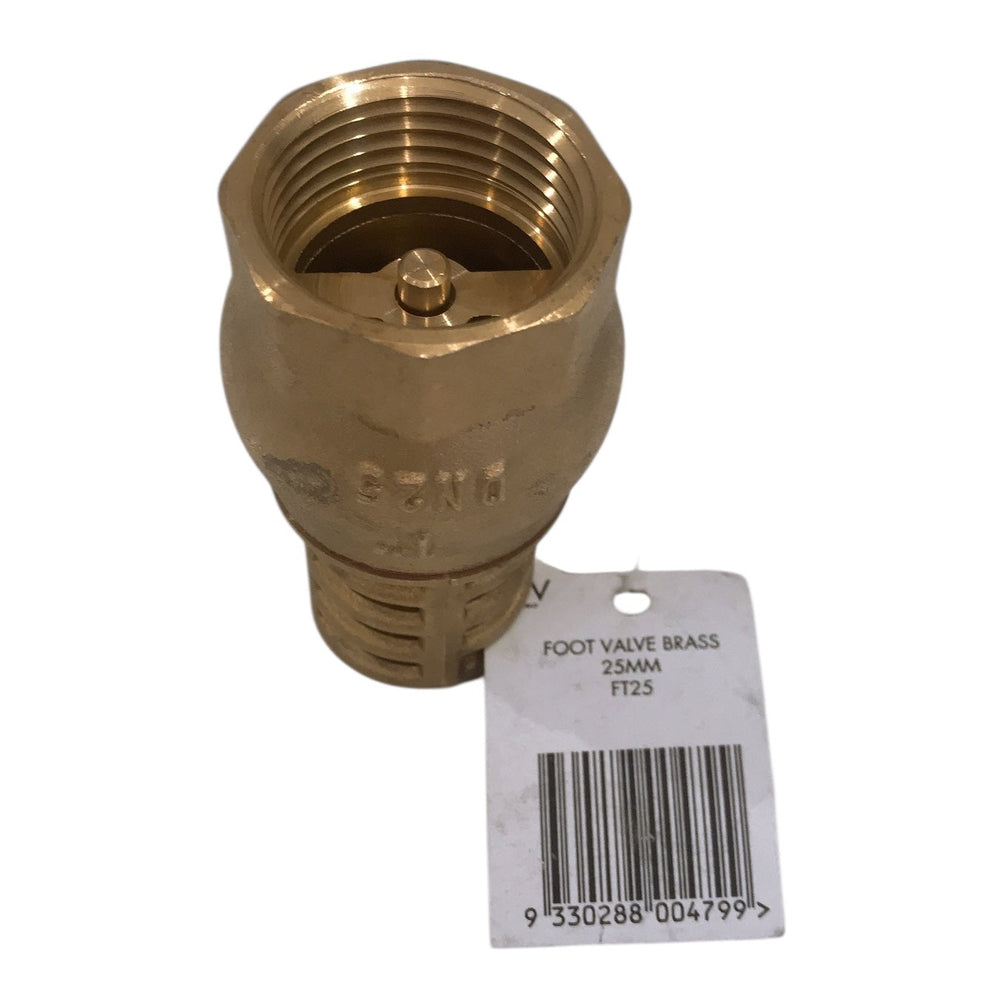

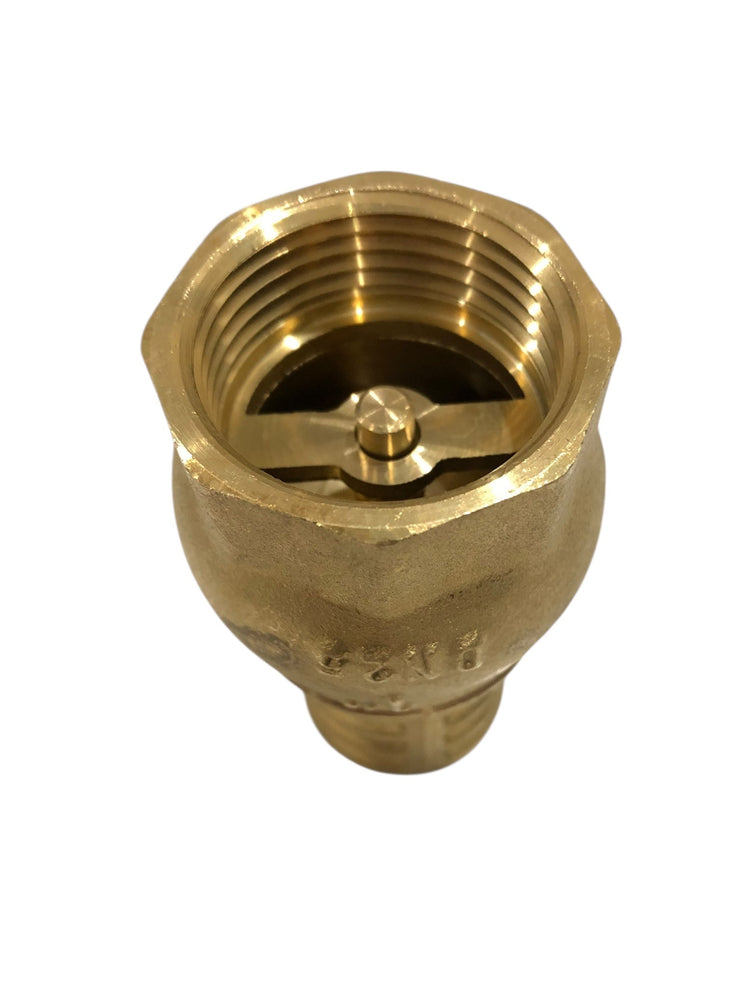

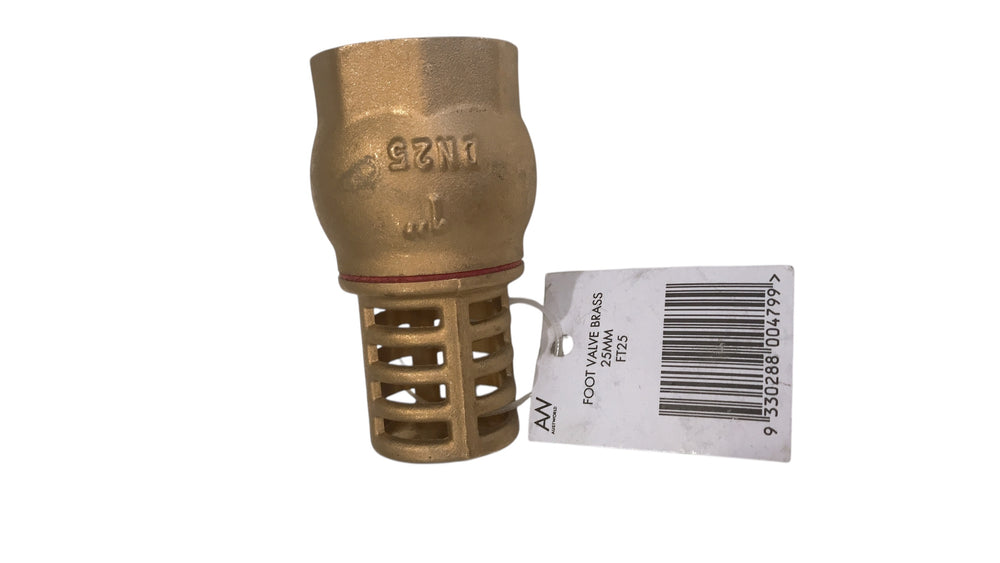

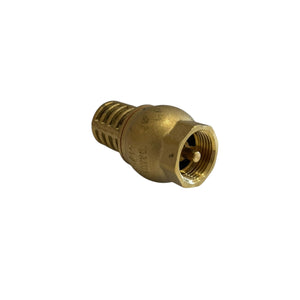

AW 25mm FT25 Brass Non Return One Way Strainer Foot Valve

Overview
AW (Austworld) FT25 brass female thread 25mm 1” strainer foot valve is commonly used in pumping, industrial and irrigation applications. The foot valves are submerged in water at the bottom of a pump suction line. The foot valves feature a disc that lifts during suction or water flow and re-seats when not in operation. The foot valves prevent reverse flow and serve as a one-way check valve to stop the water falling back from the pump. This function keeps the pump primed by sustaining the full water columns in the hoses between uses. A failed foot valve can cause airlocks and damage the pumps if running dry. The integrated strainer filters out large debris such as rocks or grass that could interfere with the pump operation.

Technical Details
•    Manufacturer: AUSTWORLD (AW)
•    Model: FT25
•    Thread Size: 1" BSP (25mm) Female FI Thread
•    Physical Thread Measurement: 33.249mm female internal; Refer to the BSP sizing chart in the photo gallery
•    Material: Brass Body
•    Features:  Strainer to filter out large debris; Full brass construction
•    Working temperature: 1°C to 95°C
•    Maximum pressure rating: 1600 KPa
•    Intended Use: Industrial, irrigation and other pump applications
•    SKU: AW-FT25

Package Contents
•    AW FT25 non-return foot valve
•    Package Weight: 270g
