AW Butterfly Handle Gas Cock Ball Valve 10mm Flare Compression

Overview

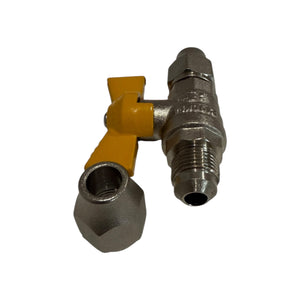

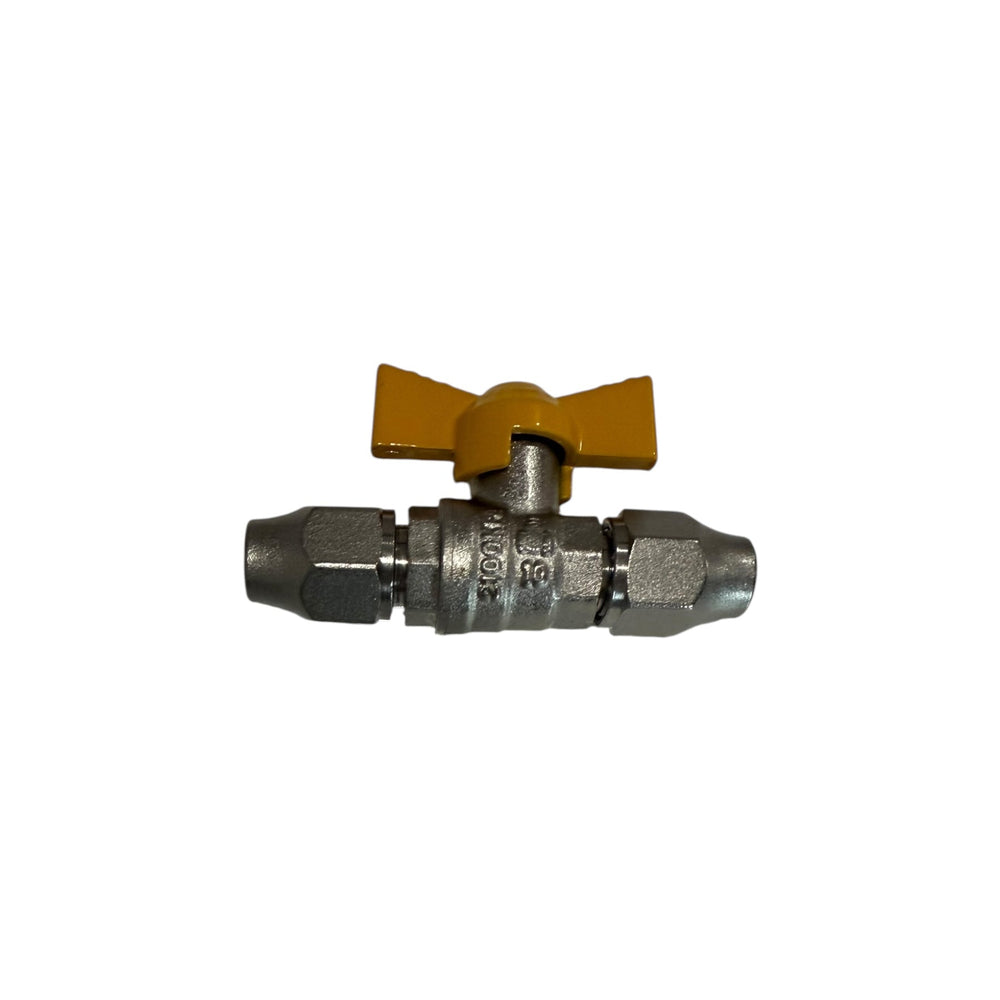

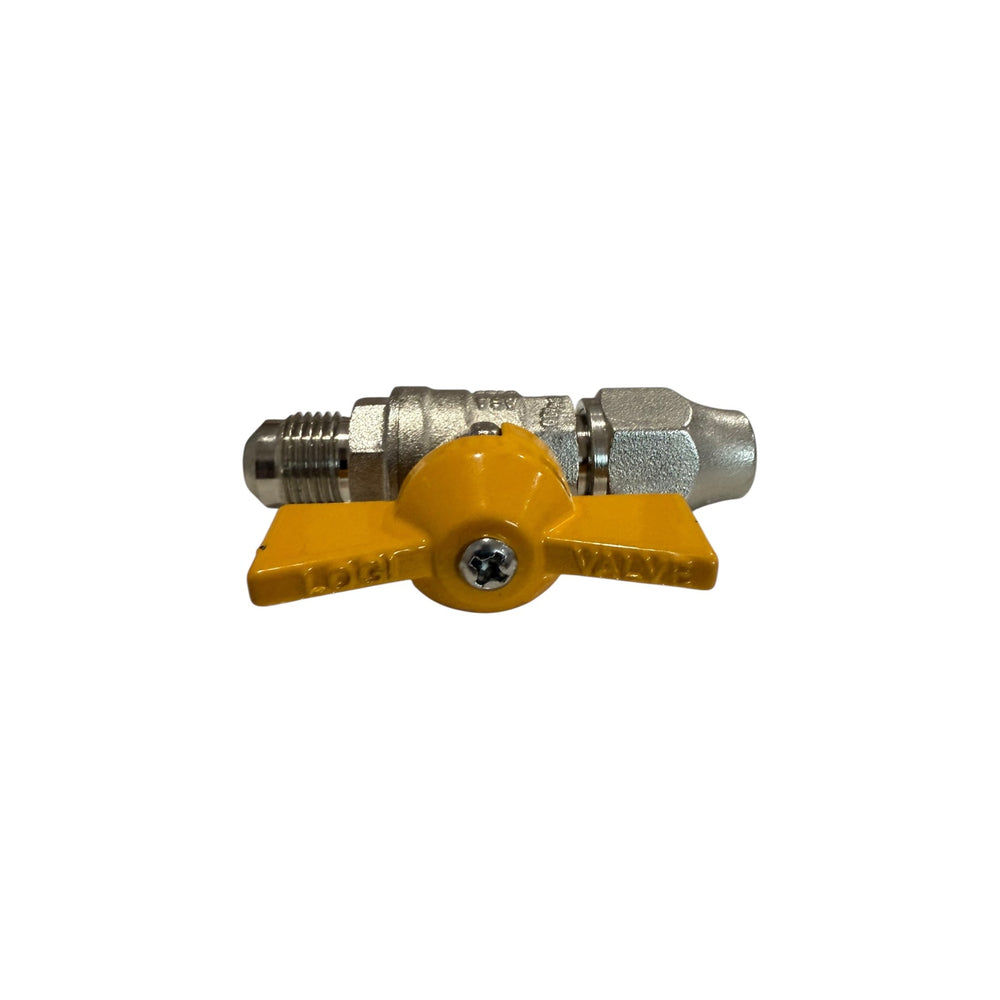

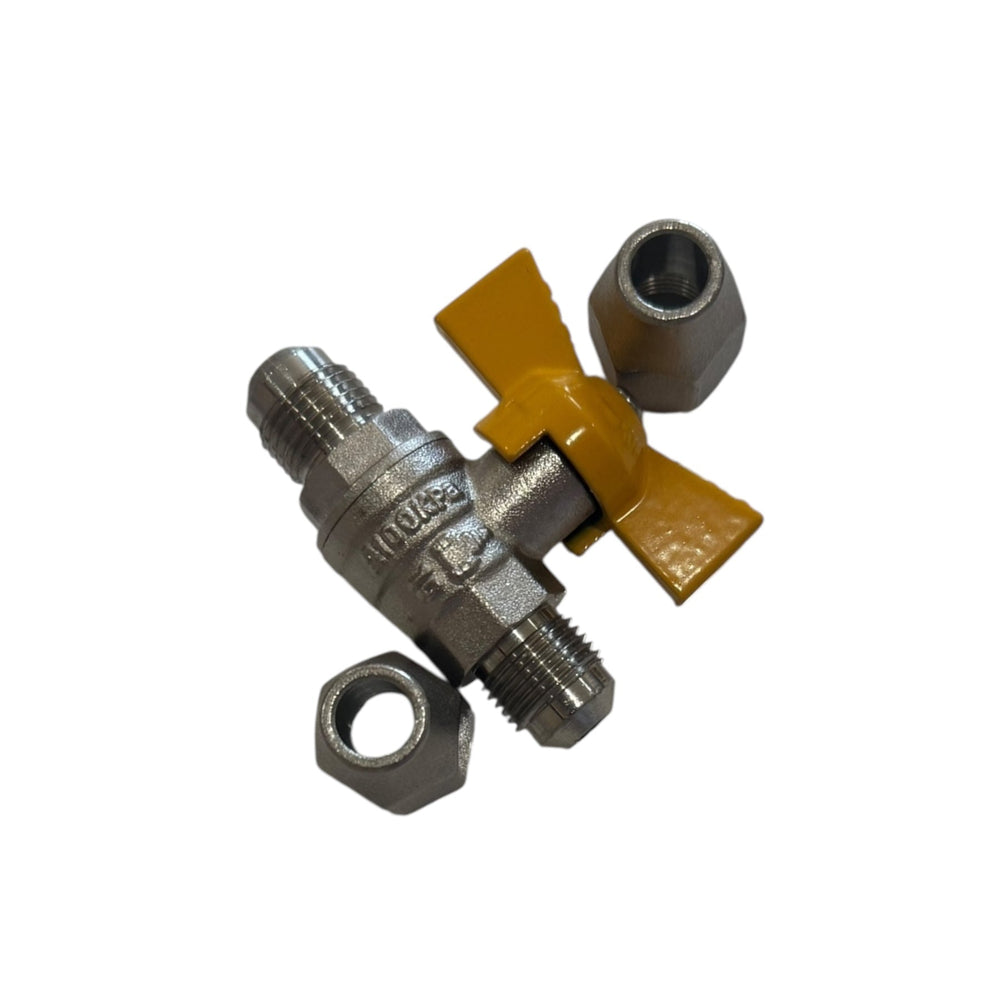

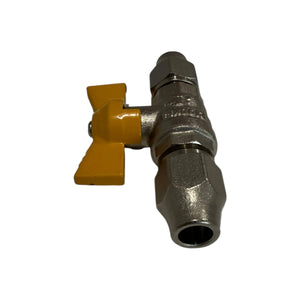

The AUSTWORLD (AW) LOGI G10 gas cock is a gas ball valve with a butterfly handle and 10 mm flare compression connections. The ball valve is AGA gas-approved for use in all gas applications.  The compact gas cock dimension is designed for easy installation in confined spaces. The ball vavle is made of durable DR brass with a corrosion resistant silver nickel plated finish, delivering reliable performance in both natural gas (NG) and liquefied petroleum gas (LPG) applications.

Technical Details

• Manufacturer: AUSTWORLD (AW)
• Model: G10
• Thread Size:  3/8" BSP (10mm) flare compression fitting (15FC x 15FC)

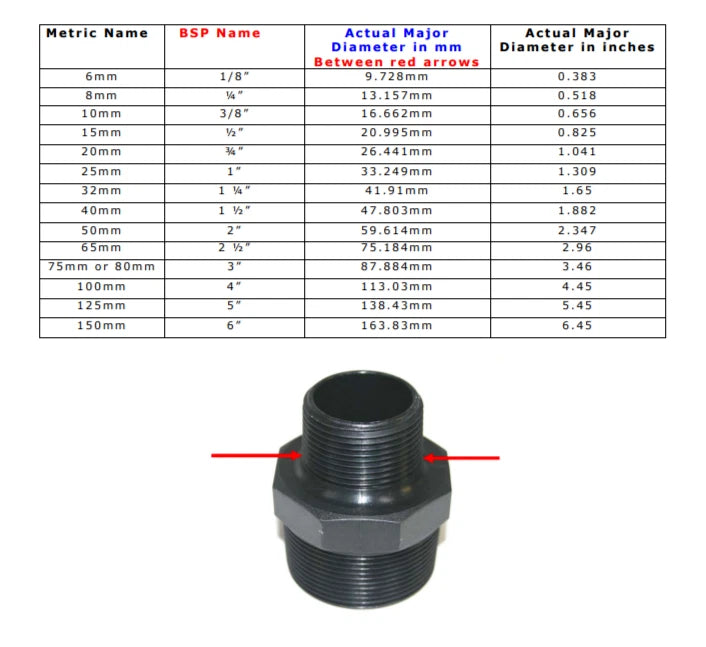

• Physical thread measurement: 16.662mm, With flare nuts removed (Refer to the BSP sizing chart in the photo gallery)
• Material: DR brass body, chrome-plated
• Features: Designed for flare-type connections
• Intended Use: Natural Gas (NG) or Liquefied Petroleum Gas (LPG) connections
• Working Temperature: 1°C to 120°C
• Maximum Pressure Rating: 2100 kPa
• SKU: G10

Package Contents
G10 AW gas cock Ball Valve
Package Weight: 205g
