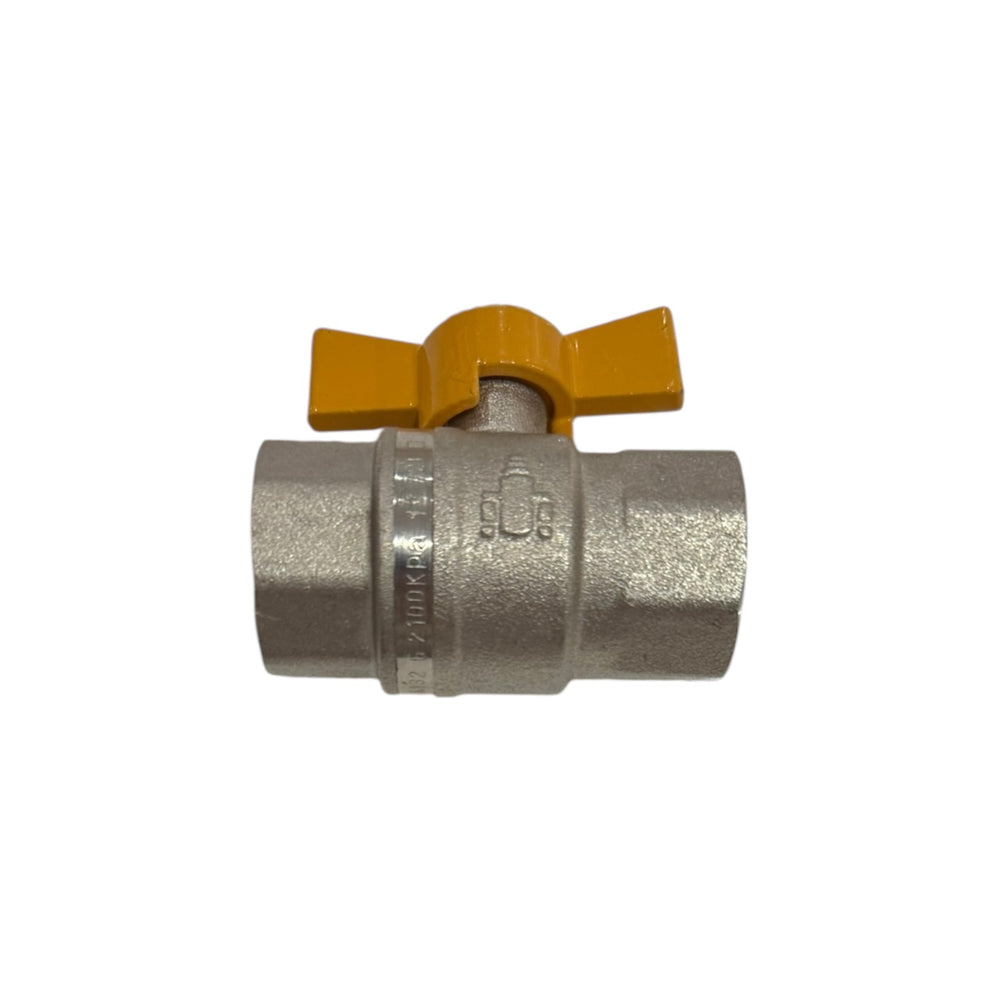

AW Austworld Logi WB20F Gas Ball Valve – 20mm Female Thread

Overview

The Austworld AW Logi WB20F gas ball valve is AGA gas approved and features a BSP 20mm (¾”) female thread. Designed with a compact butterfly-style handle, it allows for easy installation in tight spaces. Constructed from durable DR brass with a nickel-plated finish, this valve is ideal for reliable performance in all natural gas (NG) and liquefied petroleum gas (LPG) applications. Suitable for both residential and commercial use.

Technical Details

• Manufacturer: AUSTWORLD (AW)
• Model: WB20F
• Thread Size: 3/4" BSP (20mm) Female Thread, 20FI x 20FI

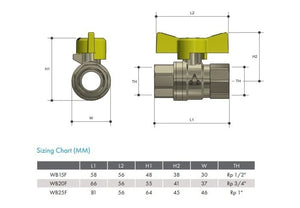

• Physical Thread Measurement: 26.441mm (Refer to the BSP sizing chart in the last photo of the gallery)
• Material: DR Brass Body, Nickel Plated
• Features: Female Threads
• Intended Use: NG and LPG connections
• SKU: WB20F

Package Contents

• AW WB20F Gas Ball Valve
• Package Weight: 269g
