Monopoly BVWMMBLF Washing Machine Matte Black Mini Cistern Isolation Stop Tap 15x20mm, Capstan Handle, Check Valve, Ceramic Disc 1/4 Turn

Overview

The AW Monopoly BVWMMBLF 15mm x 20mm matte black washing machine mini cistern isolation stop tap is constructed with lead free DR brass and is Watermark approved for portable water applications such as washing machine, toilet, under sink mixer tap and dish washer connections.

The AW Monopoly BVWMMBLF mini cistern isolation stop tap features a capstan style handle and a 1/4 turn ceramic disc internal for effortless operations. The fixed thread inlet promotes long term reliability via simplicity with no loose parts or rubber components, compared to swivel loose nut designs. The inbuilt check valve serves an isolation function by allowing only one way flow and preventing any back flow into the mains supply. This may be a requirement by some local councils and plumbing authorities for newly built homes.

Optional cistern stop tap cover plates are sold separately in the All Plumbing Online store.

Technical Details

• Brand: AW Monopoly
• Model: BVWMMBLF
• Include Blue and Red Indicator Buttons
• Temperature Rating: Maximum 80°C
• Maximum Pressure Rating: 1000 kPa
• Thread Size: 1/2" BSP (15mm) Female Inlet x 3/4" BSP (20mm) Male Outlet
• Thread Size Physical Measurement:
  • 20.995 mm internal female thread diameter (1/2" BSP)
  • 26.441 mm external male thread diameter (3/4" BSP)

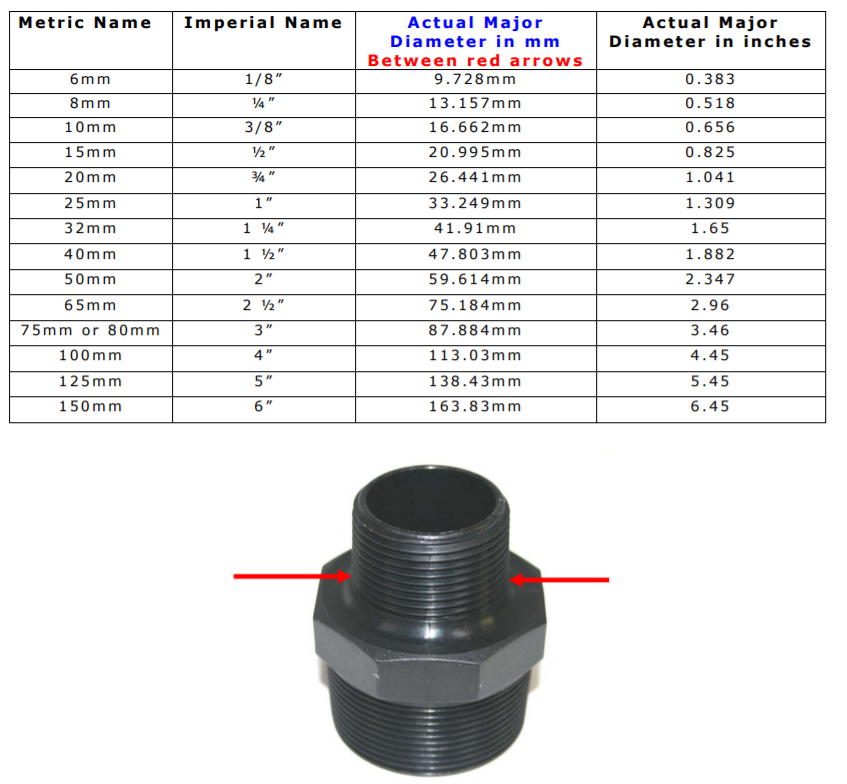

  (refer to the BSP sizing chart in the photo gallery)

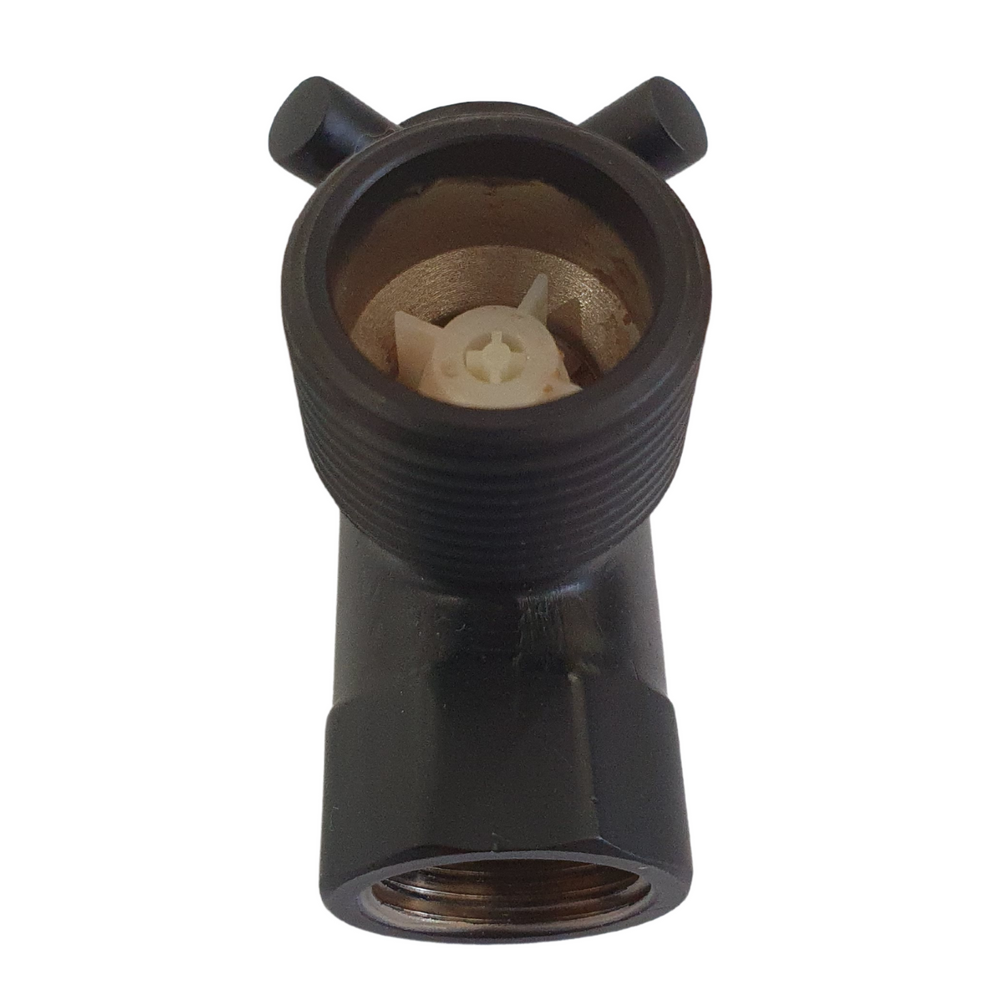

• Valve Internal Mechanism: 1/4 turn ceramic disc with inbuilt check valve
• Handle Type: Capstan style handle
• Finish: Matte black
• Material: Lead free DR Brass
• Certification: Watermark approved
• SKU: BVWMMBLF

Package Contents

• AW Monopoly BVWMMBLF 15mm x 20mm Washing Machine Mini Cistern Isolation Stop Tap
• Packaging weight: 185 g
