AW Butterfly Handle Water Gas Dual Approved Ball Valve 15mm Male to Female

Overview

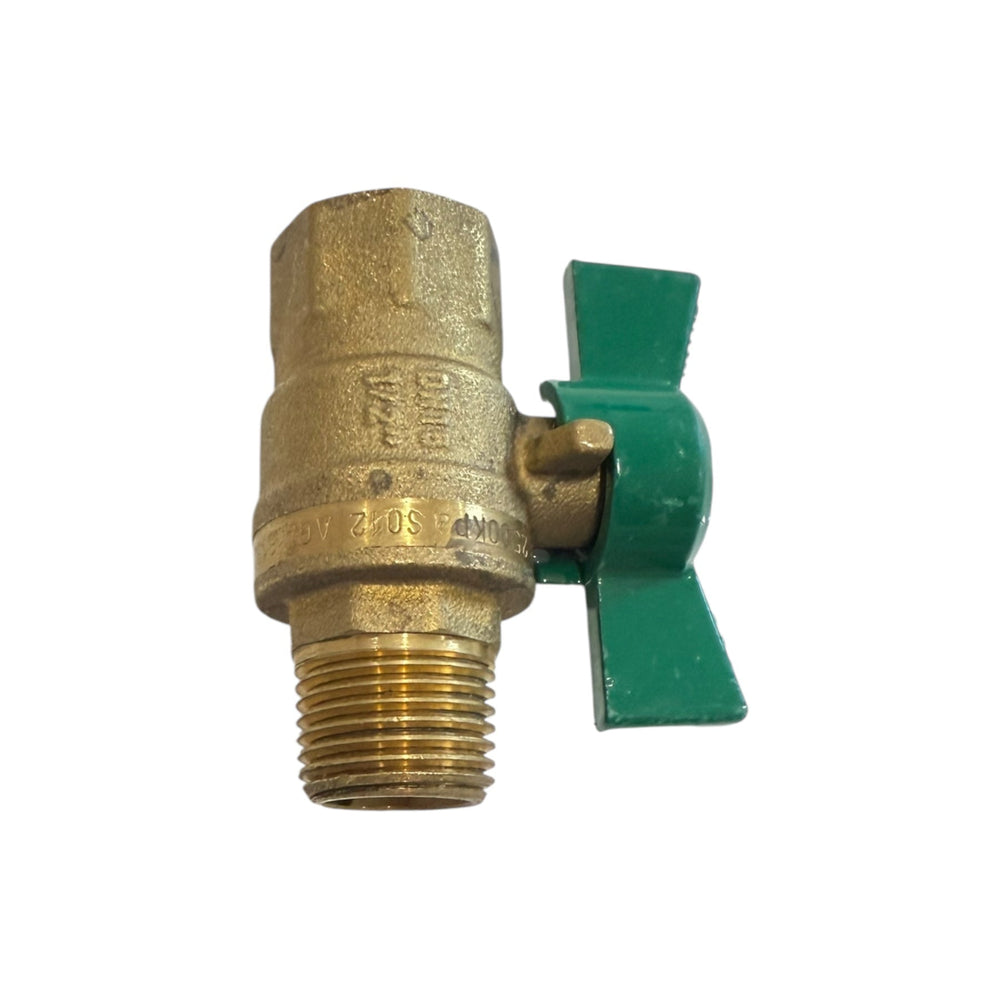

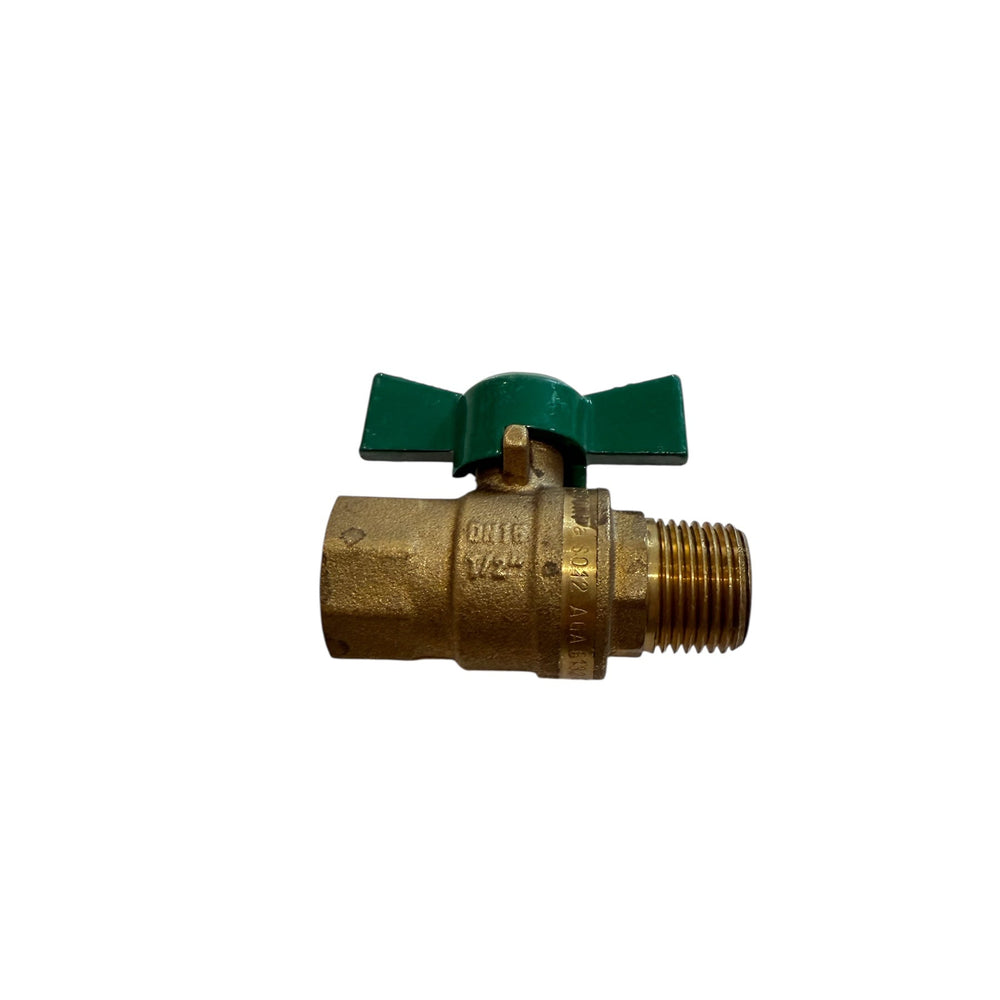

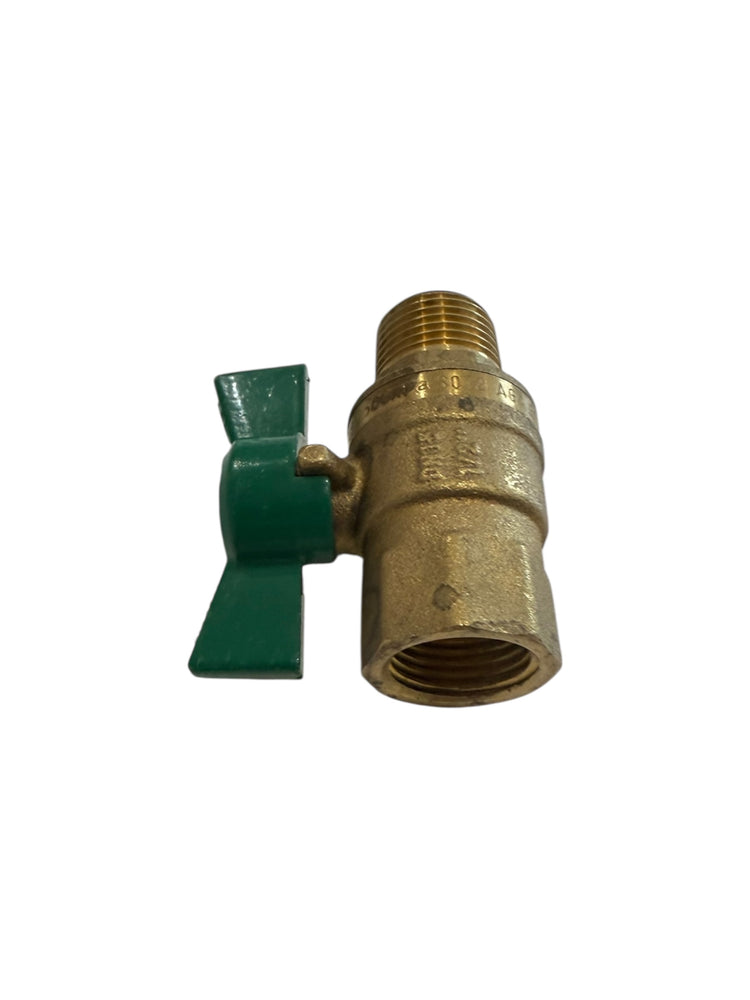

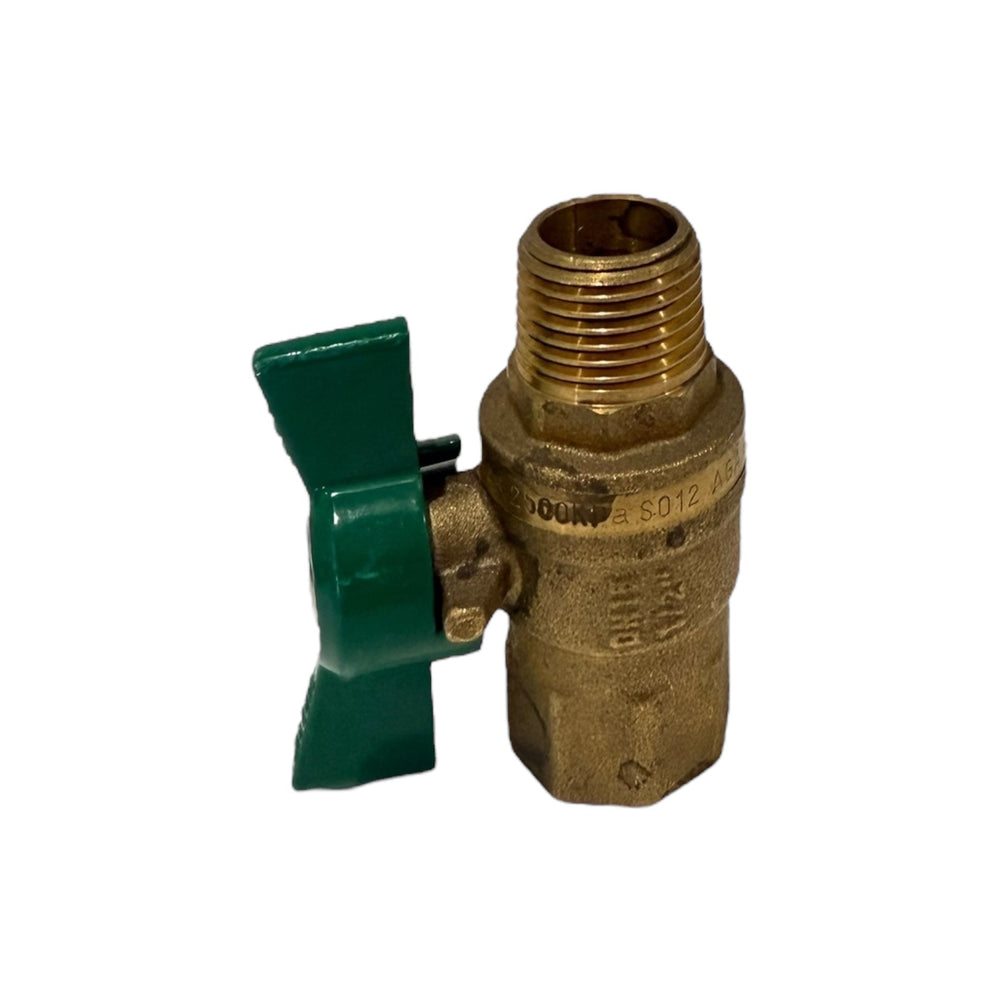

The AUSTWORLD (AW) BWB15MG is a dual-approved ball valve with a butterfly handle, featuring a 15mm (1/2") male to female BSP thread. It is both Australian Watermark and AGA gas approved, making it versatile for all water and gas applications. Made from durable DR brass, this full-bore ball valve is high temperature rated, making it suitable for use in both standard plumbing applications and solar hot water systems.

Technical Details

• Manufacturer: AUSTWORLD (AW)
• Model: BWB15MG
• Thread Size: 1/2" BSP (15mm) Male x Female Thread (15MI x 15FI)

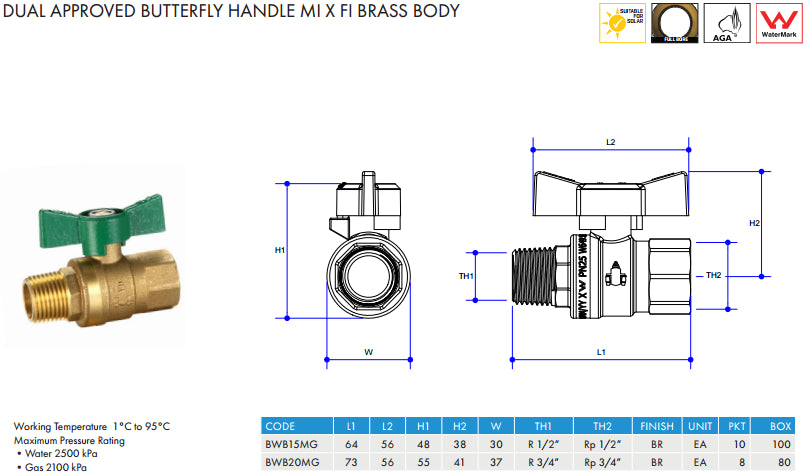

• Physical Size: 20.995mm Male External and Female Internal Thread (Refer to the BSP sizing chart in the photo gallery)
• Material: DR Brass Body
• Handle Material: Aluminium
• Features: Full-bore valve; suitable for high-temperature applications, including solar hot water systems
• Approval: AGA Gas Approved and Watermarked
• Intended Use: Water, Natural Gas (NG), Liquefied Petroleum Gas (LPG)
• Working Temperature: 1°C to 95°C
• Maximum Pressure Rating: Water: 2500 kPa, Gas: 2100 kPa
• SKU: BWB15MG



Package Contents

• 1 x AW BWB15MG Watermarked and AGA Gas Approved Ball Valve
• Package Weight: 190g
