AW Butterfly Handle Water Gas Dual Approved Ball Valve 20mm Male to Female

Overview

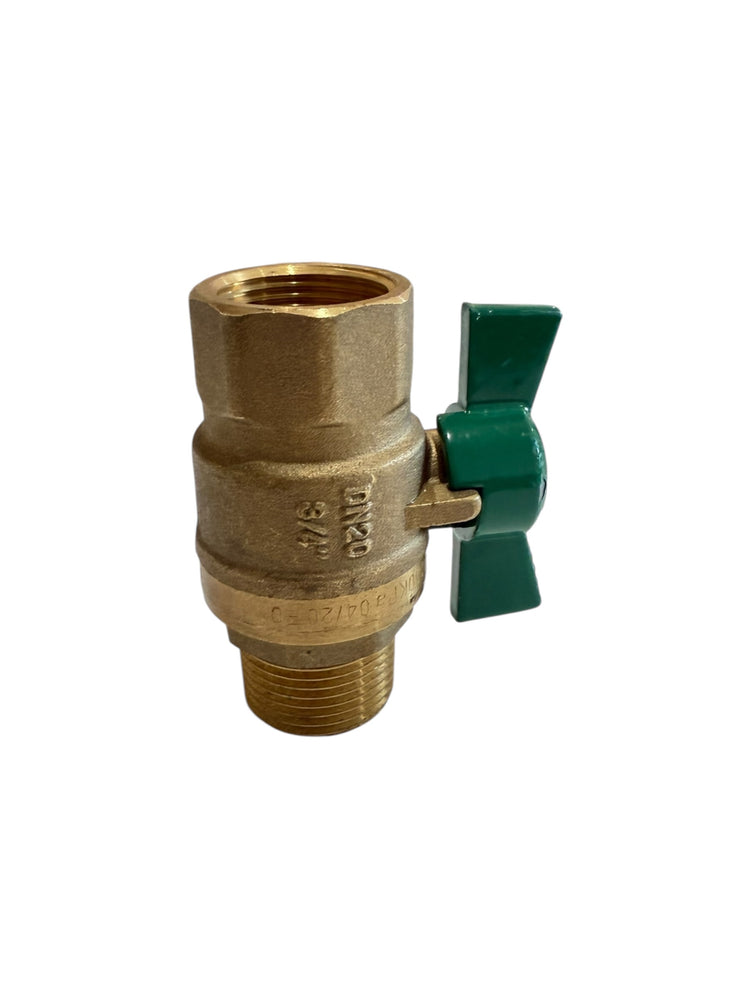

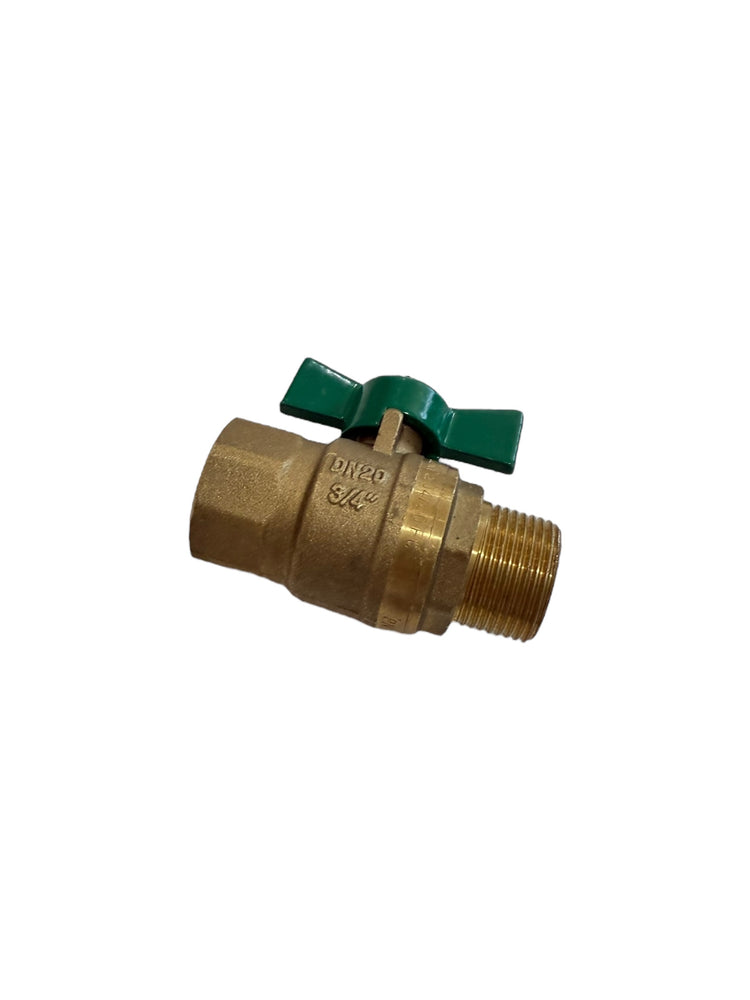

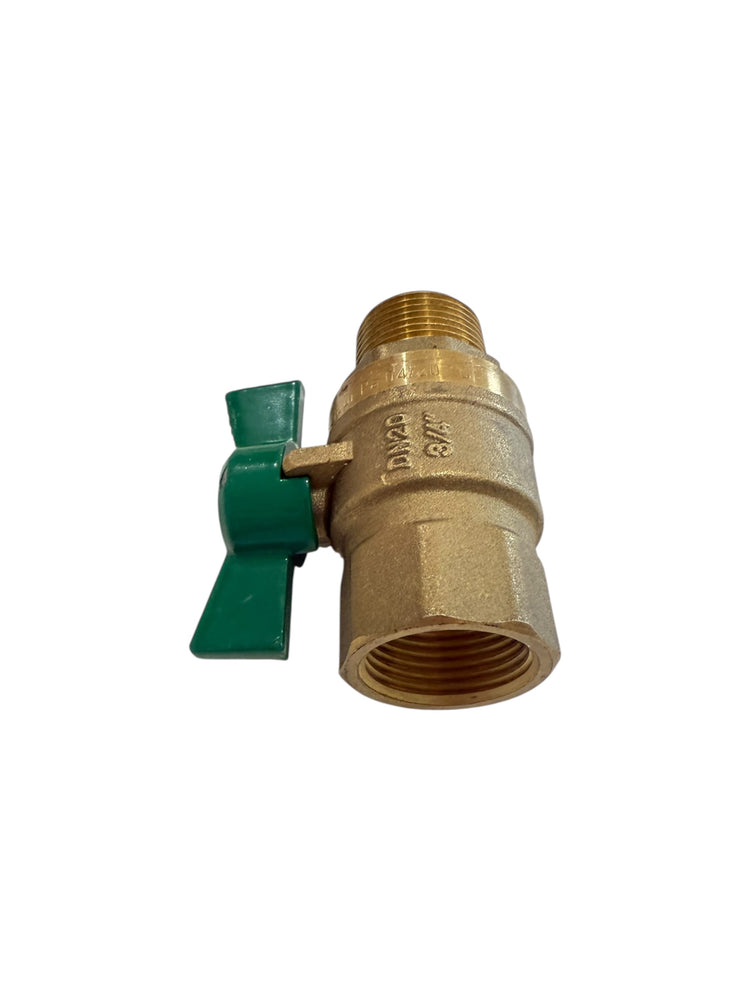

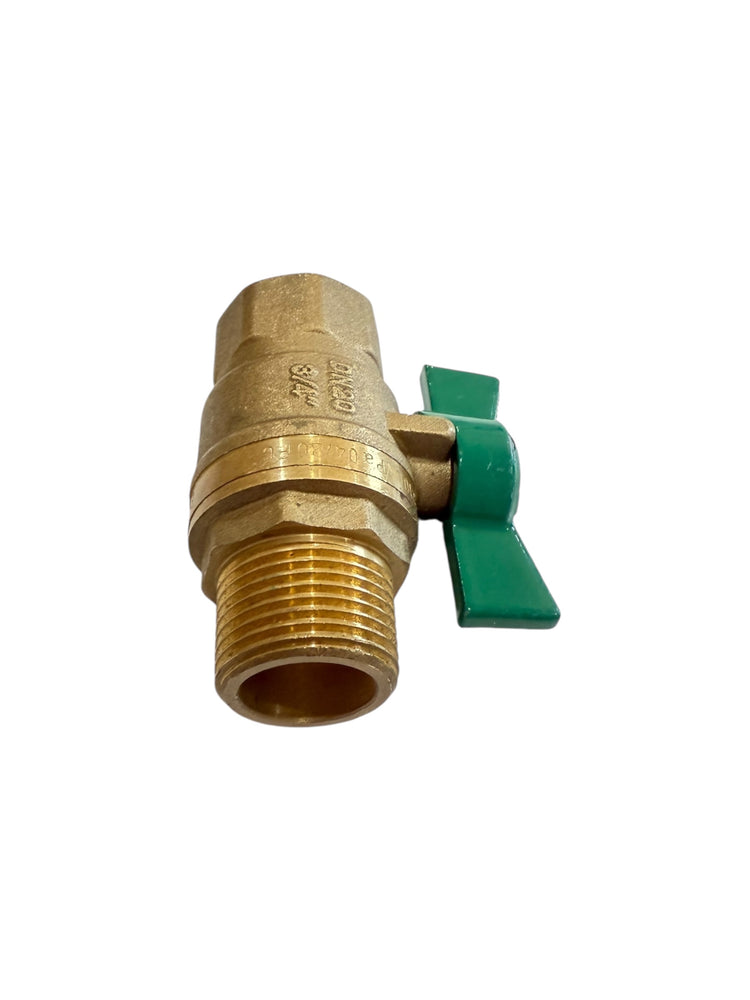

The AUSTWORLD (AW) BWB20MG is a dual-approved ball valve with a butterfly handle, featuring a 20mm male to female BSP thread. It is both Australian Watermark and AGA gas approved, making it versatile for all water and gas applications. Made from durable DR brass, this full-bore ball valve is high temperature rated, making it suitable for use in both standard plumbing applications and solar hot water systems.

Technical Details

• Manufacturer: AUSTWORLD (AW)
• Model: BWB20MG
• Thread Size: 3/4" BSP (20mm) Male x Female Thread (20MI x 20FI)

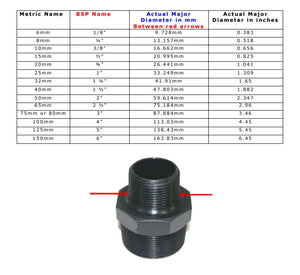

• Physical Thread Measurement: 26.441mm Male External and Female Internal Thread (Refer to the BSP sizing chart in the photo gallery)
• Material: DR Brass Body
• Handle Material: Aluminium
• Features: Full-bore valve; suitable for high-temperature applications, including solar hot water systems
• Approval: AGA Gas Approved and Watermarked
• Intended Use: Water, Natural Gas (NG), Liquefied Petroleum Gas (LPG)
• Working Temperature: 1°C to 95°C
• Maximum Pressure Rating: Water: 2500 kPa, Gas: 2100 kPa
• SKU: BWB20MG



Package Contents

• 1 x AW BWB20MG Watermarked and AGA Gas Approved Ball Valve
• Package Weight: 290g
