AW DF15 Internal Flare 15mm Non Return Isolation Duo Valve

Overview

AW (Austworld) Logi DF15 15mm ½” internal flare non-return isolation duo valve is Watermark approved and features an inbuilt one-way check valve which isolates the residential hot water system from the mains supply. The duo valve can be manually switched on and off with its jumper valve style mechanism, allowing for easy maintenances and services.

Technical Details

• Manufacturer: AUSTWORLD (AW)
• Model: DF15
• Thread Size: 1/2" BSP (15mm) Internal Flare

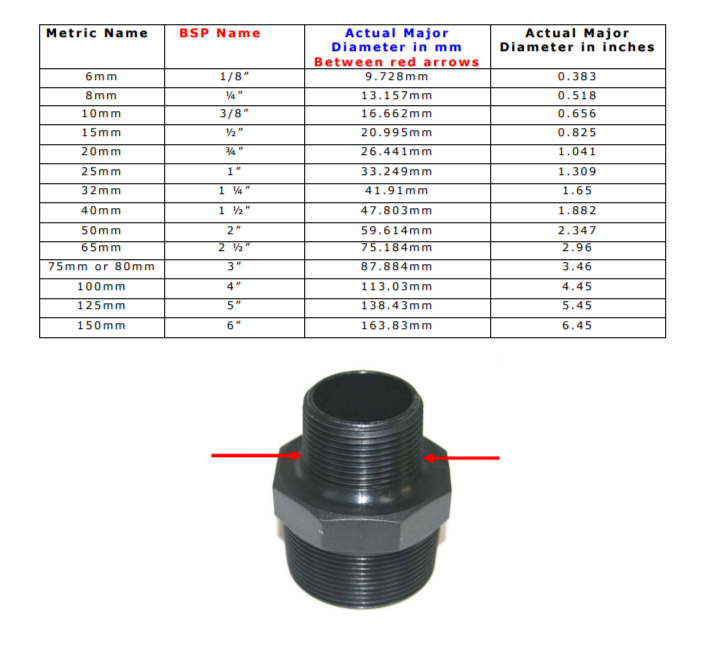

• Physical Thread Measurement: 20.995mm female internal thread (with the flare nuts removed); Refer to the BSP sizing chart in the photo gallery

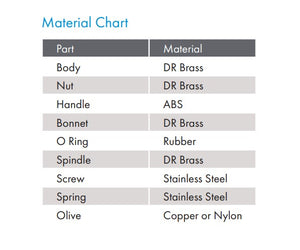

• Material: DR Brass Body
• Features: Jumper valve style operation; Blue and Red cap to indicate hot and cold water.
• Australian Watermark Approved
• Working temperature: -15°C to 90°C
• Maximum pressure rating: 1600 KPa
• Intended Use: Hot water service isolation
• SKU: AW-DF15

Package Contents

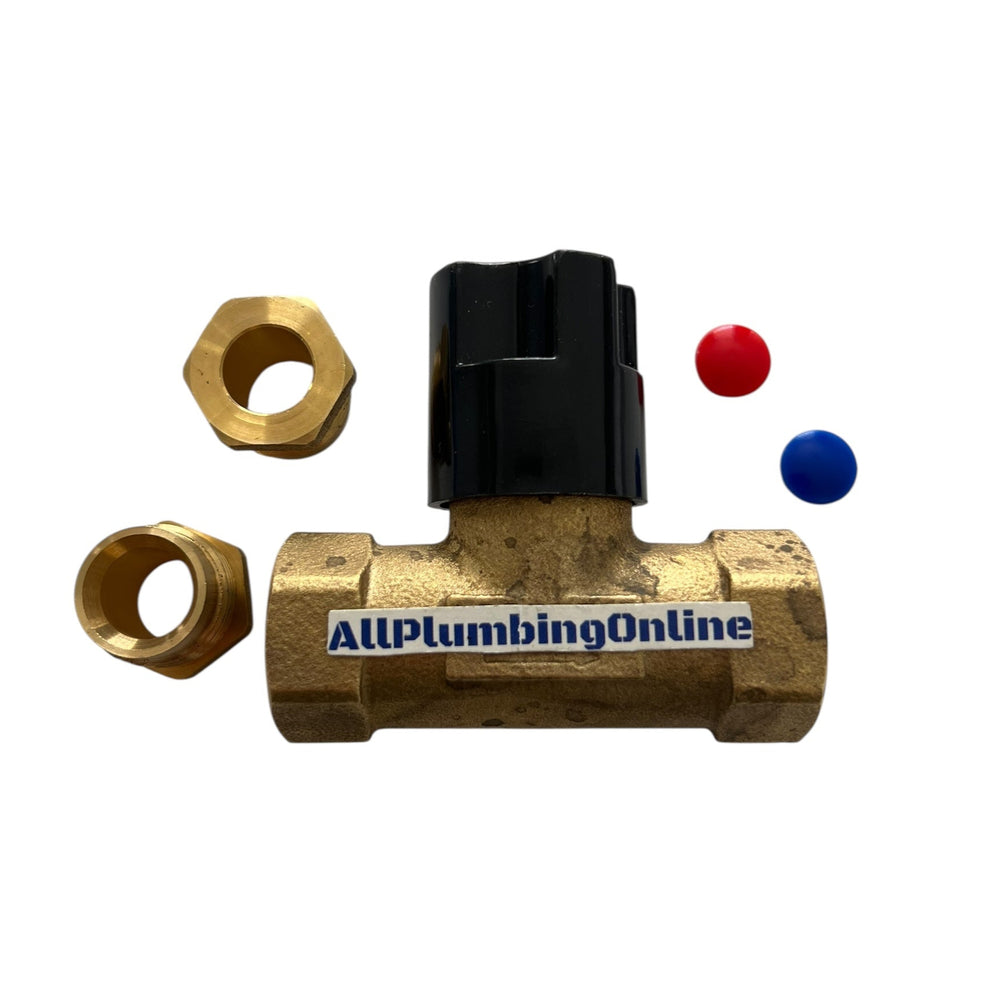

• AW DF15 non-return isolation duo valve
• Package Weight 330g
