AW DFC15 Male Compression 15mm Non Return Isolation Duo Valve

Overview

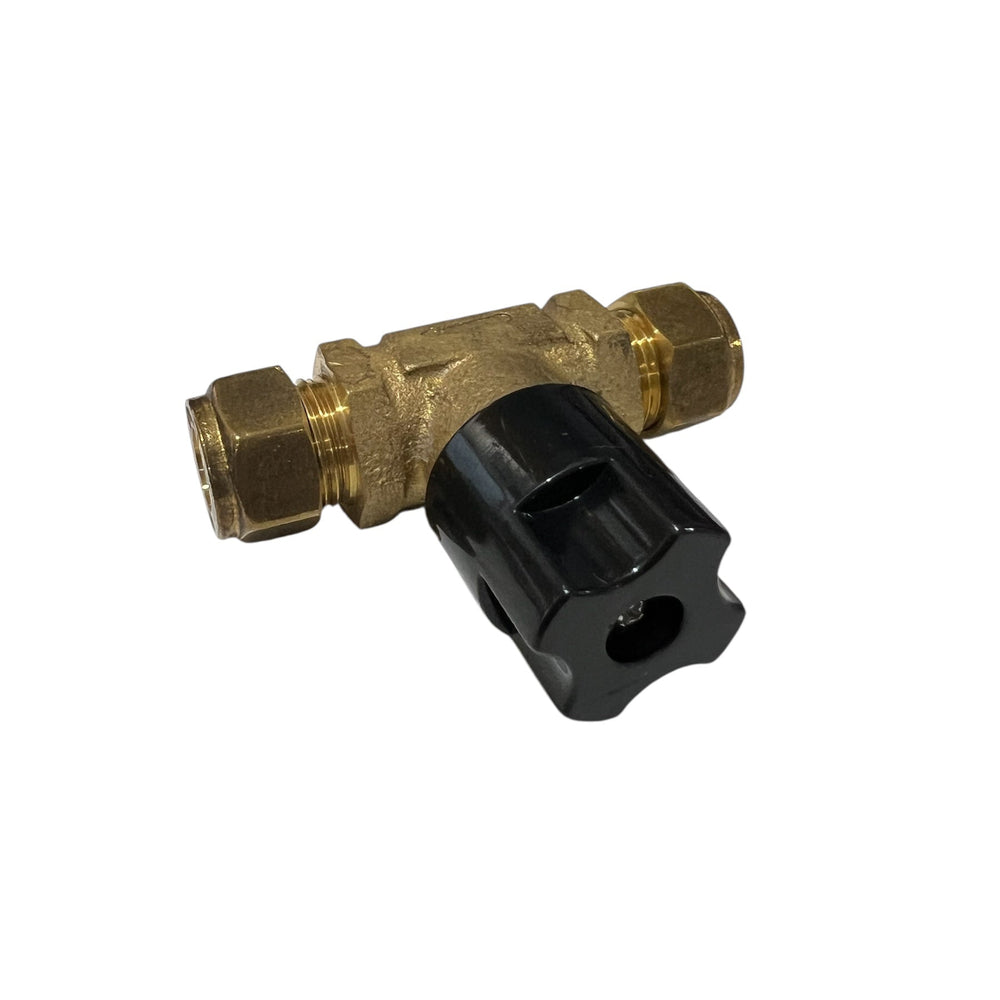

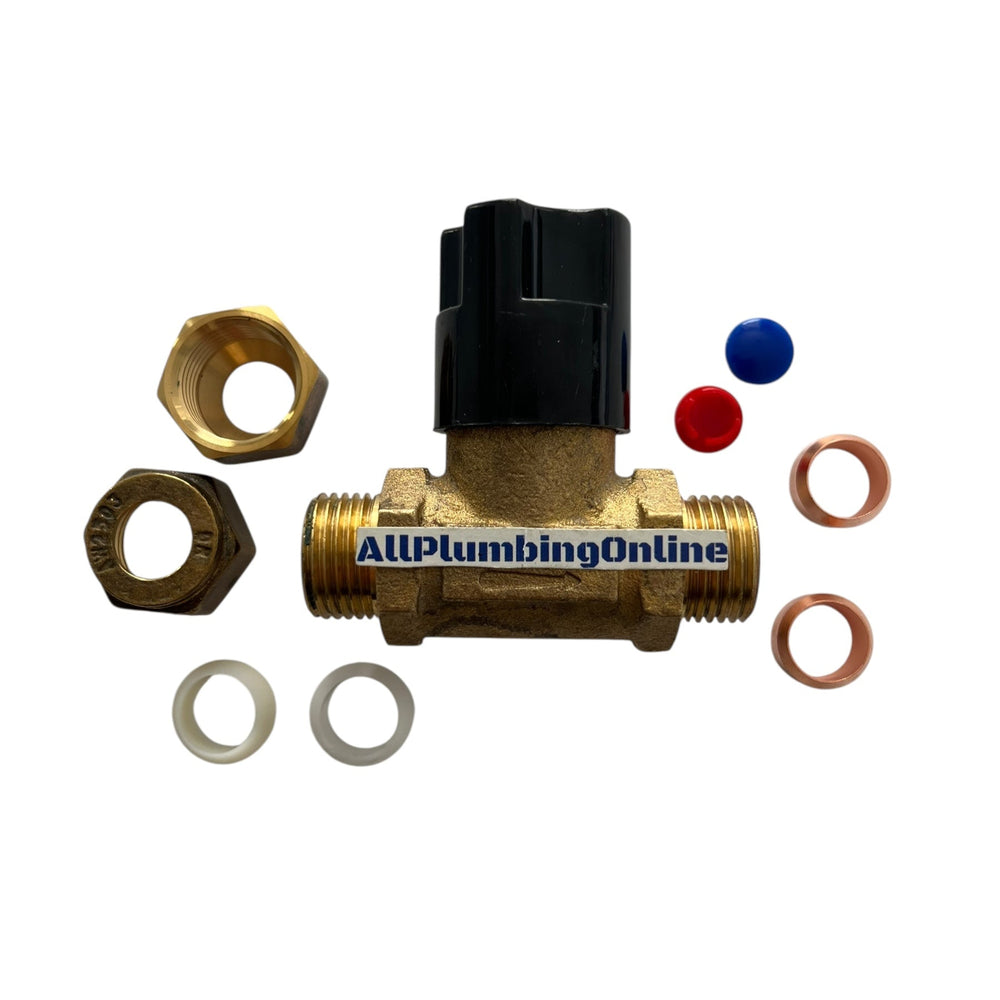

AW (Austworld) Logi DFC15 15mm ½” male compression non-return isolation duo valve is Watermark approved and supplied with both copper and nylon olives. The non return isolation duo valve features an inbuilt one-way check valve which isolates the residential hot water system from the mains supply. The duo valve can be manually switched on and off with its jumper valve style mechanism, allowing for easy maintenances and services.

Technical Details

• Manufacturer: AUSTWORLD (AW)
• Model: DFC15
• Thread Size: 1/2" BSP (15mm) Male Compression (15C x 15C)
• Physical Thread Measurement: 20.995mm male external thread (with the cone nuts removed); Refer to the BSP sizing chart in the photo gallery

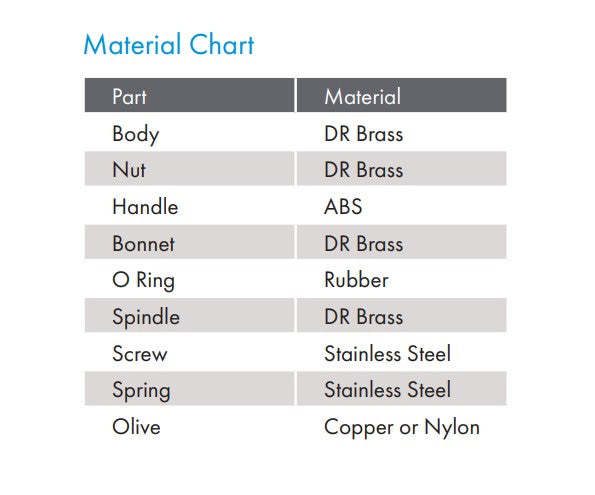

• Material: DR Brass Body
• Features: Jumper valve style operation; Blue and Red cap to indicate hot and cold water.
• Australian Watermark Approved
• Working temperature: -15°C to 90°C
• Maximum pressure rating: 1600 KPa
• Intended Use: Hot water service isolation
• SKU: AW-DFC15

Package Contents

• AW DFC15 non-return isolation duo valve
• Package Weight 340g
