AW DFF15 Female 15mm Non Return Isolation Duo Valve

Overview

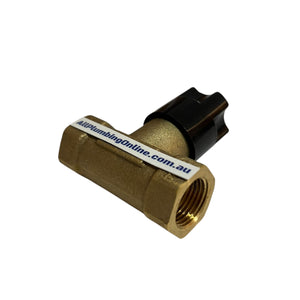

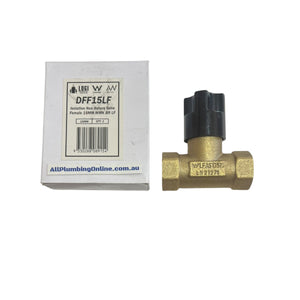

AW (Austworld) Logi DFF15 15mm ½” female non-return isolation duo valve is Watermark approved and features an inbuilt one-way check valve which isolates the residential hot water system from the mains supply. The duo valve can be manually switched on and off with its jumper valve style mechanism, allowing for easy maintenances and services.

Technical Details

• Manufacturer: AUSTWORLD (AW)
• Model: DFF15
• Thread Size: 1/2" BSP (15mm) Female (15FI x 15FI)
• Physical Thread Measurement: 20.995mm female internal thread; Refer to the BSP sizing chart in the photo gallery

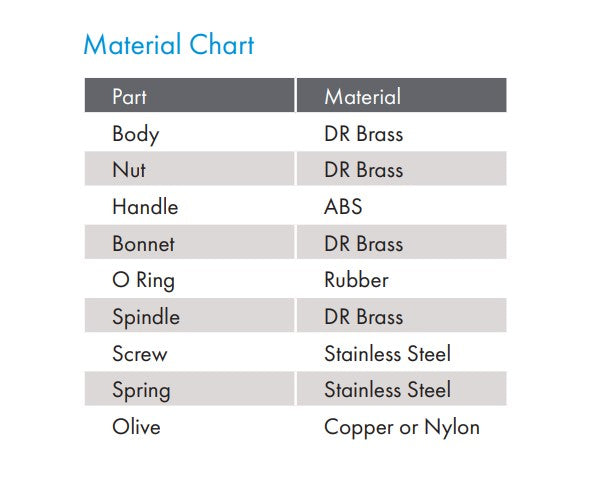

• Material: DR Brass Body
• Features: Jumper valve style operation; Blue and Red cap to indicate hot and cold water.
• Australian Watermark Approved
• Working temperature: -15°C to 90°C
• Maximum pressure rating: 1600 KPa
• Intended Use: Hot water service isolation
• SKU: AW-DFF15

Package Contents

• AW DFF15 non-return isolation duo valve
• Package Weight 270g
