AW FH20700M Female to Male 20mm (¾") x 700mm DN20 Stainless Steel Flexible Hose

Overview

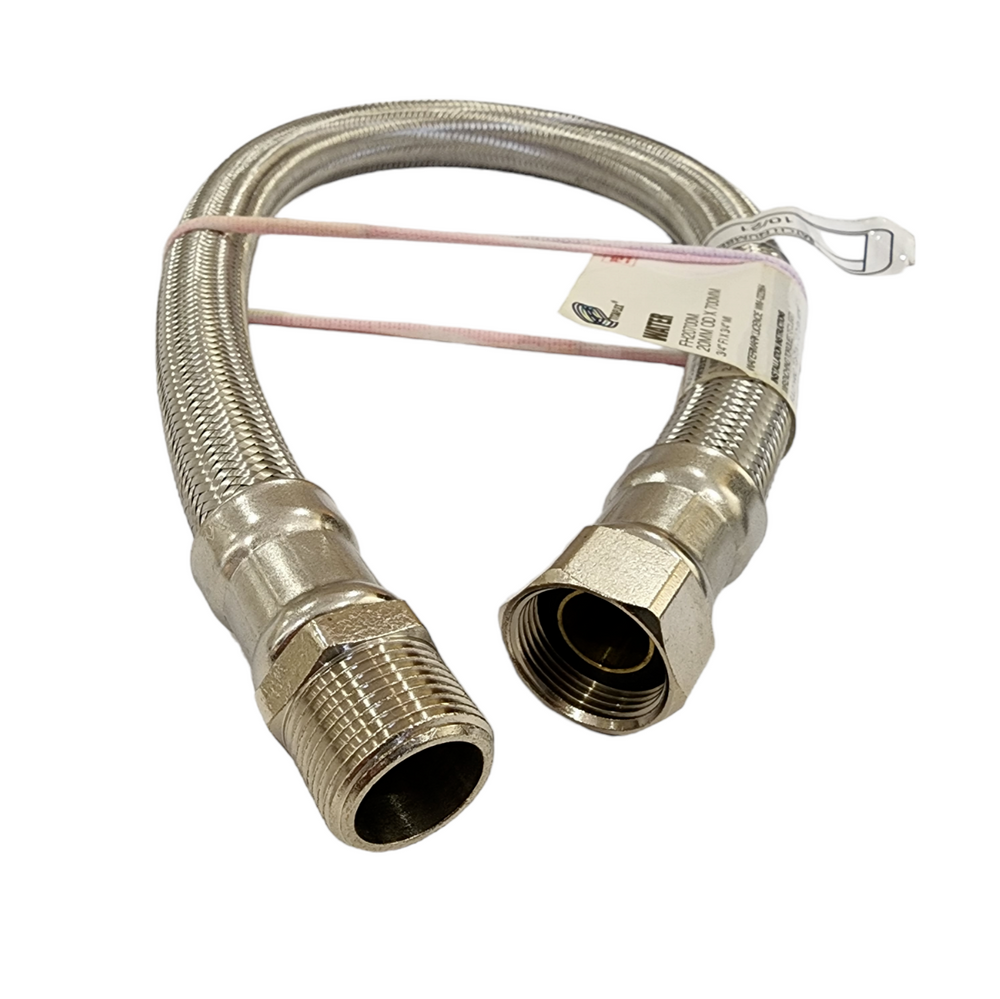

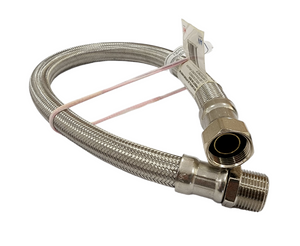

The AW FH20700M 20mm (3/4") x 700mm DN20 female to male thread stainless steel braided flexible hose is 700mm in length and features a BSP 3/4" 20mm sized male thread at one end and a female swivel loose nut at the other. The swivel loose nut with a rubber seal inside allows for a secure and plumbing tape free installation using just a finger tight force especially in tight spaces where tools are difficult to reach. The AW stainless steel braided flexible hoses of 20mm and above use tried and trusted EPDM inner materials capable of handing a maximum temperature rating of  80°c and a maximum pressure rating of 1000kPa. All AW EPDM stainless steel braided flexible hoses are backed up with 5 years manufacturer warranty.

The smaller diameter AW stainless steel flexible hoses are commonly used in toilet, washing machine, dish washer and under the kitchen sink connections. The larger diameter AW stainless steel flexible hoses are often used in commercial pump applications where a high flow rate is required to minimize pumping losses.

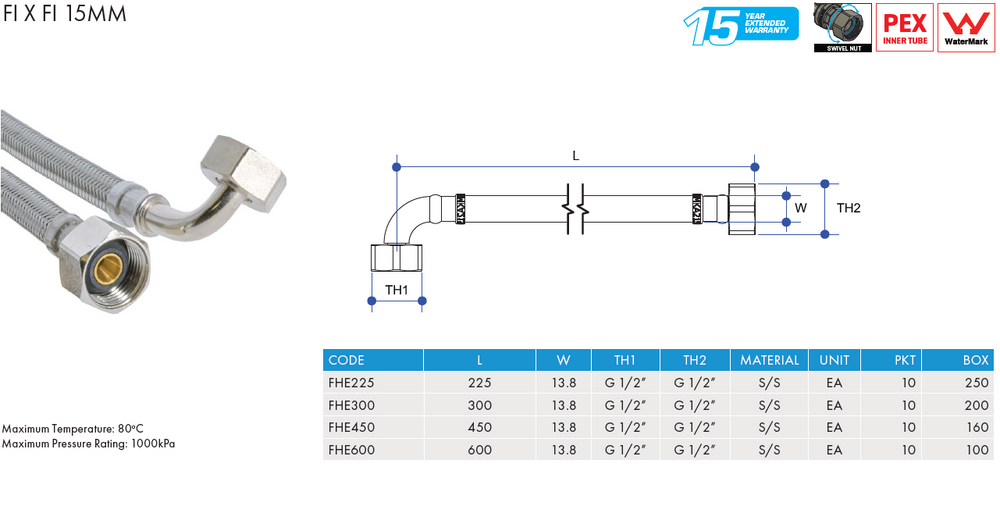

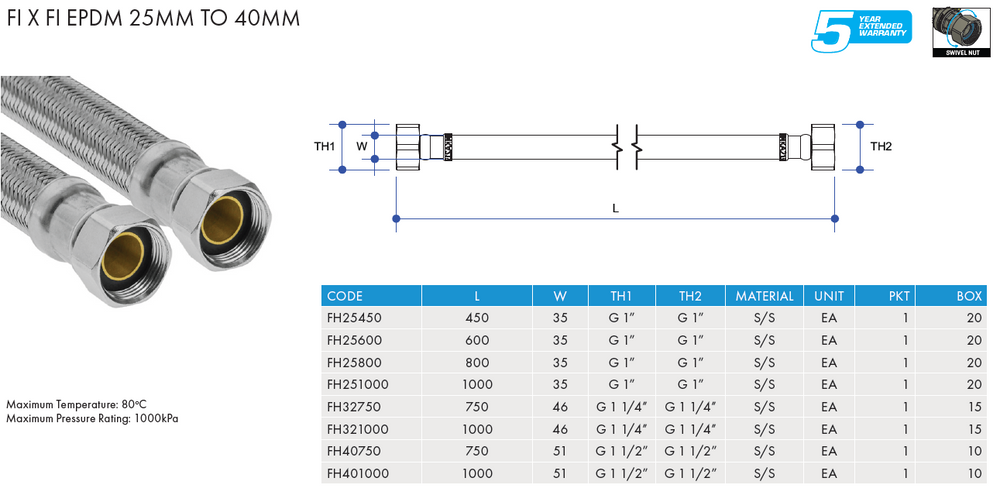

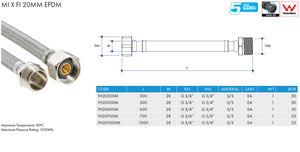

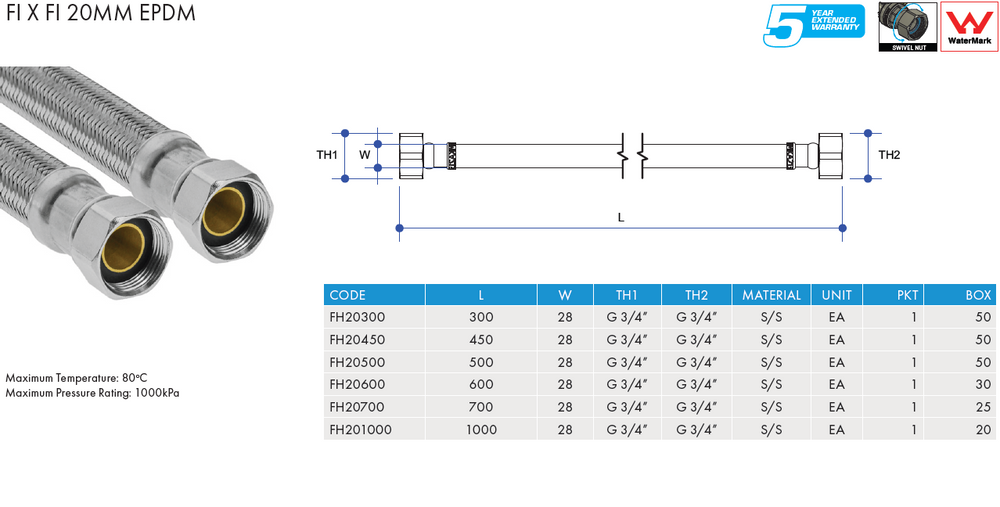

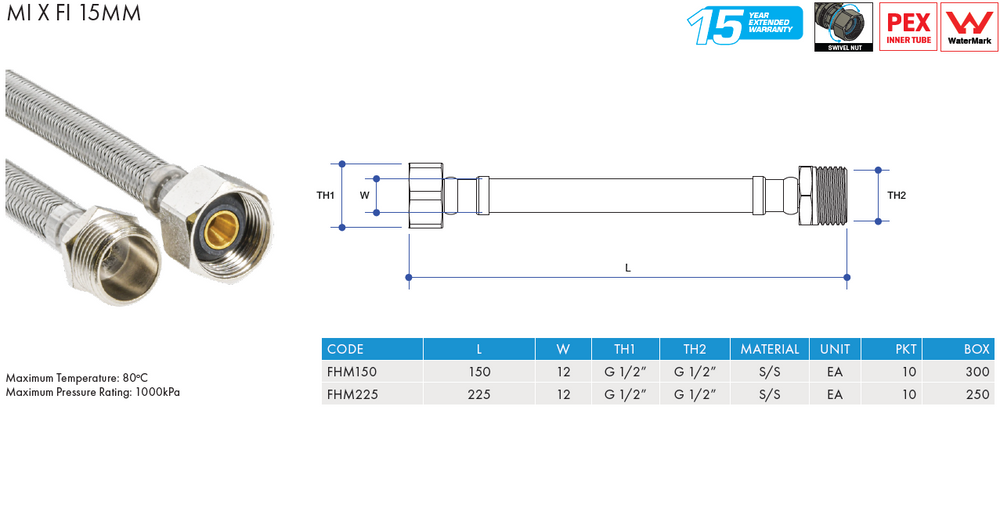

All Plumbing Online store offers the full range of AW stainless steel braided flexible hose varieties, which include lengths of 150-1000mm and end connection thread sizes of 15-40mm (1/2"-1 1/2") in either female loose swivel nuts or male threads. The full AW stainless steel braided hose model codes, configurations and schematic diagrams are shown in the photo gallery. Customers can search the model code names in my store for the required stainless steel braided flexible hoses.

Technical Details

• Manufacturer: AW (Austworld)
• Model: FH20700M
• Hose Spec: 20mm OD x 700mm Length
• Connection Threads: BSP 3/4" (20mm) Female Swivel Loose Nut and Male thread

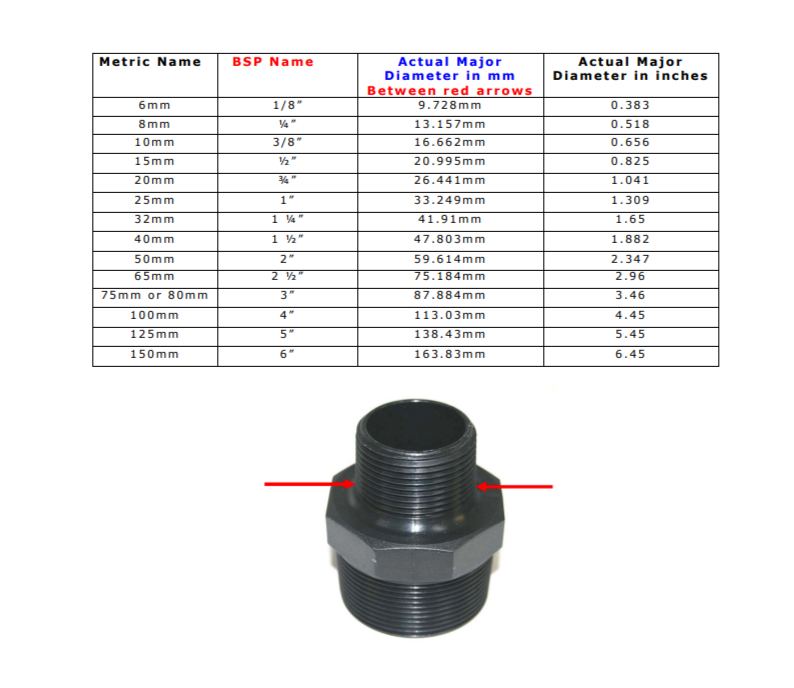

• Physical Thread Size Measurement: 26.411mm (refer the BSP sizing chart in the photo gallery)
• Specifications
• Maximum Temperature: 80 °C
• Maximum Pressure Rating: 1000 kPa
• Material: Stainless Steel and EPDM
• Features:
• Easy, fast and secure water connections
• Tool free in hard to reach places
• Intended Use: Toilet, washing machine, dish washer and under the sink connections
• SKU: FH20700M

Package Contents
- AW FH20700M Stainless Steel Flexible Hose

- Package Weight 450g
