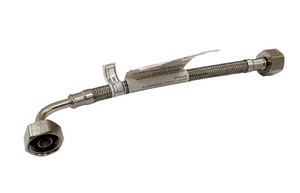

AW FHE225 Female Thread 15mm (½") x 225mm Elbow Stainless Steel Flexible Hose

Overview

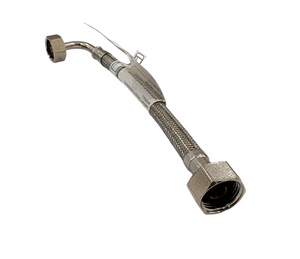

The AW FHE225 15mm (½") x 225mm DN15 female to female thread 90 degree elbow stainless steel braided flexible hose is 225mm in length and features BSP 1/2" 15mm swivel loose nuts at both ends. The 90 degree elbow helps avoid sharp bends in the hose otherwise present during some installation scenarios with a plain straight hose. This feature can not only improve the flow rate, but more importantly enhance the longevity of the flexible hoses'service lives.

The 15mm range of AW stainless steel flexible hoses use PEX inner tubes for a superior durability compared to traditional EPDM rubber materials, backed up with 15 years manufacturer warranty. The cone shaped seal inside the swivel loose nut allows for a secure and tool free installation using just a finger tight force especially in tight spaces where tools are difficult to reach.

The smaller diameter AW stainless steel flexible hoses are commonly used in toilet, washing machine, dish washer and under the kitchen sink connections. The larger diameter AW stainless steel flexible hoses are often used in commercial pump applications where a high flow rate is required to minimize pumping losses.

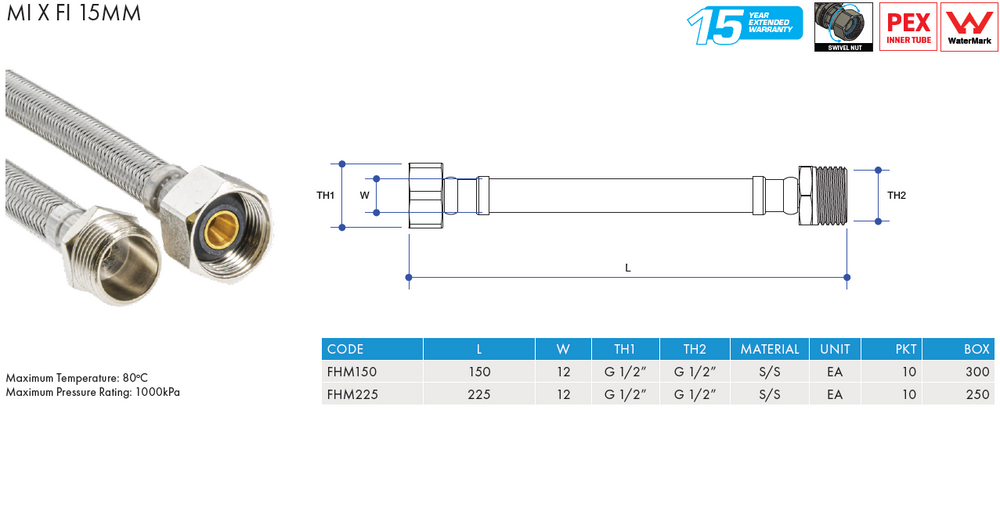

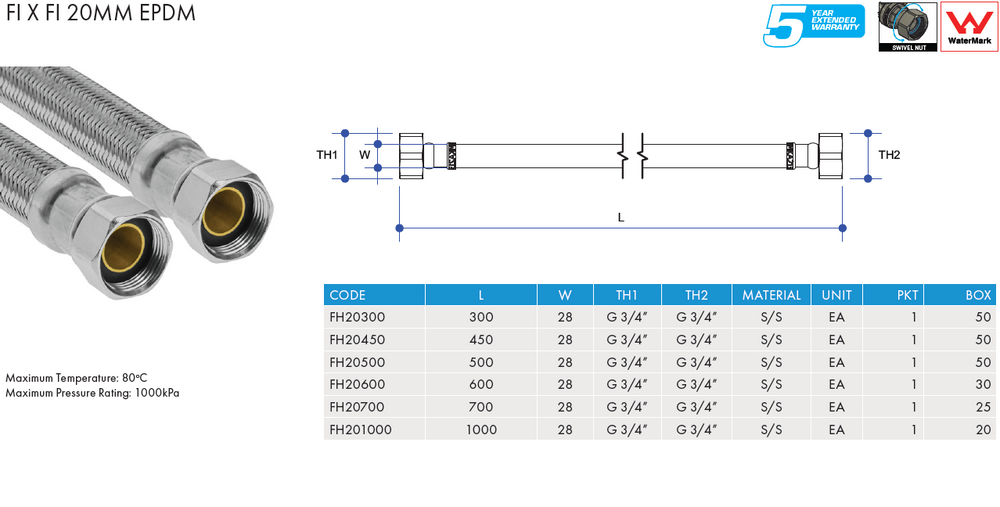

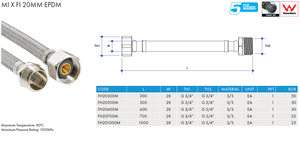

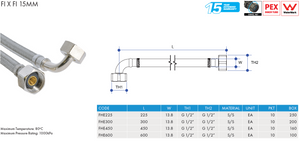

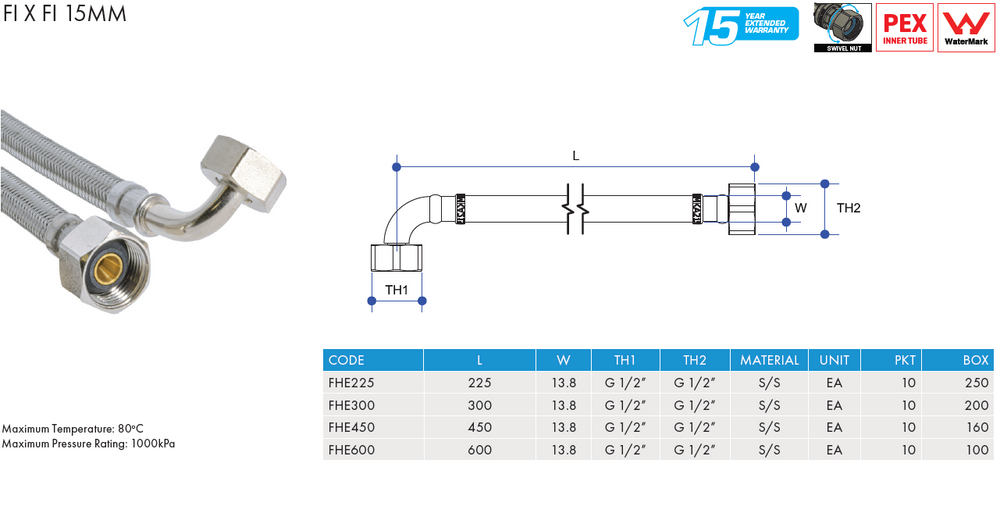

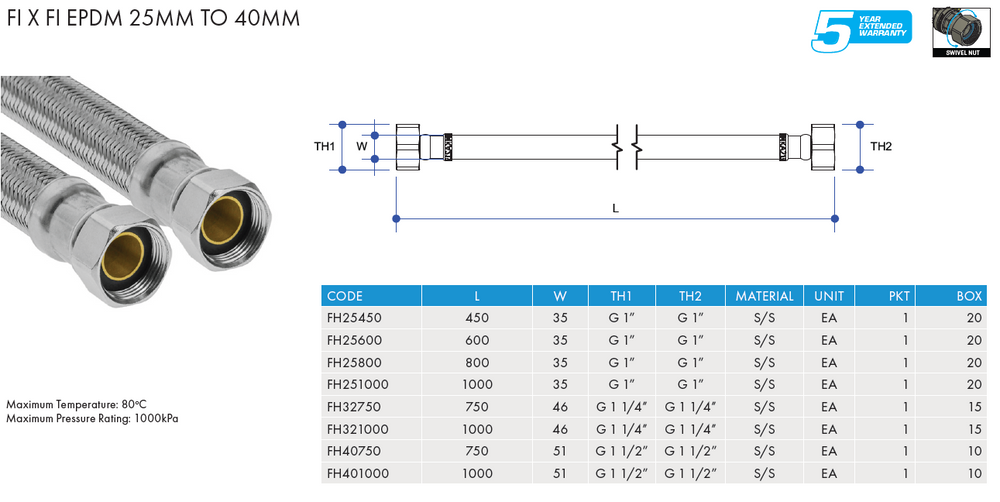

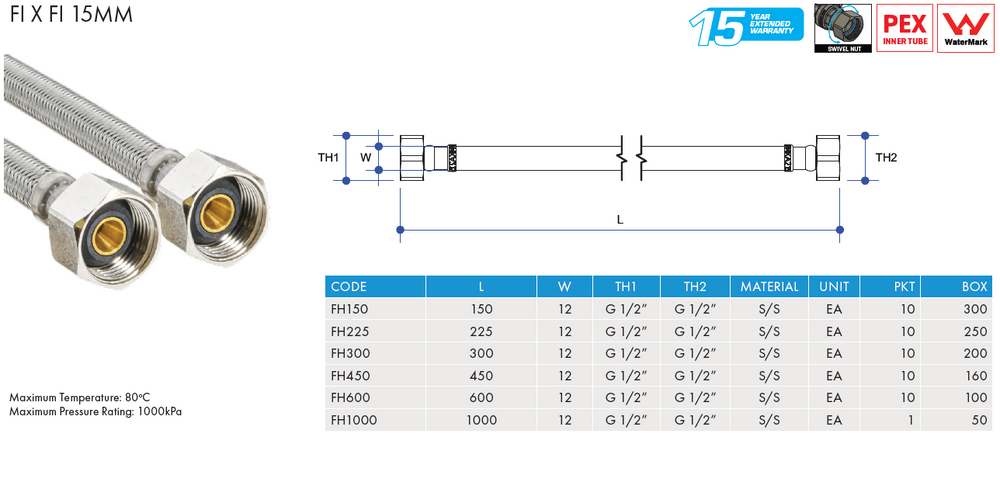

All Plumbing Online store offers the full range of AW stainless steel braided flexible hose varieties, which include lengths of 150-1000mm and end connection thread sizes of 15-40mm (1/2"-1 1/2") in either female loose swivel nuts or male threads. The full AW stainless steel braided hose model codes, configurations and schematic diagrams are shown in the photo gallery. Customers can search the model code names in my store for the required stainless steel braided flexible hoses.

Technical Details

• Manufacturer: AW (Austworld)
• Model: FHE225
• Hose Spec: 8mm ID x 225mm Length
• Connection Threads: BSP 1/2" (15mm) Female Swivel Loose Nut

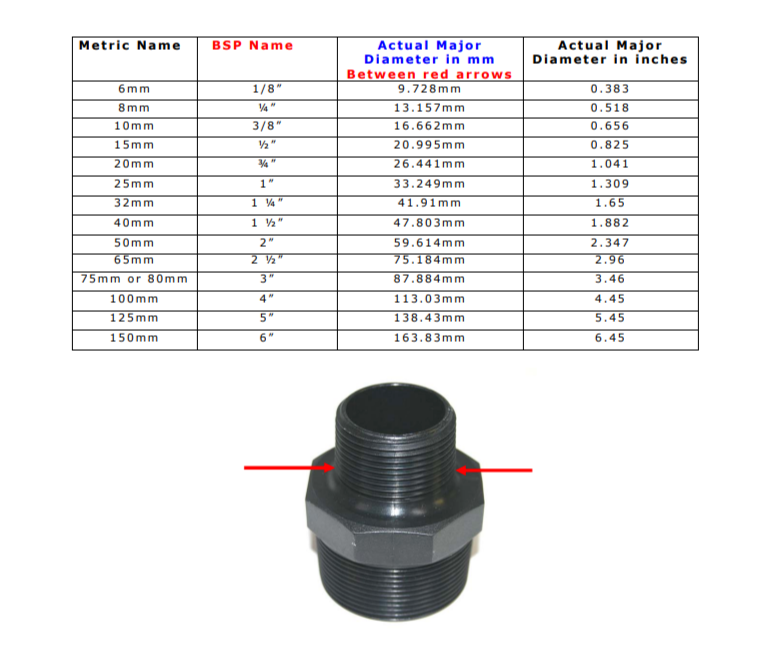

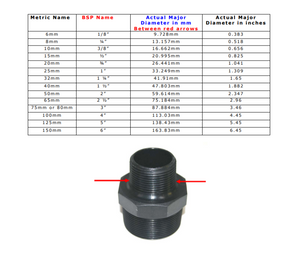

• Physical Thread Size Measurement: 20.995mm (refer the BSP sizing chart in the photo gallery)
• Specifications
• Maximum Temperature: 80 °C
• Maximum Pressure Rating: 1000 kPa
• Material: Stainless Steel and PEX
• Features:
• 90 degree stainless steel hard elbow at one end
• Easy, fast and secure water connections
• Tool free in hard to reach places
• Intended Use: Toilet, washing machine, dish washer and under the sink connections
• SKU: FHE225

Package Contents
- AW FHE225 Elbow Stainless Steel Flexible Hose

- Package Weight 100g
