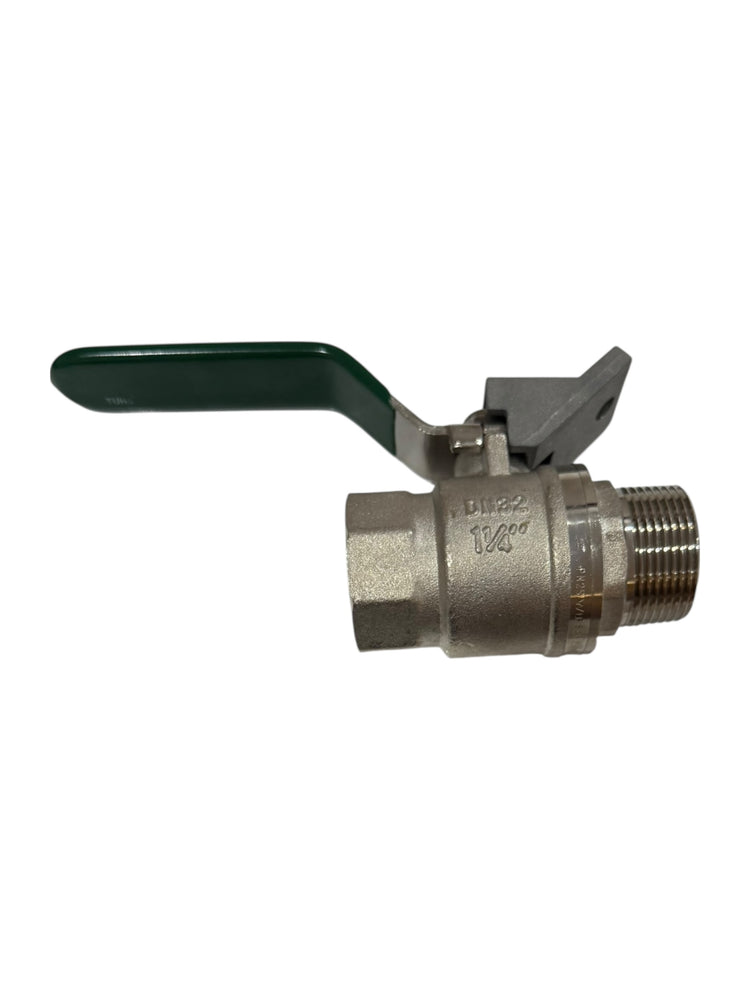

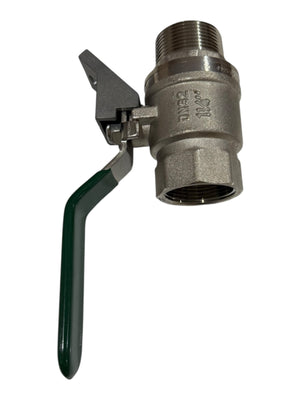

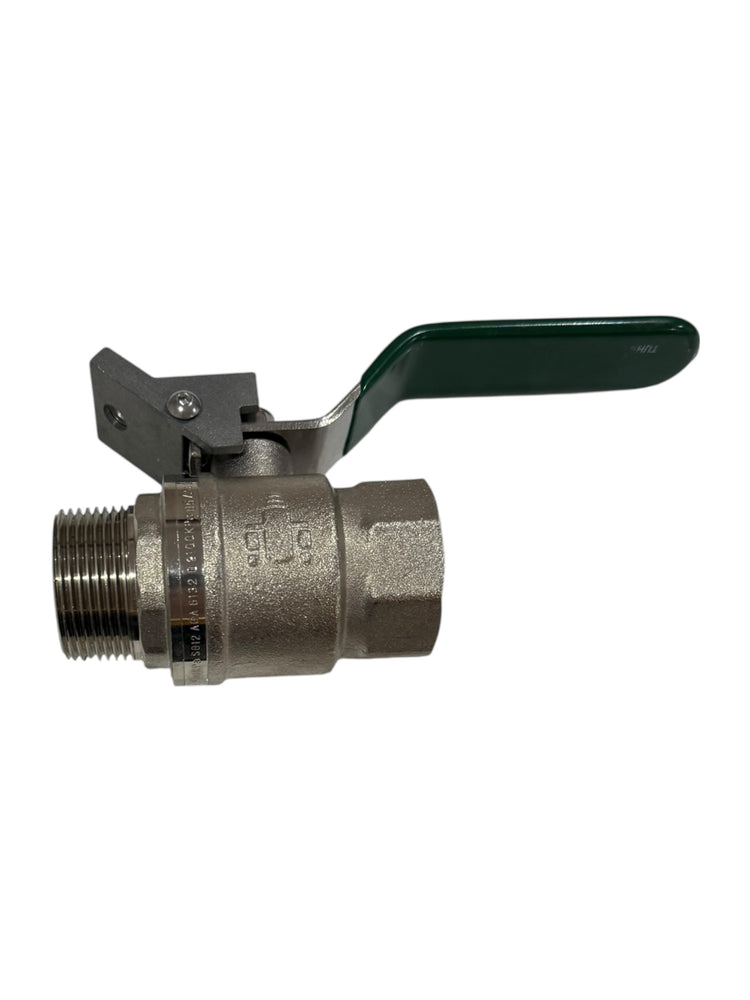

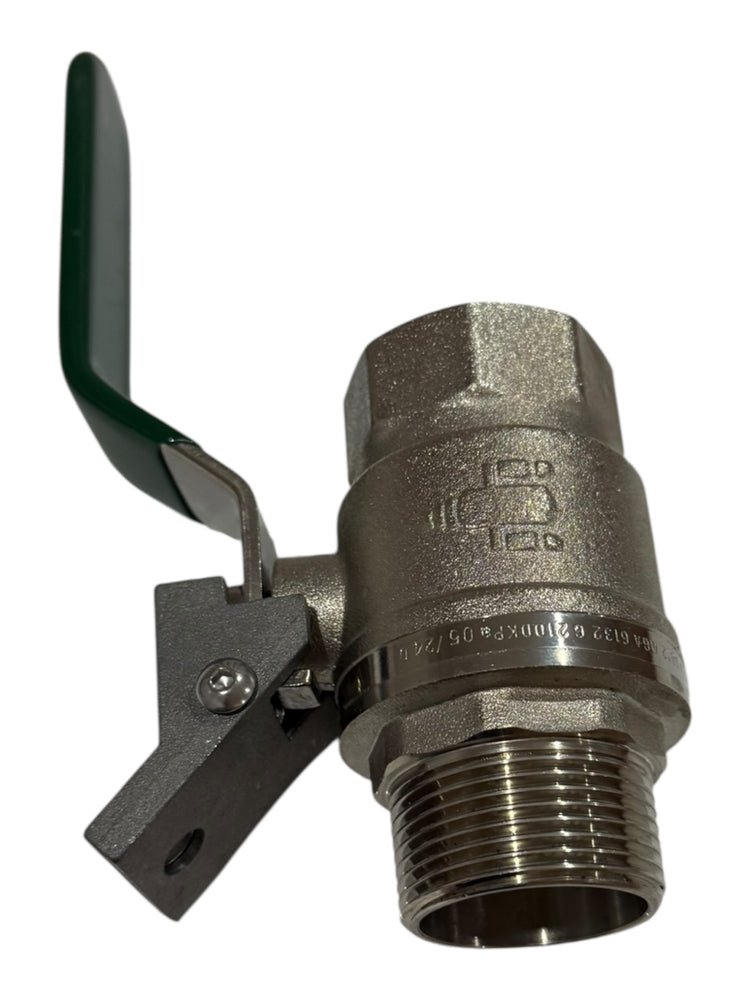

AW LW32MLF Watermark Lockable Lever Handle Ball Valve 32MM MI X FI

Overview:

The AUSTWORLD (AW) LW32MLF Ball Valve with Lockable Lever Handle is a dual-approved solution for gas and water systems, featuring a 32 mm (1 1/4") BSP MI x FI thread, full-bore design, and a corrosion-resistant nickel-plated finish. Constructed from lead-free, dezincification-resistant (DR) brass, it offers long-term reliability in demanding environments. The robust steel lever handle includes a lockable feature compatible with most standard padlocks, enhancing safety and security in residential, commercial, and solar hot water installations. Certified by both WaterMark and the Australian Gas Association (AGA), it meets strict standards for temperature, pressure, and performance.

Technical Details:

• Manufacturer: AUSTWORLD (AW)

• Model: LW32MLF

• Thread Size: 1 1/4" BSP (32 mm) MI x FI

• Thread Size Physical Measurement: 41.91 mm internal female thread diameter (refer to BSP sizing chart)

• Material: Lead-Free DR Brass Body, Nickel Plated

• Handle Material: Steel

• Handle Feature: Lockable Lever Handle (compatible with most padlocks)

• Design: Full-Bore for optimal flow efficiency

• Approvals: AGA Gas Approved & WaterMark Certified

• Intended Use: Natural Gas (NG), Liquefied Petroleum Gas (LPG), and Water

• Working Temperature Range: 1°C to 120°C

• Maximum Pressure: Gas – 2100 kPa, Water – 2500 kPa

• Application: Suitable for residential, commercial, and solar hot water systems

• Brand: AUSTWORLD (AW)

• SKU: LW32MLF

Package Contents:

• 1 × AW LW32MLF Dual-Approved Gas and Water Ball Valve

• Package Weight: 1000g
