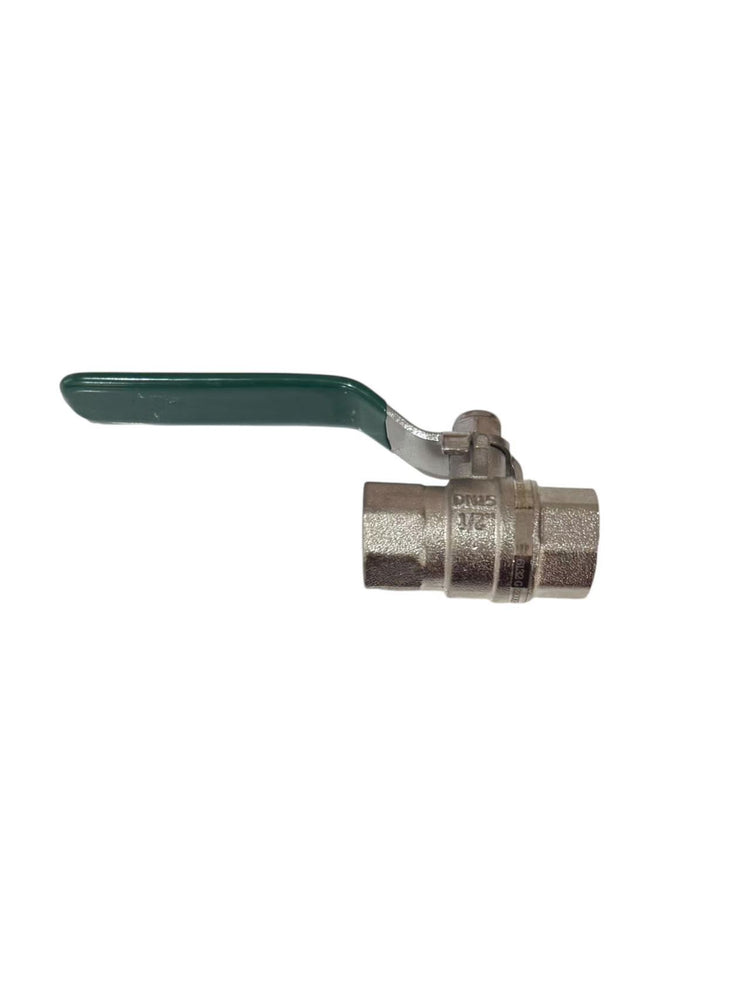

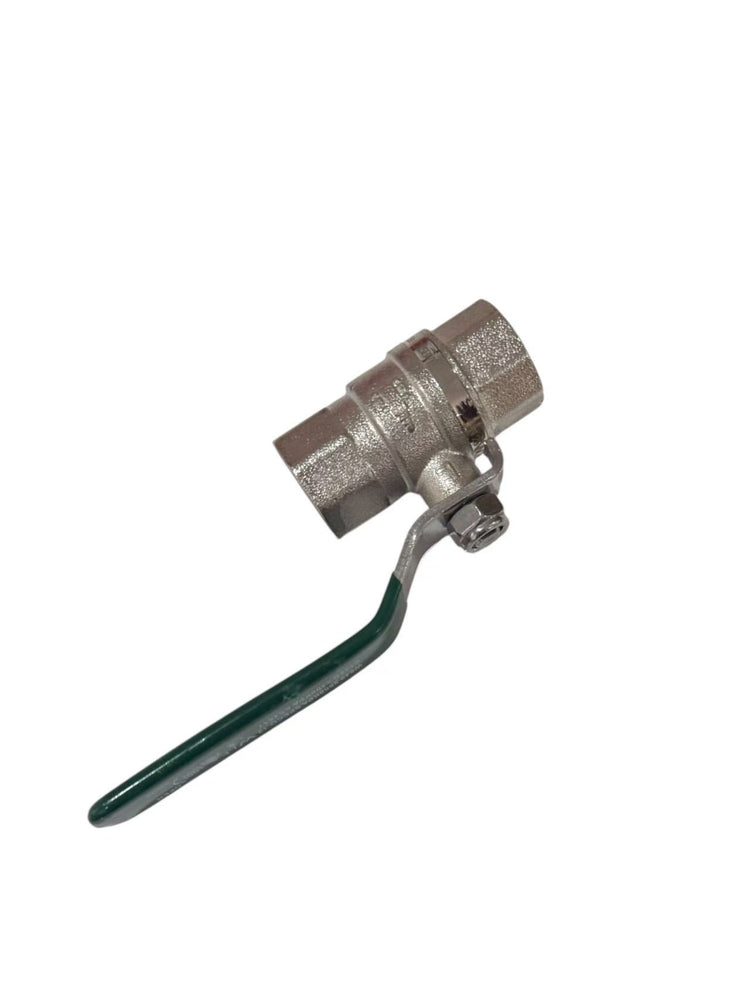

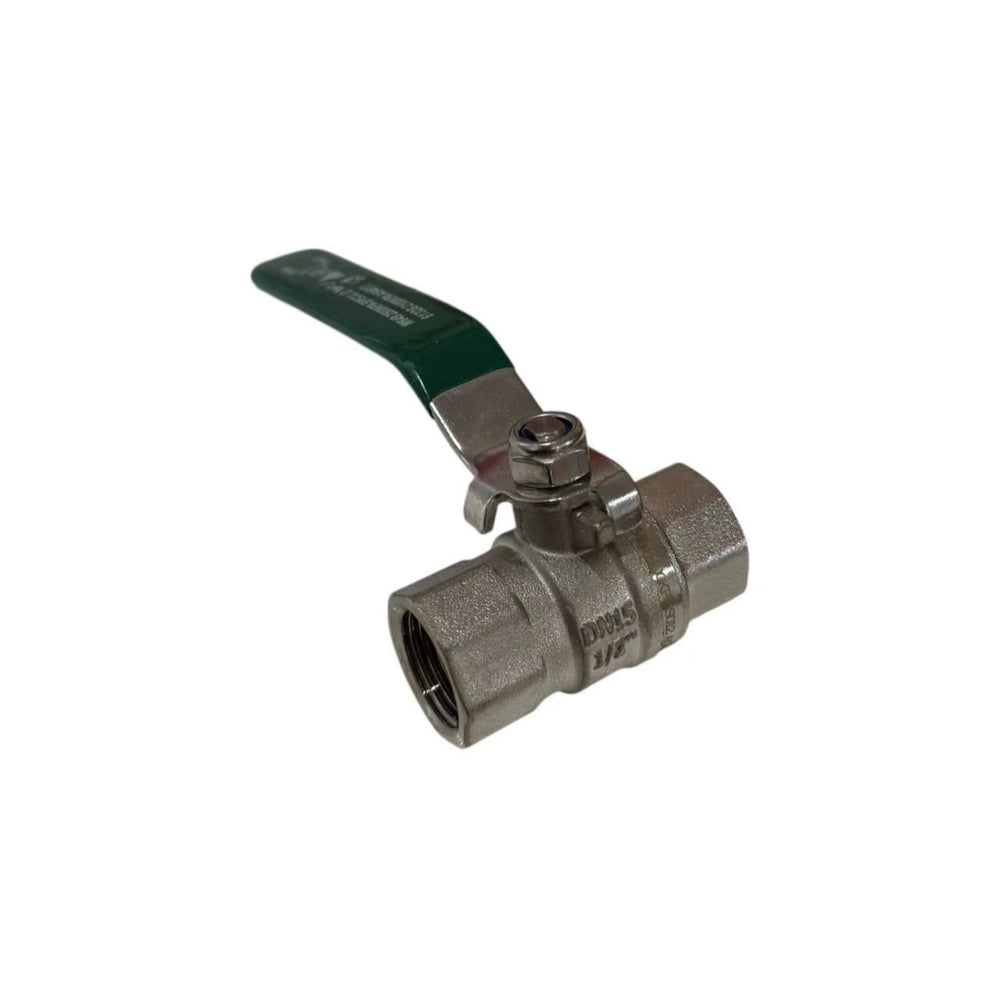

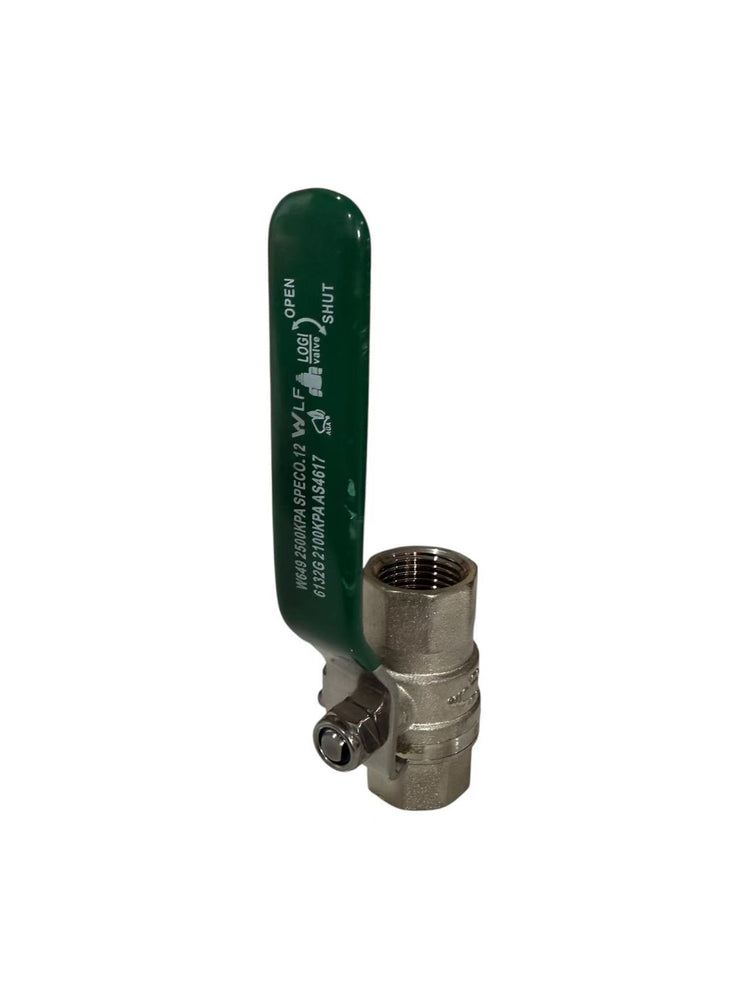

AW W15FLF Watermark Female Lever Handle Ball Valve 15MM FI X FI

Overview

The AUSTWORLD (AW) W15FLF Watermark Female Lever Handle 15MM Ball Valve is a dual-approved for gas and water applications. Featuring a 15 mm 1/2" female-to-female BSP thread and a durable lever handle, the valve is certified by both the Australian Gas Association (AGA) and WaterMark. The ball valve is constructed from lead free DR brass with a corrosion-resistant silver nickel-plating finish. The full-bore design ensures high flow efficiency. The ball valve is suitable for residential and commercial applications, including solar hot water systems, where a high temperature rating is required.

Technical Details

● Manufacturer: AUSTWORLD (AW)
● Model: W15FLF
● Thread Size: 1/2" BSP (15 mm) Female x Female Thread (15FI x 15FI)

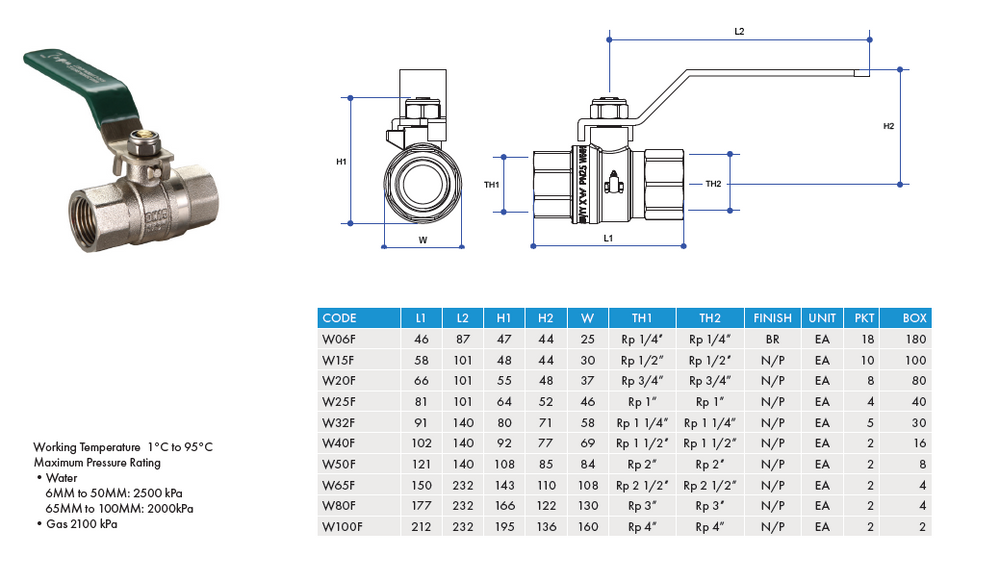

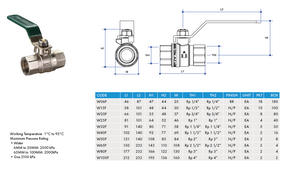

● Thread Size Physical Measurements: 20.995mm, Internal female physical thread diameter, (refer to the BSP sizing chart in the photo gallery)
● Material: Lead Free DR Brass Body, Nickel Plated
● Handle Material: Steel
● Features: Dual-approved for gas and water applications; suitable for solar water heating
● Approval: AGA Gas Approved & WaterMark Certified
● Intended Use: Natural Gas (NG), Liquefied Petroleum Gas (LPG), and Water
● Working Temperature: 1°C to 120°C
● Maximum Pressure: GAS 2100 kPa, Water 2500 kPa
● Brand: AUSTWORLD (AW)
● SKU: W15FLF

Package Contents

● 1 x AW W15FLF Dual-Approved Gas and Water Ball Valve
● Package Weight: 250g
