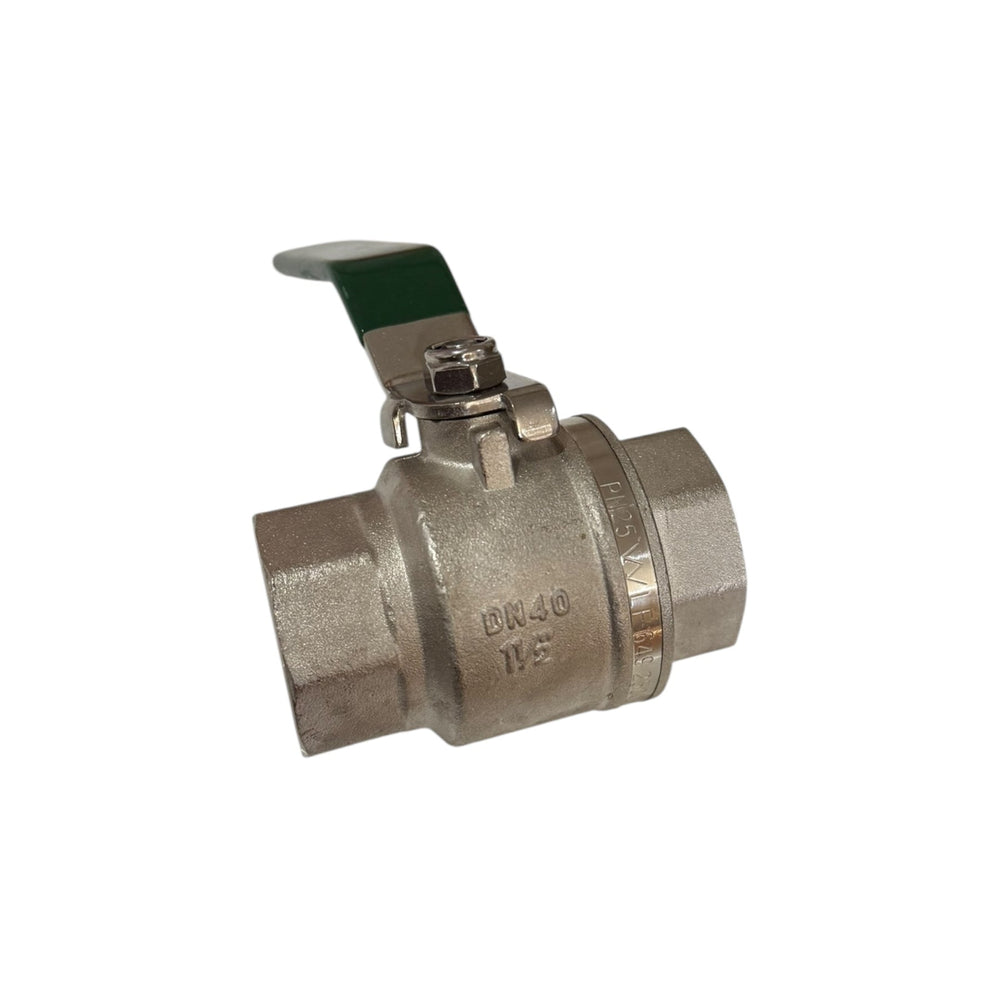

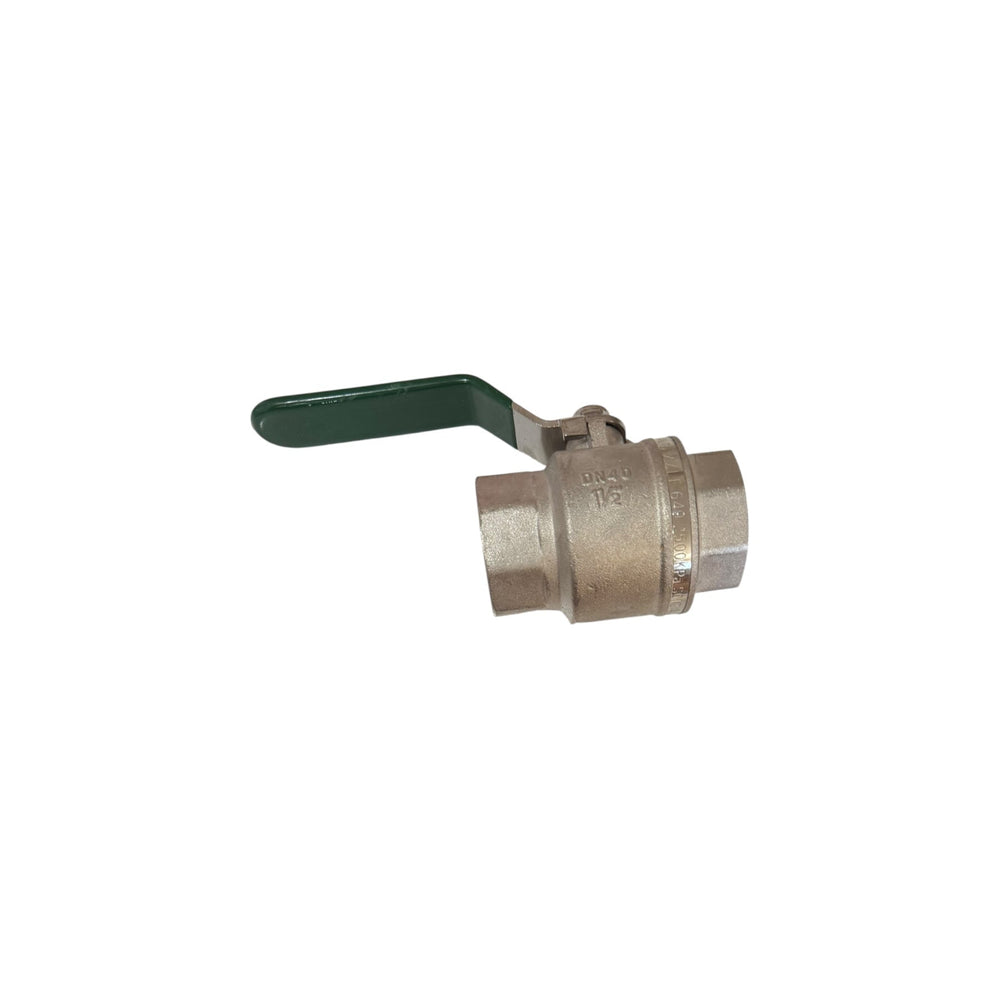

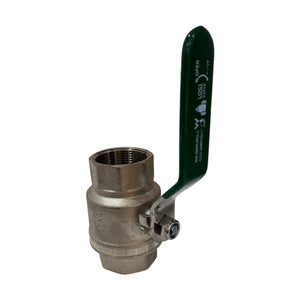

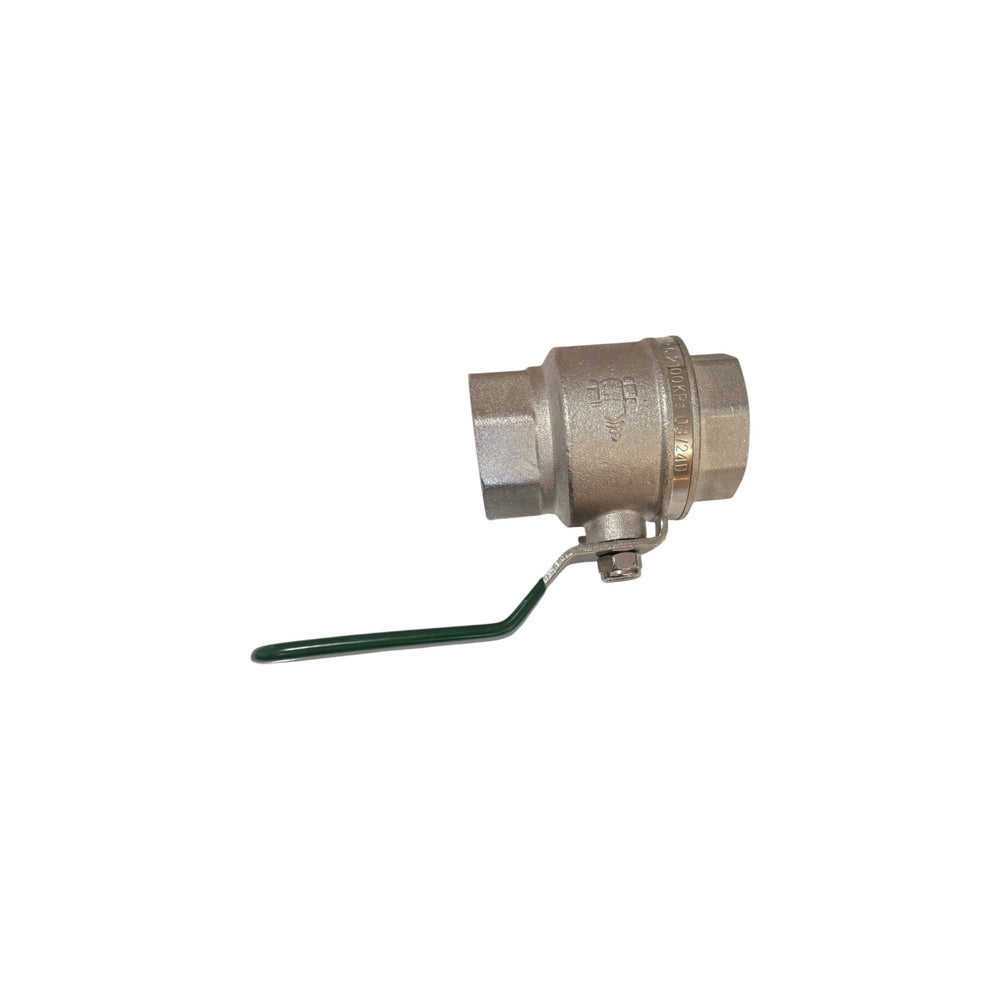

AW W40FLF Watermark Female Lever Handle Ball Valve 40MM FI X FI

Overview:

The AUSTWORLD (AW) W40FLF Watermark Female Lever Handle 40MM Ball Valve is a dual-approved for gas and water applications. Featuring a 40 mm 1 1/2" female-to-female BSP thread and a durable lever handle, the valve is certified by both the Australian Gas Association (AGA) and WaterMark. The ball valve is constructed from lead free DR brass with a corrosion-resistant. The full-bore design ensures high flow efficiency. The ball valve is suitable for residential and commercial applications, including solar hot water systems, where a high temperature rating is required.

Technical Details:

• Manufacturer: AUSTWORLD (AW)

• Model: W40FLF

• Thread Size: 1 1/2" BSP (40 mm) Female x Female Thread (40FI x 40FI)

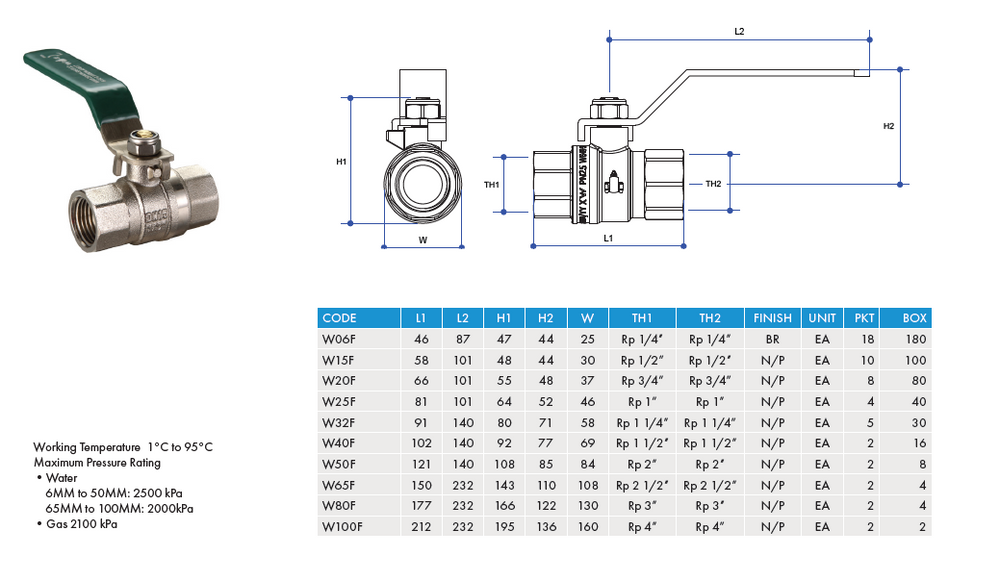

•    Thread Size Physical Measurements: 47.803mm, Internal female physical thread diameter, (refer to the BSP sizing chart in the photo gallery)

• Material: Lead Free DR Brass Body, Nickel Plated

• Handle Material: Steel

• Features: Dual-approved for gas and water applications; suitable for solar water heating

• Approval: AGA Gas Approved & WaterMark Certified

• Intended Use: Natural Gas (NG), Liquefied Petroleum Gas (LPG), and Water

• Working Temperature: 1°C to 120°C

• Maximum Pressure: GAS 2100 kPa, Water 2500 kPa

• Brand: AUSTWORLD (AW)

• SKU: W40FLF

Package Contents:

• 1 x AW W40FLF Dual-Approved Gas and Water Ball Valve

• Package Weight: 1300g
