AW W40MLF Watermark Male to Female Lever Handle Ball Valve 40MM

Overview

The AUSTWORLD (AW) W40MLF is a dual-approved ball valve designed for use in both gas and water systems. Featuring a 40mm male-to-female BSP thread and a durable lever handle, the valve is certified by both the Australian Gas Association (AGA) and WaterMark. Manufactured from lead-free dezincification-resistant (DR) brass and finished in corrosion-resistant nickel plating, the valve offers long-term performance in demanding environments. The full-bore design ensures optimal flow efficiency, making it suitable for residential and commercial installations, including solar hot water systems where high temperature and pressure performance is essential.

Technical Details

● Manufacturer: AUSTWORLD (AW)
● Model: W40MLF
● Thread Size: 1 1/2" BSP (40 mm) Female x Male Thread (40FI x 40MI)

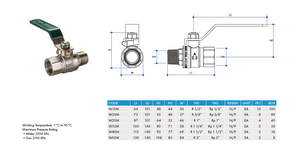

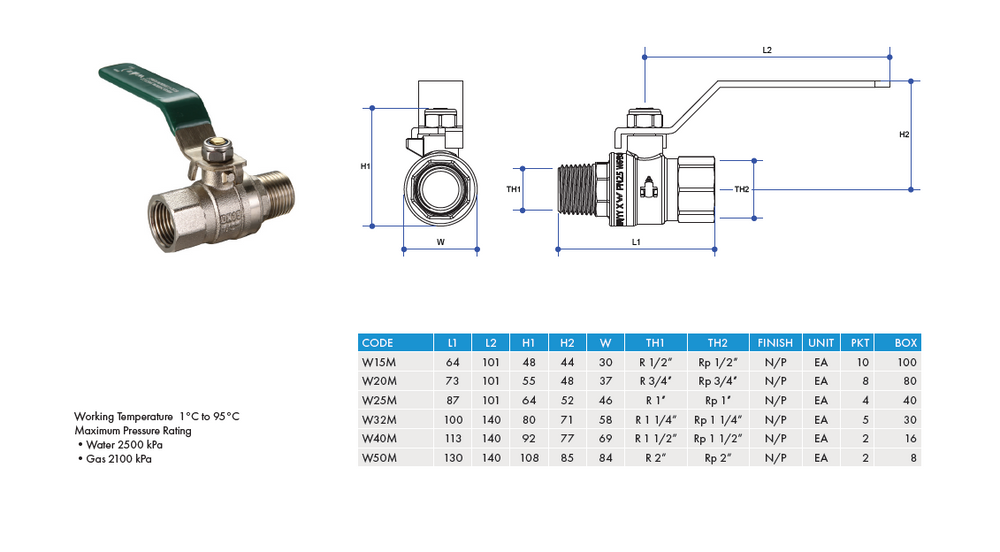

● Thread Size Physical Measurements: 47.803mm, Internal female physical thread diameter, (refer to the BSP sizing chart in the photo gallery)
● Material: Lead-Free DR Brass Body, Nickel Plated
● Handle Material: Steel
● Features: Dual-approved for gas and water; suitable for solar hot water systems
● Approval: AGA Gas Approved & WaterMark Certified
● Intended Use: Natural Gas (NG), Liquefied Petroleum Gas (LPG), and Water
● Working Temperature: 1°C to 120°C
● Maximum Pressure: Gas – 2100 kPa, Water – 2500 kPa
● Brand: AUSTWORLD (AW)
● SKU: W40MLF

Package Contents

● 1 × AW W40MLF Dual-Approved Gas and Water Ball Valve
● Package Weight: 1500g
