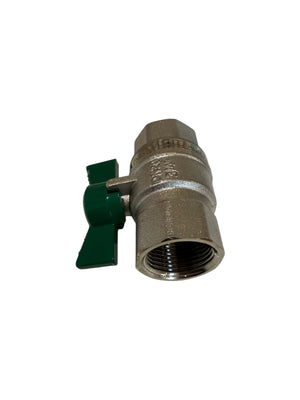

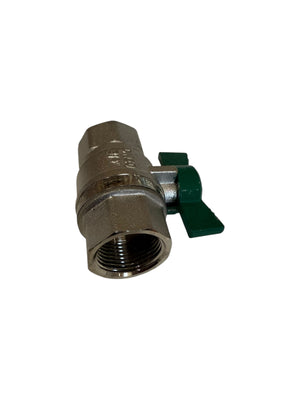

AW WB20FG Butterfly Handle Gas Ball Valve 20mm FI to FI

Overview:
The AUSTWORLD (AW) WB20FG is a dual-certified ball valve incorporating a 20 mm female-to-female BSP thread and butterfly handle. Certified under both the Australian WaterMark scheme and the AGA gas approval standard, this valve is compatible with a wide range of water and gas systems. Constructed from dezincification-resistant, low-lead brass and finished with nickel plating, the valve offers high durability and corrosion resistance. The high-temperature tolerance makes the valve suitable for solar hot water applications. A full-bore design enables efficient, unrestricted flow across residential and commercial installations.

Technical Details:
• Manufacturer: AUSTWORLD (AW)
• Model: WB20FG
• Thread Size: 3/4" BSP (15 mm) Female Thread (20FI x 20FI)
• Material: DZR (Dezincification-Resistant) Brass Body, Nickel Plated
• Handle Material: Aluminium
• Features: Dual-certified for gas and water, full-bore design.
• Approval: AGA Gas Approved and WaterMarked
• Intended Use: Natural Gas (NG), Liquefied Petroleum Gas (LPG), or water connections
• Working Temperature (Water): 1°C to 95°C
• Maximum Pressure Rating: Gas: 2100 kPa / Water: 2500 kPa
• SKU: WB20FG

Package Contents:
• 1 x AW WB20FG AGA Gas and WaterMarked Approved Ball Valve
• Package Weight: 280g
