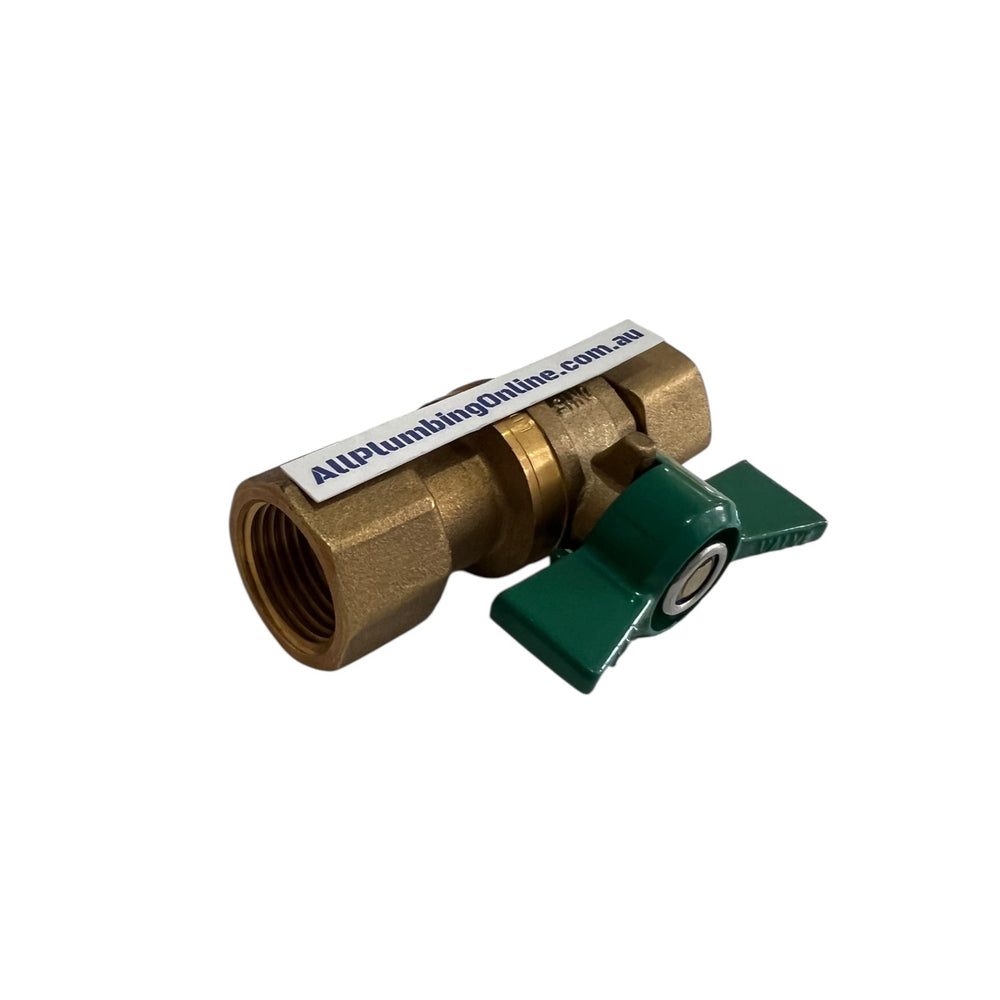

Load image into Gallery viewer, AW WDF15S Female Swivel Valve
Load image into Gallery viewer, AW Female Swivel Valve

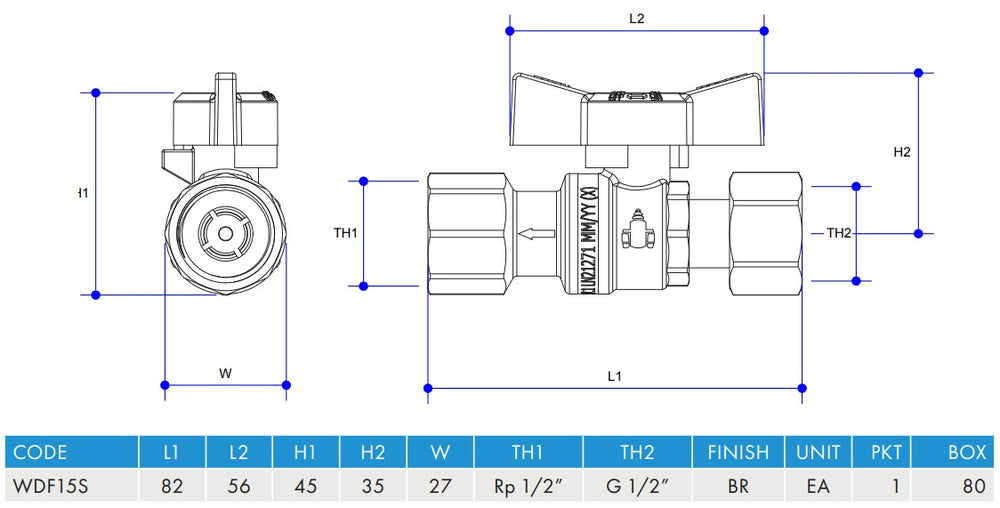

Load image into Gallery viewer, AW WDF15S measurements
Load image into Gallery viewer, AW WDF15S Valve
Load image into Gallery viewer, Non Return Isolation Swivel Duo Valve
Load image into Gallery viewer, Non Return Isolation Swivel Duo Valve
Load image into Gallery viewer, Non Return Isolation Duo Valve Materials
Load image into Gallery viewer, BSP Sizing Chart
On Sale

AW

SKU: AW-WDF15S

AW WDF15S Female to Swivel Loose Nut 15mm Non Return Isolation Duo Valve

  • - 0%
    • $17.00
    ( / )
    Tax included. Shipping calculated at checkout.
    Click here to be notified by email when AW WDF15S Female to Swivel Loose Nut 15mm Non Return Isolation Duo Valve becomes available.

    Overview
    AW (Austworld) Logi WDF15S 15mm ½” female to swivel loose nut non-return isolation duo valve is Watermark approved. The non return isolation duo valve features a durable metal butterfly handle and an inbuilt one-way check valve which isolates the residential hot water system from the mains supply. The duo valve can be manually switched on and off with its quarter turn ball valve operation, allowing for easy maintenances and services.


    Technical Details
    •    Manufacturer: AUSTWORLD (AW)
    •    Model: WDF15S
    •    Thread Size: 1/2" BSP (15mm) Female To Swivel Loose Nut (15FI x 15 SWIVEL FI)
    •    Physical Thread Measurement: 20.995mm female internal; Refer to the BSP sizing chart in the photo gallery
    •    Material: DR Brass Body
    •    Features: Quarter turn ball valve operation with metal butterfly handle
    •    Australian Watermark Approved
    •    Working temperature: 1°C to 90°C
    •    Maximum pressure rating: 1400 KPa
    •    Intended Use: Hot water service isolation
    •    SKU: AW-WDF15S

    Package Contents
    •    AW WDF15S non-return isolation duo valve
    •    Package Weight: 210g
