AW WDF15SPF Press Fitting to Swivel Loose Nut 15mm Non Return Isolation Duo Valve

Overview

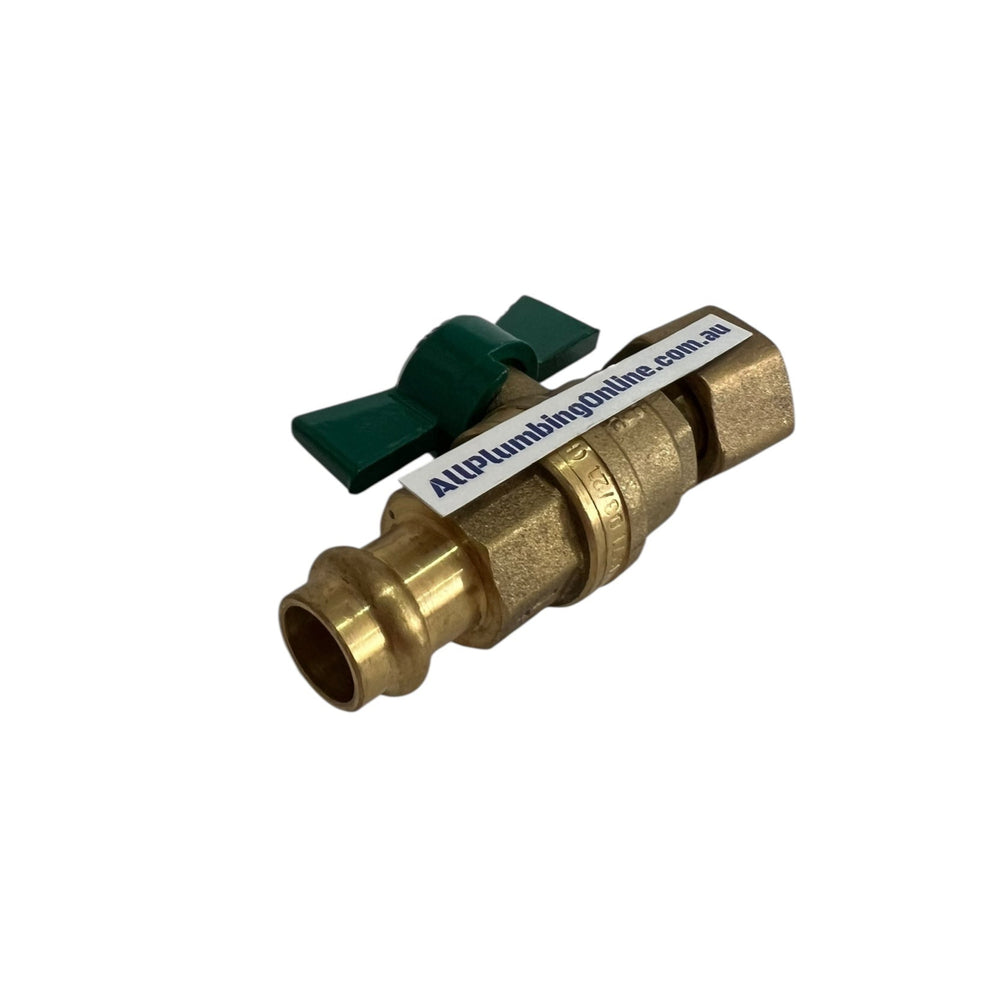

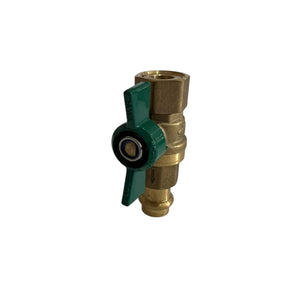

AW (Austworld) Logi WDF15SPF 15mm ½” press fitting to swivel loose nut non-return isolation duo valve is Watermark approved. The non return isolation duo valve features a durable metal butterfly handle and an inbuilt one-way check valve which isolates the residential hot water system from the mains supply. The duo valve can be manually switched on and off with its quarter turn ball valve operation, allowing for easy maintenances and services.

Technical Details
•    Manufacturer: AUSTWORLD (AW)
•    Model: WDF15SPF

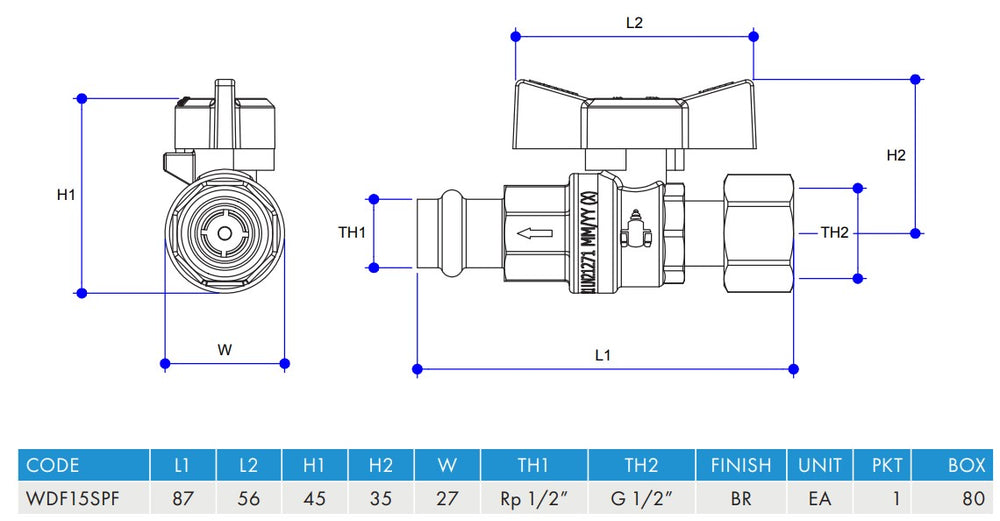

•    Thread Size: 1/2" BSP (15mm) Press Fitting to Swivel Loose Nut (DN15 PRESS x 15 SWIVEL FI)
•    Physical Thread Measurement: 20.995mm female internal; Refer to the BSP sizing chart in the photo gallery
•    Material: DR Brass Body
•    Features: Quarter turn ball valve operation with metal butterfly handle
•    Australian Watermark Approved
•    Working temperature: 1°C to 90°C
•    Maximum pressure rating: 1400 KPa
•    Intended Use: Hot water service isolation
•    SKU: AW-WDF15SPF

Package Contents

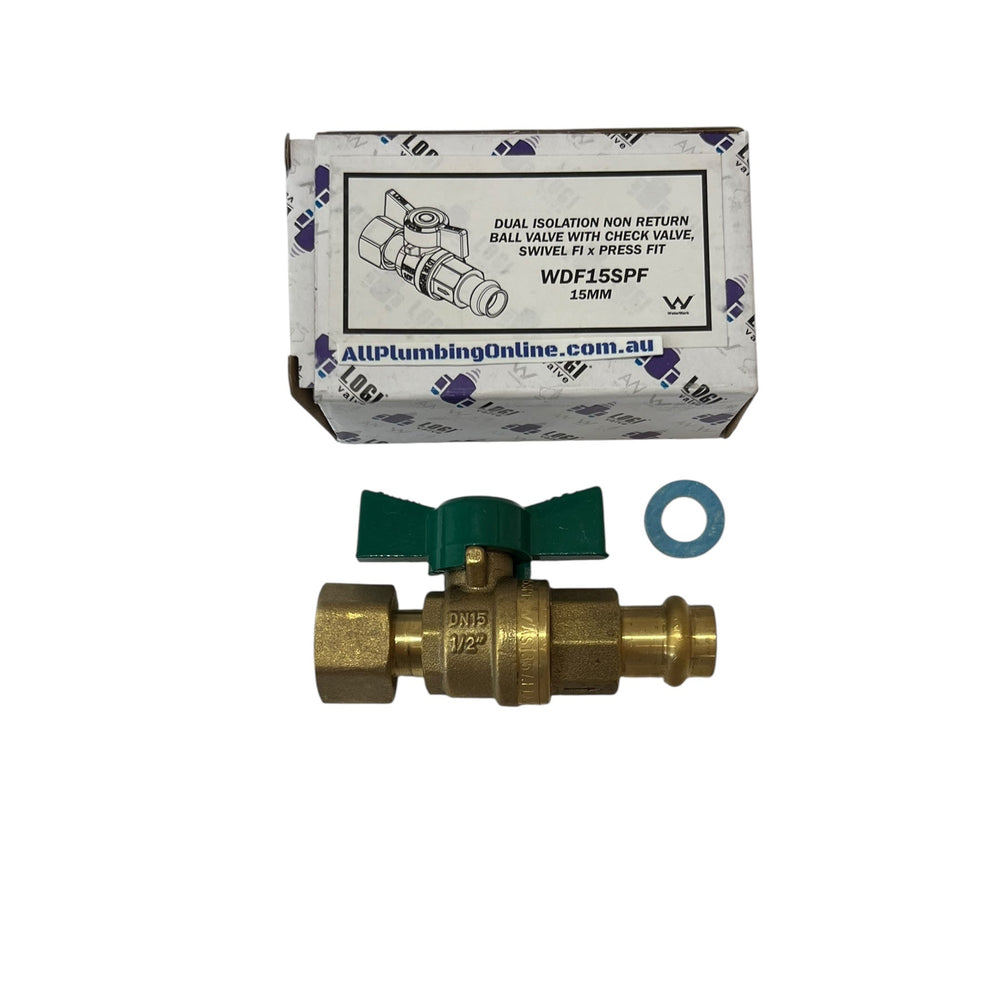

•    AW WDF15SPF non-return isolation duo valve
•    Package Weight: 210g
