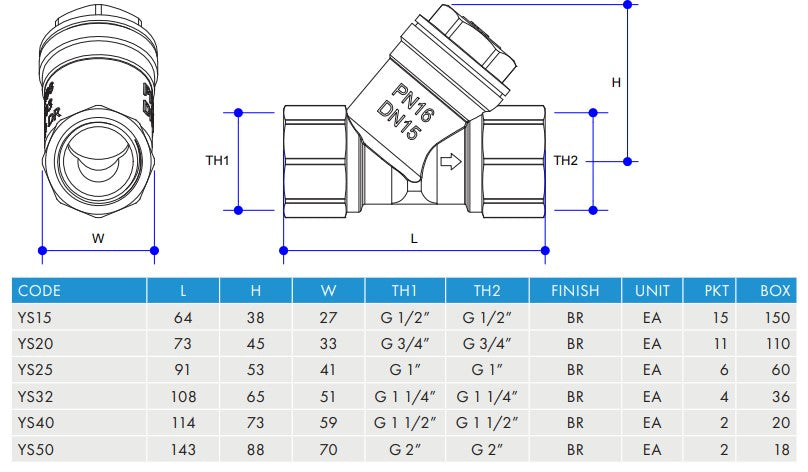

Load image into Gallery viewer, AW Y Strainer Measurements

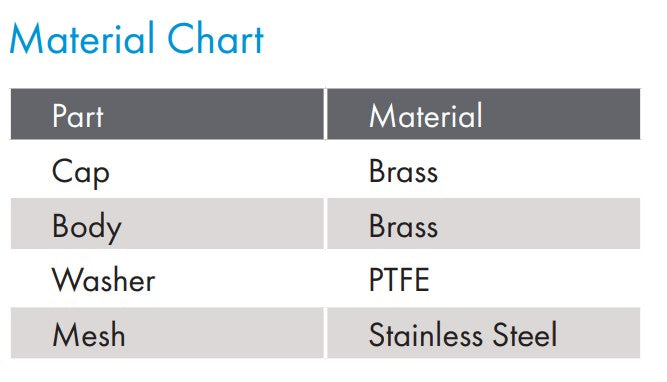

Load image into Gallery viewer, AW Y Strainer Materials
Load image into Gallery viewer, BSP Sizing Chart
On Sale

AW

SKU: AW-YS50

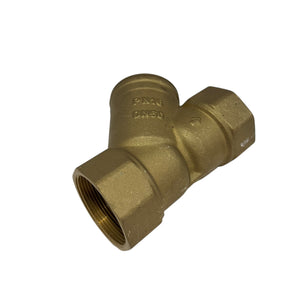

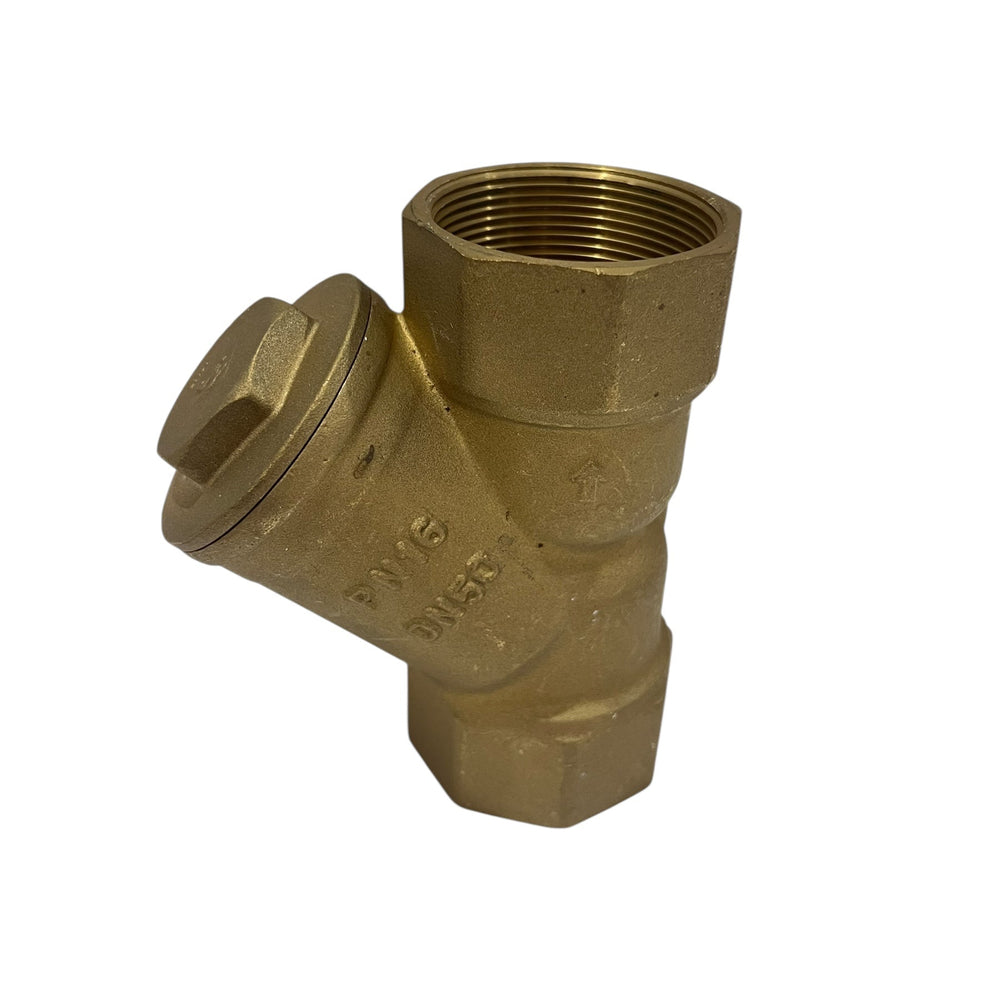

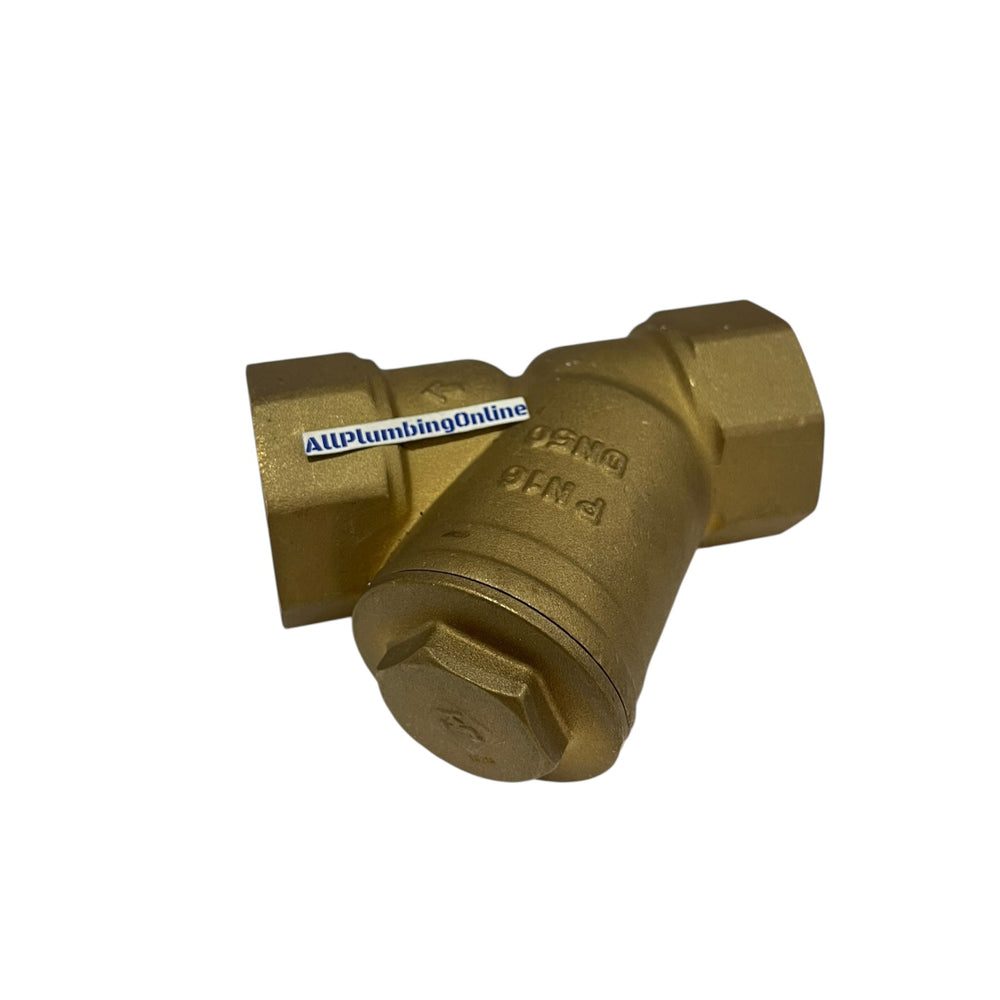

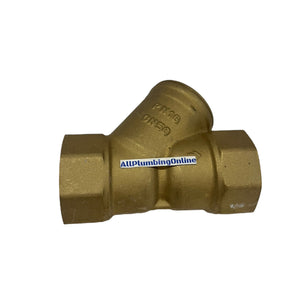

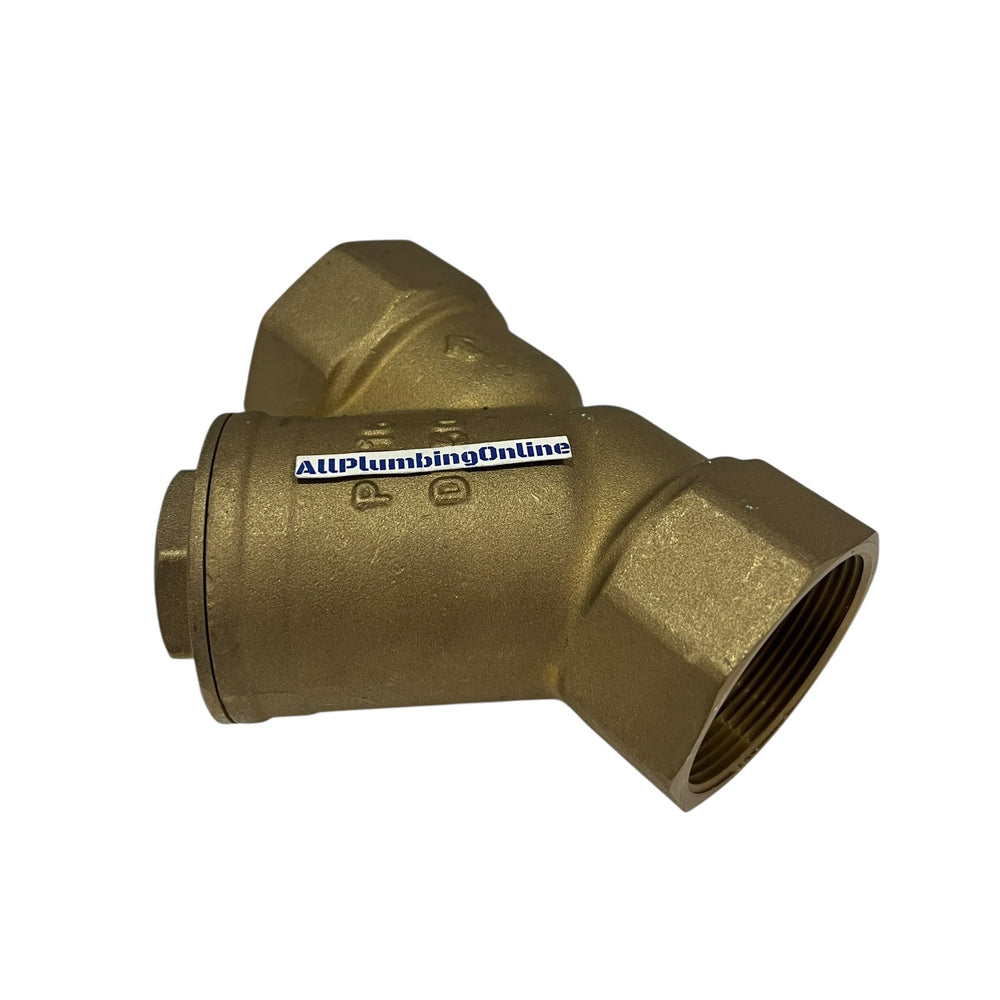

AW YS50 General Purpose Y Strainer 50mm

  • - 0%
    • $63.00
    ( / )
    Tax included. Shipping calculated at checkout.
    Click here to be notified by email when AW YS50 General Purpose Y Strainer 50mm becomes available.

    Overview
    AUSTWORLD (AW) Logi YS50 50mm 2” general purpose Y Strainer is suitable for non-potable water applications such as pumping and irrigations. The Y Strainer features a serviceable stainless-steel mesh, which filters debris from the water stream. The Y Strainer is directional for maximum filtration efficiency. An arrow on the valve body indicates the flow direction.


    Technical Details
    •    Manufacturer: AUSTWORLD (AW)
    •    Model: AW-YS50
    •    Thread Size: 2” BSP (50mm) Female FI Thread (50FI x 50FI)
    •    Physical Thread Measurement: 59.614mm Female Internal Thread; Refer to the BSP sizing chart in the photo gallery
    •    Material: Brass Body and Stainless-steel mesh
    •    Features: Replaceable stainless-steel mesh filter strainer
    •    Working temperature: 1°C to 99°C
    •    Maximum pressure rating: 1600 KPa
    •    Intended Use: water filtration
    •    SKU: AW-YS50

    Package Contents
    •    AW YS50 General Purpose Y Strainer
    •    Package Weight: 1280g
