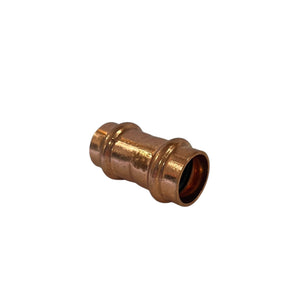

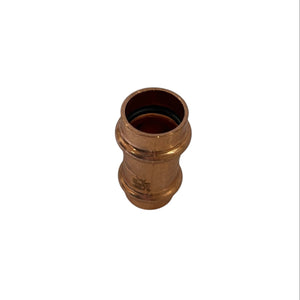

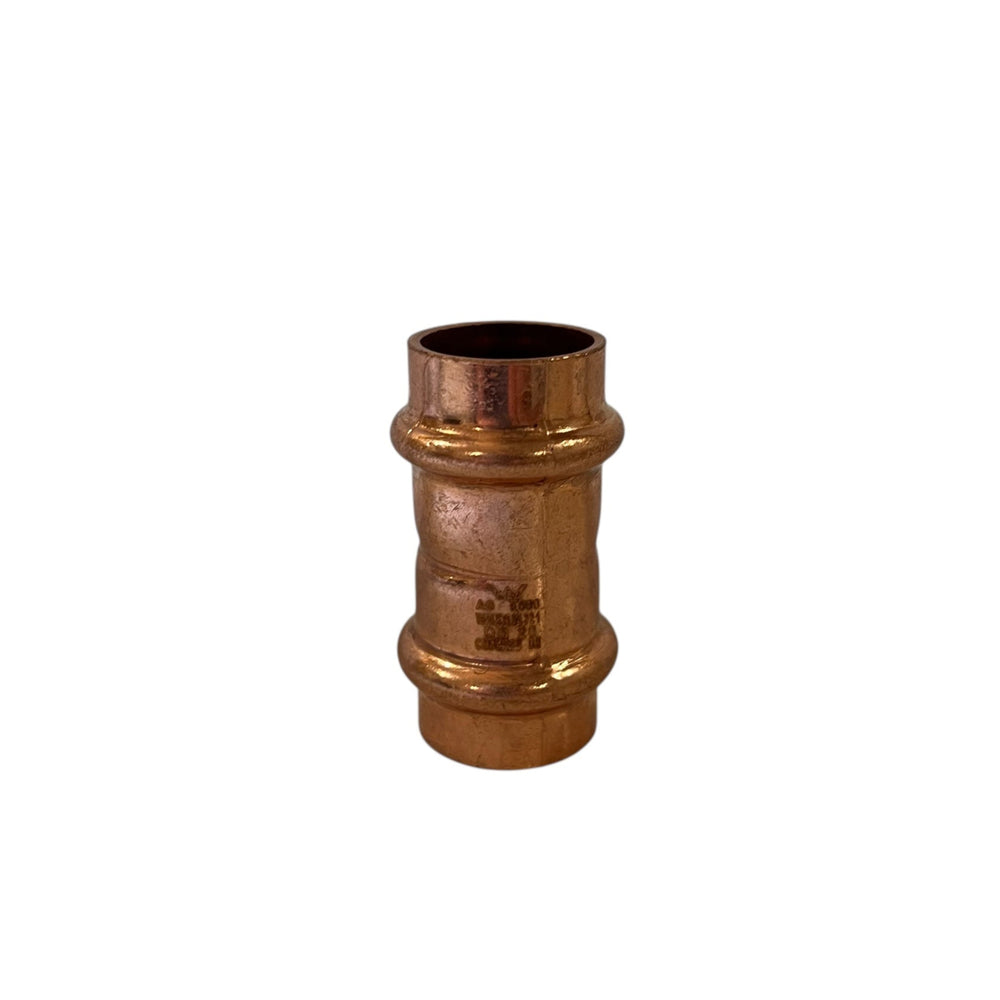

Brasshards Cupress 4CPC020 Copper Water Press Fitting 20mm ¾" Straight Coupling
Overview
Brasshards Cupress 4CPC020 20mm 3/4" water copper press straight coupling DN20 crimp socket union is compatible with all popular press tools and their copper press systems such as Viega, Connex Banninger B Press and Kembla Kempress.
The Brasshards Cupress copper straight coupling features a lip at either end of the fitting. The lips help align the actual press areas along the copper pipes and provide extra sealing material when pressed. The black sealing ring is made of EPDM O-ring for portable water applications with a temperature range of -20 - 110 °C and a maximum pressure rating of 1600kPa.
With all Brasshards Cupress copper press straight couplings, there is an inbuilt stopper at the centre of the fitting to help stop the copper pipe sliding through. This feature prevents the copper pipe going too deep at one end of the coupling and ensures sufficient copper pipe length can be inserted at the other end of the coupling. This design is in contrast to a slip repair servicing coupling, which has no stopper and can slide over a copper pipe.
The Brasshards Cupress copper press fittings have a slug fit over the copper pipes and will remain in place until the press tool is applied, allowing easy installations and adjustments. Once pressed and secured by the correct press tool, the fitting will not dent or deform the internal copper to ensure unhindered water flow. These features have made the Brasshards copper press systems a faster and safer connections to conventional compression or capillary systems.
Technical Details
Manufacturer: Brasshards
Specifications:
Maximum Working Pressure: 1600 kPa
Temperature Range: -20°C to 110°C
Watermarked
Suitable for Australian AS1432 standard 20mm 3/4" hard, half hard or annealed type A and B copper tubes
Materials: Copper, EPDM O-ring
Features: Tamper free permanent joint, no soldering required, fast and cost effective to install
Intended Use: Joining water copper pipes
SKU: 4CPC020
Package Contents
Single Brasshards Cupress 4CPC020 20mm 3/4" copper press straight coupling
Package Weight: 42g
