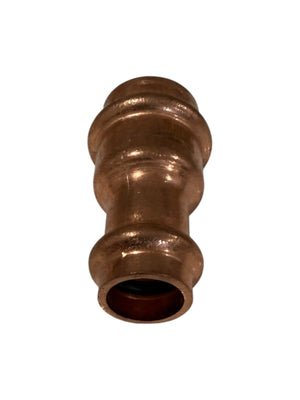

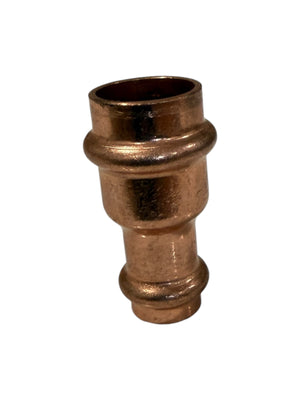

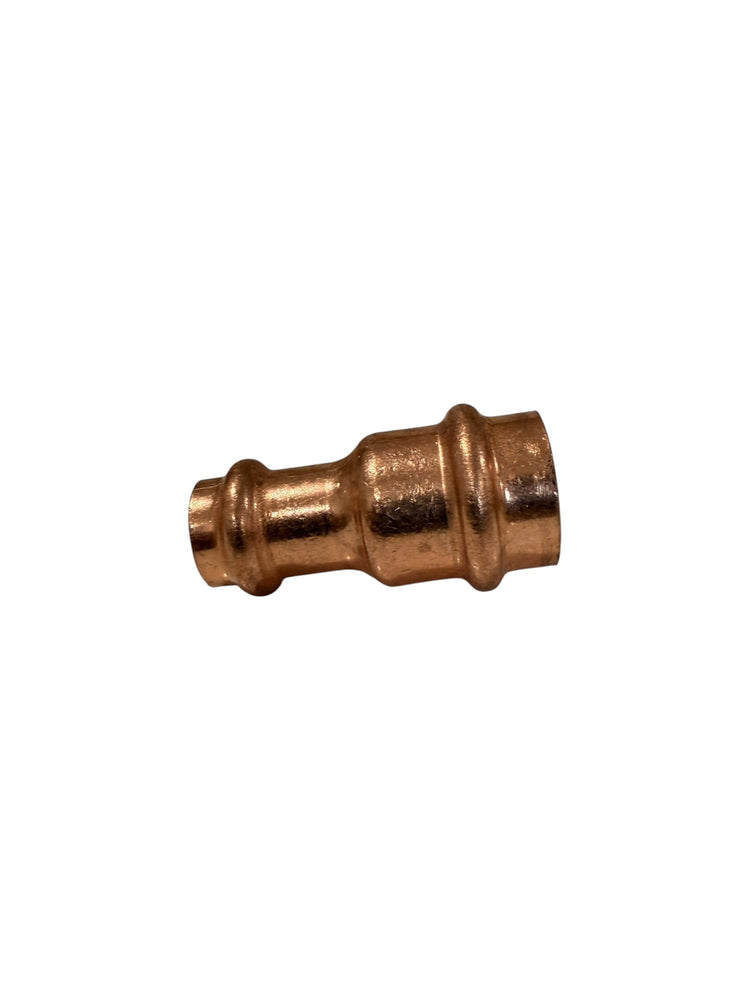

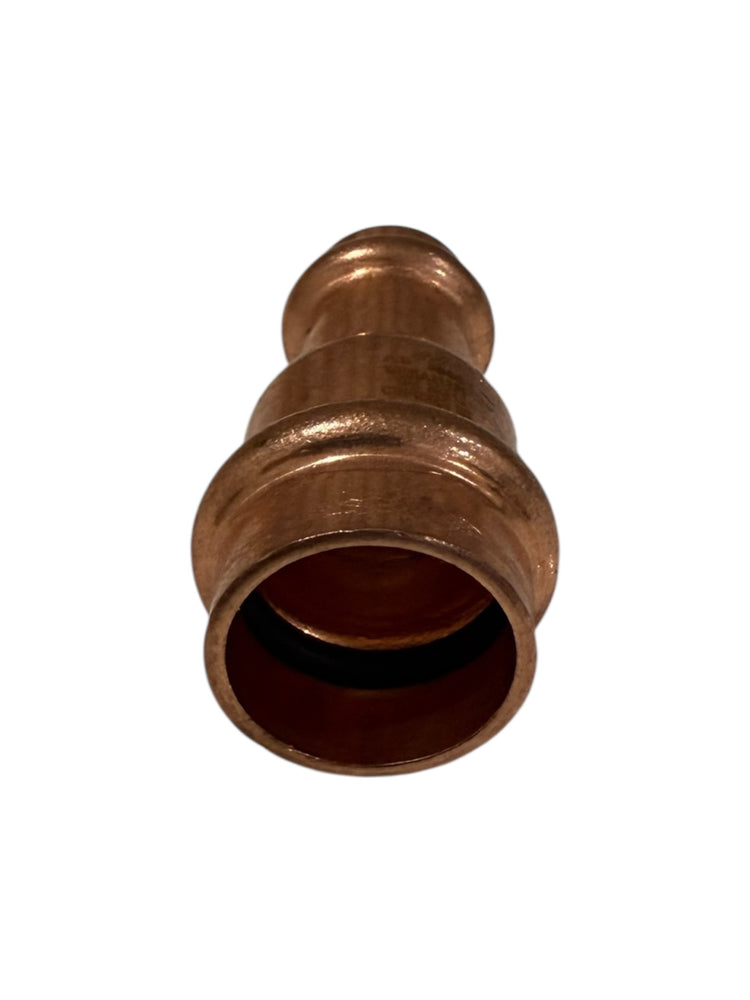

Brasshards Cupress 4CPC2015 Copper Water Press Fitting 20-15mm Reducing Coupling


Overview:
The Brasshards Cupress 4CPC2015 Copper Water Press Fitting 20-15mm Reducing Coupling is compatible with all major copper press systems, including Viega, Connex Banninger B Press, and Kembla Kempress. This reducing press coupling is designed for joining two copper pipes of different sizes in potable water systems and is suitable for use with standard copper press tools.

The 4CPC2015 reducer features a lip at both ends to guide press alignment and ensure a secure seal. Fitted with black EPDM O-rings, it supports potable water applications with a maximum working pressure of 1600 kPa and a temperature range of -20°C to 110°C. Its slug-fit design allows the fitting to remain in place before pressing, simplifying installation. Once pressed, it forms a tamper-free, permanent connection that won’t deform the internal pipe surface, ensuring smooth and unrestricted water flow.


Technical Details:
•    Manufacturer: Brasshards
•    Model: 4CPC2015
•    Size: 20mm × 15mm (DN20 × DN15)
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    Materials: Copper, EPDM O-ring
•    Compliant with AS1432 – Type A and B copper tubes (hard, half hard, or annealed)
•    Intended Use: Joining a DN20 copper pipe to a DN15 copper pipe
•    SKU: 4CPC2015


Package Contents:
•    1 × Brasshards Cupress 4CPC2015 Copper Water Press Fitting 20-15mm Reducing Coupling
•    Package Weight: 38g
