Brasshards Cupress 4CPE020 Water Copper Press Fitting 20mm 90° Deg Elbow


Overview

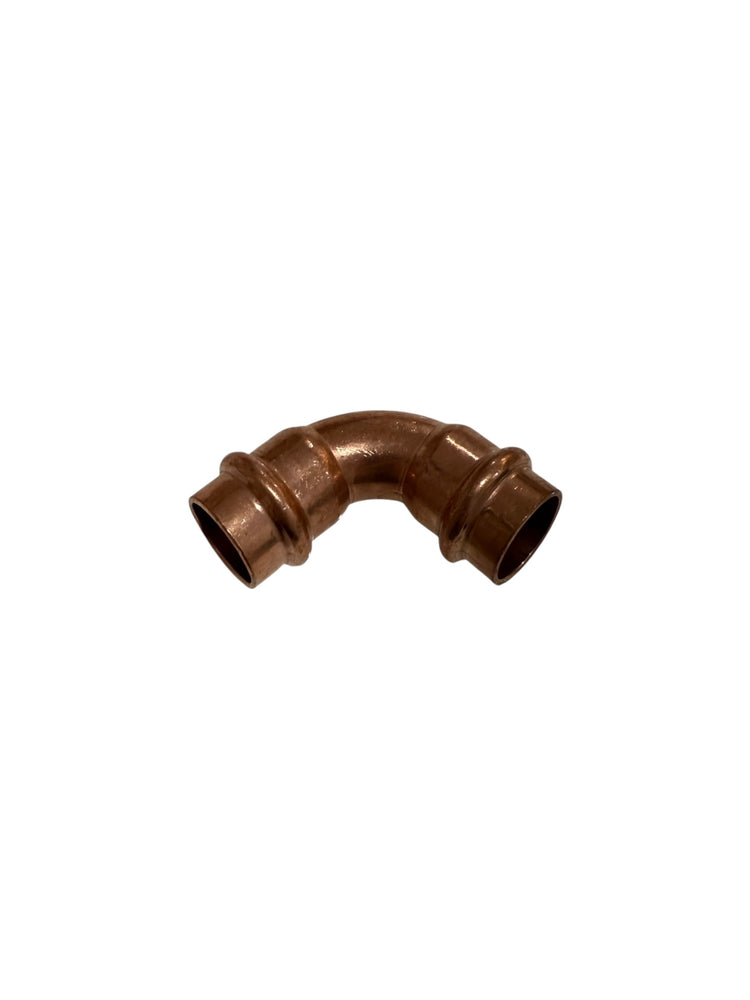

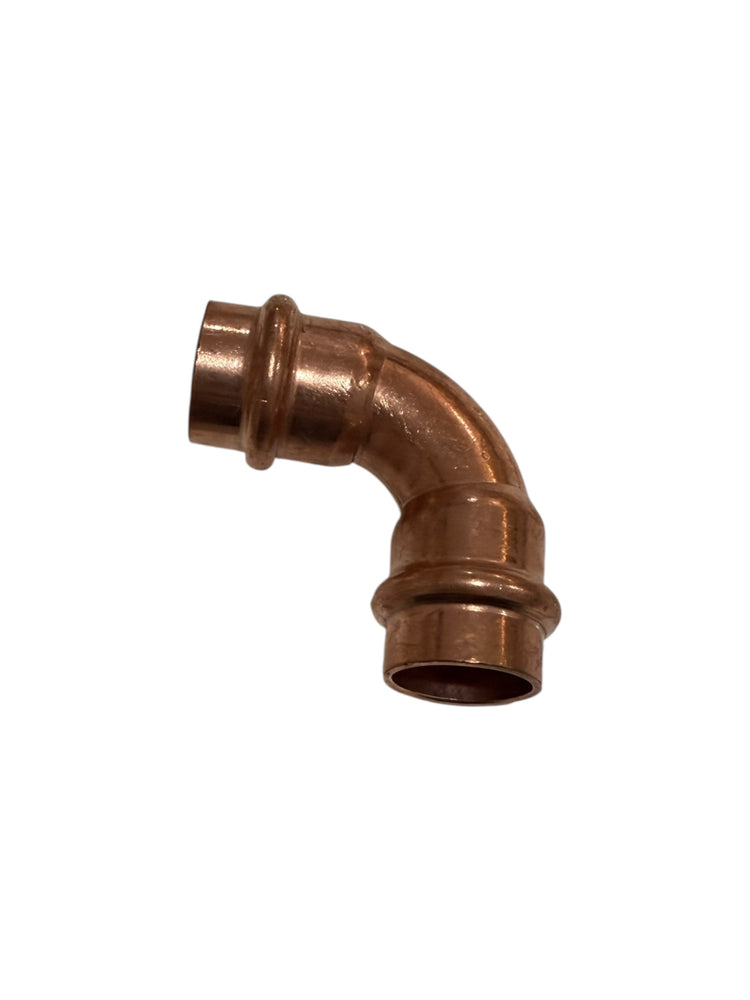

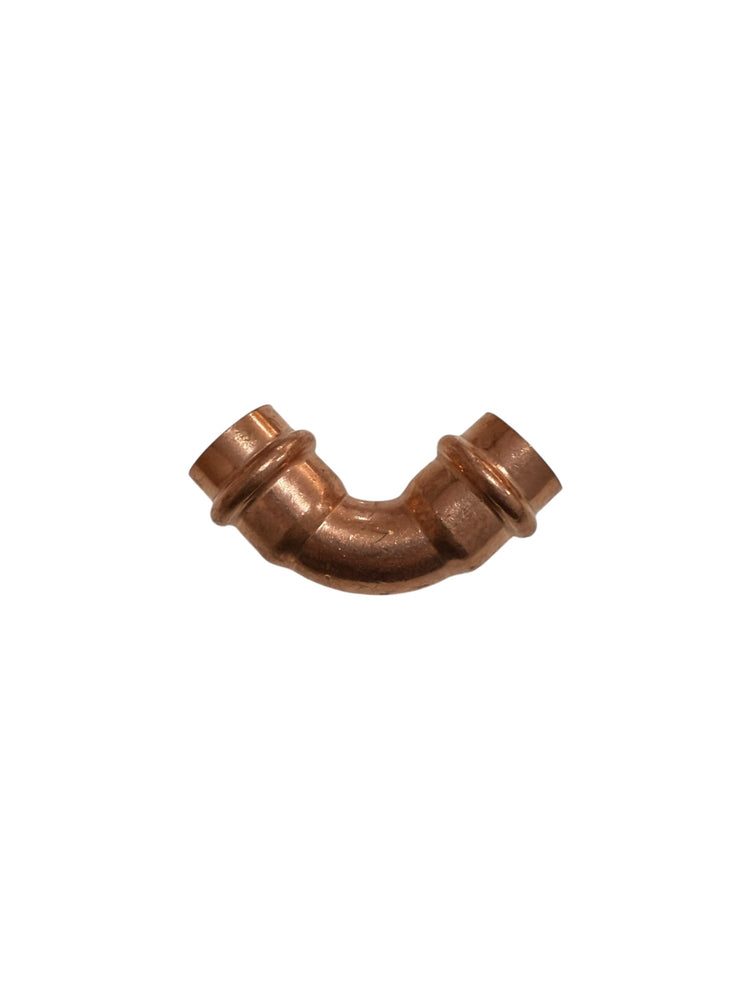

Brasshards Cupress 4CPE020 20mm water copper press 90° elbow (DN20 crimp fitting) is compatible with all popular press tools and copper press systems such as Viega, Connex Banninger B Press, and Kembla Kempress. The Brasshards 90° press elbows are used extensively in modern plumbing works, providing a clean right-angle finish and professional presentation.

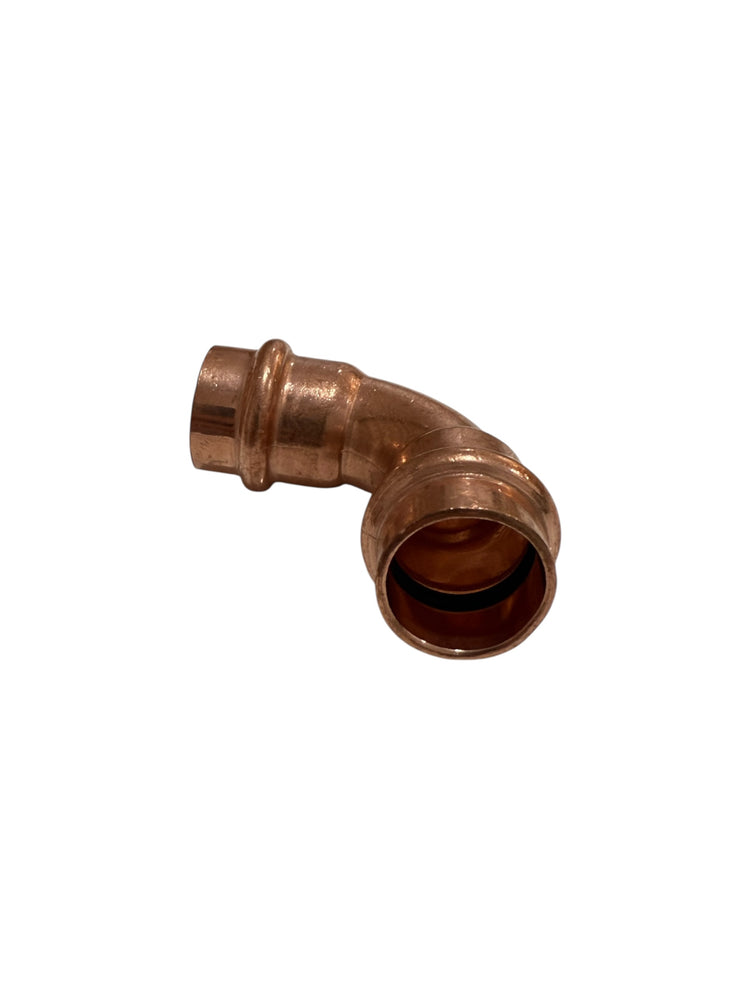

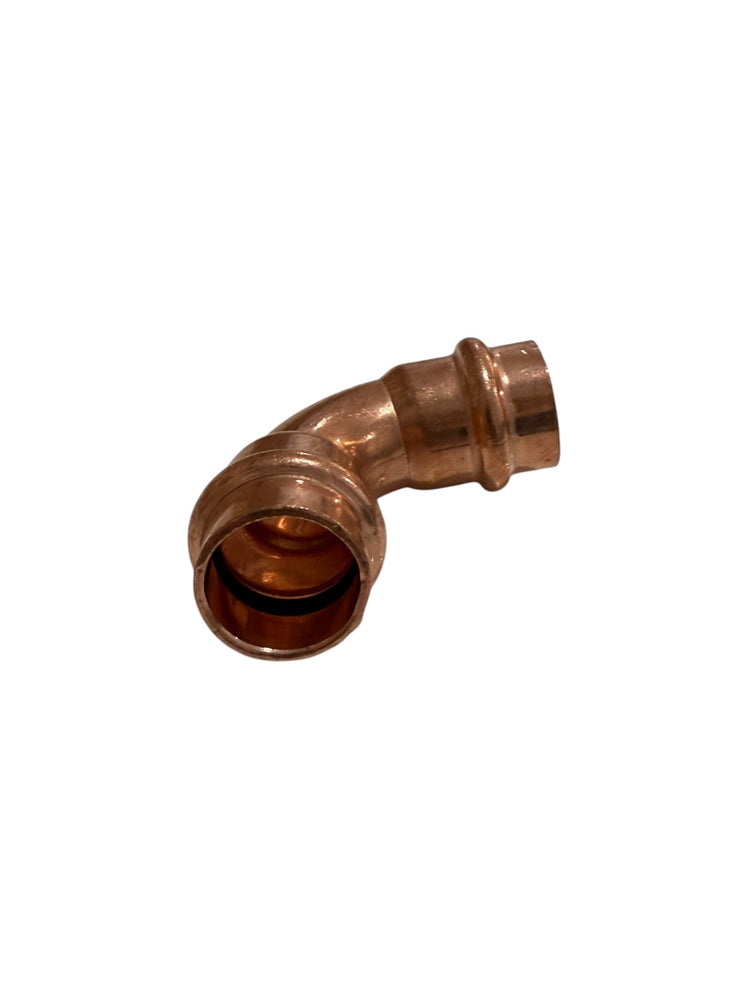

The Brasshards Cupress water copper press elbow features a lip at the end of the fitting to help align the press tool and provide additional sealing material when pressed. The black sealing ring is made of EPDM O-ring for portable water applications with a temperature range of -20 - 110 °C and a maximum pressure rating of 1600kPa.These copper press fittings have a slug-fit design that keeps them in place before pressing, allowing for easy installation and adjustment. Once pressed with the correct tool, the fitting forms a secure, non-deforming connection that ensures smooth, unobstructed water flow.


Technical Details
•    Manufacturer: Brasshards
•    Size: DN20, 20mm
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    Suitable for Australian AS1432 standard Type A and B copper tubes
•    Materials: Copper, EPDM O-ring
•    Intended Use: Joining copper pipes at 90 degrees
•    SKU: 4CPE020


Package Contents
•    Single Brasshards Cupress 4CPE020 20mm Water Copper Press 90° Elbow
•    Package Weight: 62g
