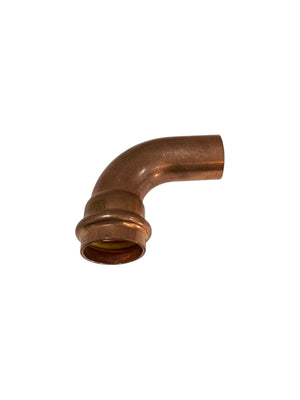

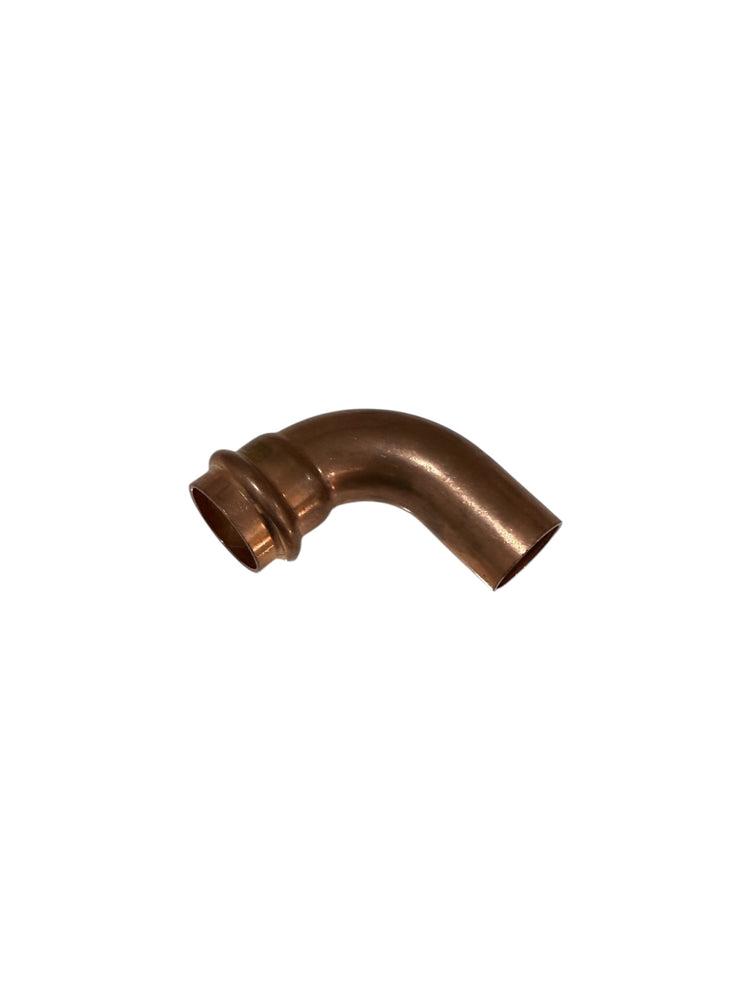

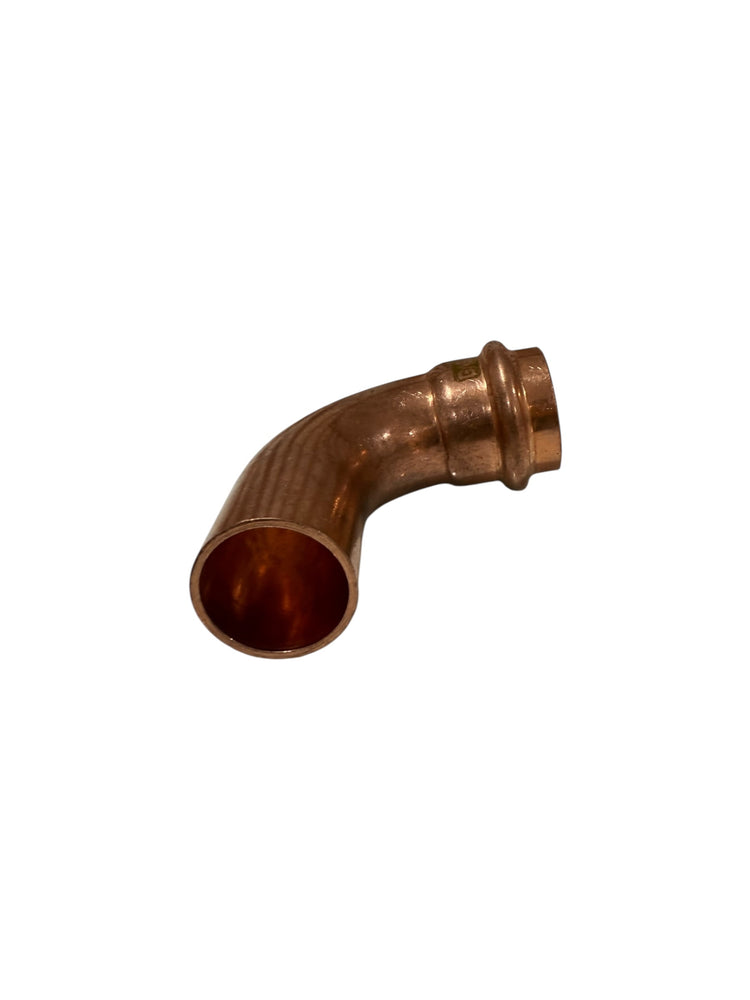

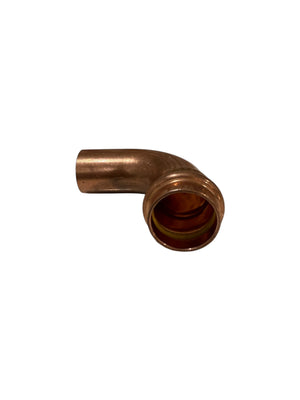

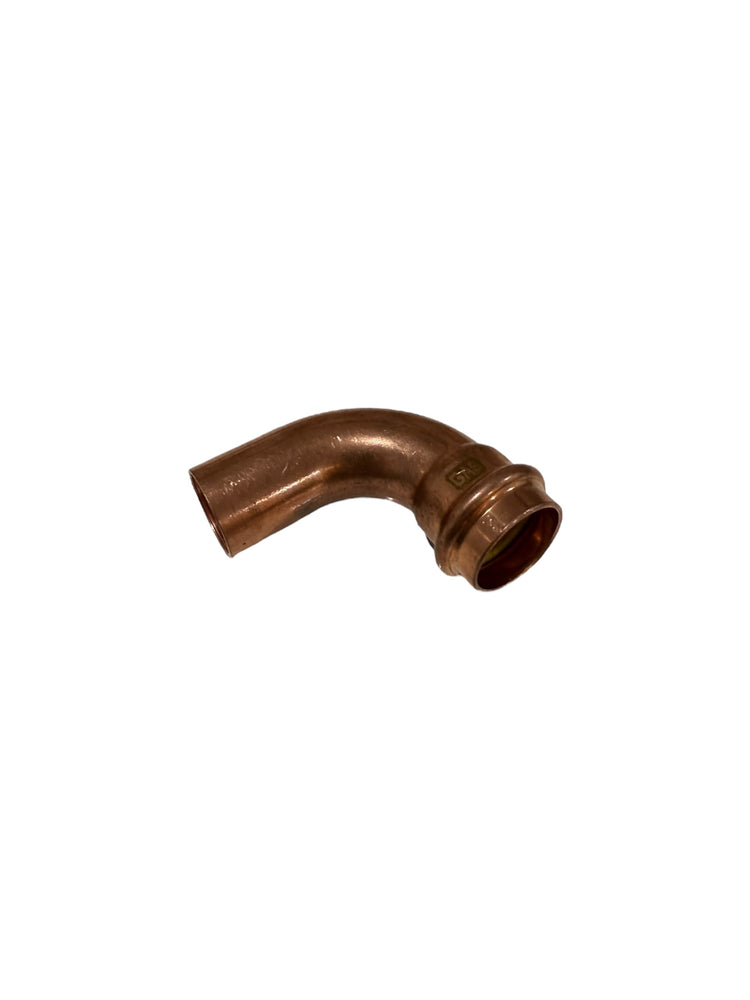

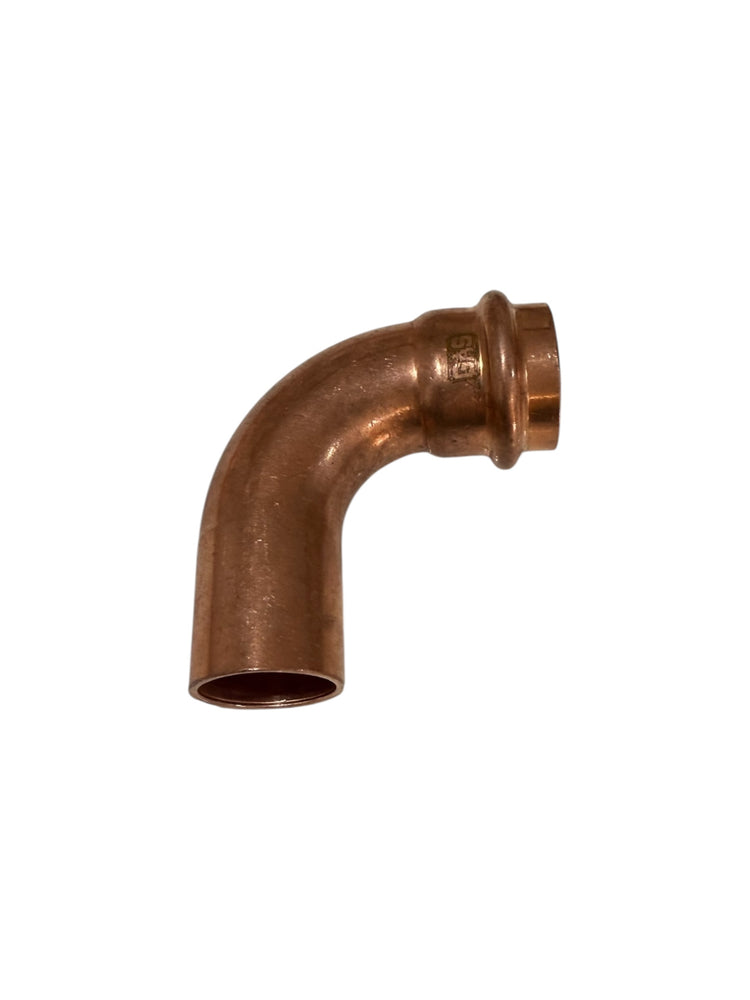

Brasshards Cupress 4GPE125 Gas Copper Press-Capillary Fitting 25mm 90° Deg Elbow

Overview
The Brasshards Cupress 4GPE125 Gas Copper Press-Capillary Fitting 25mm 90° Deg DN25 Elbow is designed for use with popular copper press systems including Viega, Connex Banninger B Press, and Kembla Kempress. This elbow features a mixed-end design, with one press-fit end and one capillary (solder/braze) end, making it ideal for installations requiring both modern press connections and traditional copper joinery.

The press end of the 4GPE125 elbow includes a precision-alignment lip and is fitted with a yellow HNBR O-ring specifically formulated for gas applications, including both LPG and natural gas. With a temperature range of -20°C to 110°C and a maximum pressure of 1600 kPa, this fitting ensures a secure, tamper-proof joint once pressed. The slug-fit design keeps the fitting in place before crimping, and the non-deforming press connection maintains clear internal pipe flow.


Technical Details:
•    Manufacturer: Brasshards
•    Model: 4GPE125
•    Size: DN25 (25mm)
•    Connection Type: Press × Capillary
•    Maximum Working Pressure: 1600 kPa
•    Temperature Range: -20°C to 110°C
•    WaterMark Certified for Gas
•    Complies with AS1432 and AS3688 standards
•    Materials: Copper, HNBR O-ring
•    Intended Use: Joining gas copper pipes at 90 degrees
•    SKU: 4GPE125


Package Contents:
•    Single Brasshards Cupress 4GPE125 25mm Gas Copper Press × Capillary 90° Elbow
•    Package Weight: 105g
