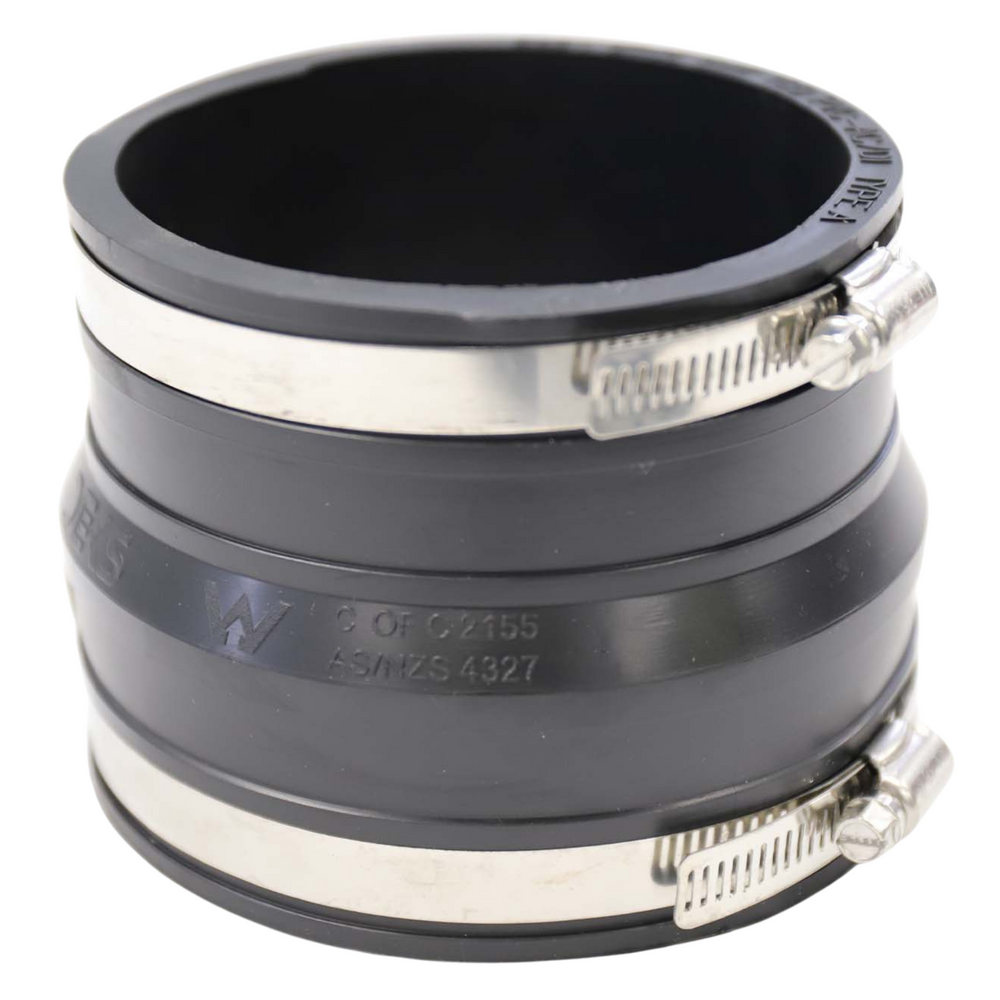

Deks 6051 DN100 EW to PVC Pipe Adapter Rubber Joiner OD 105/114–115/124mm

Overview

The Deks 6051 Black EPDM Rubber Joiner Flexible Adapter Coupling is designed to connect DN100 PVC pipes (OD 105–114 mm) to DN100 AC/Ductile Iron (DI) pipes (OD 115–124 mm) in non-pressure applications such as drain and soil waste systems. Made from a highly flexible rubber polymer and secured with 316 stainless steel adjustable bands, this joiner ensures long-lasting durability and reliable performance. It is Australian Watermark Approved and complies with AS/NZS 4327, offering peace of mind to plumbers.

Technical Details

• Manufacturer: Deks
• Model: 6051
• Material: EPDM Rubber, 316 Stainless Steel Bands
• Connection Type: PVC to AC/Ductile Iron (DI)
• Pipe Size Compatibility: DN100 PVC (105–114 mm OD) to DN100 AC/DI (115–124 mm OD)
• Max Temperature: Continuous 38 °C – Intermittent 60 °C

Dimensions

• PVC Inner Diameter: 100 mm
• PVC Outer Diameter: 121.6 mm
• AC/DI Inner Diameter: 100 mm
• Length: 101 mm
• Band Width: 12.7 mm

Package Contents

• Deks 6051 Joiner
• Weight: 480 g
