Elson E-NRIBV-15C Male Compression 15mm Non Return Isolation Duo Valve
Overview
Elson E-NRIBV-15C 15mm ½” male compression non-return isolation duo valve is Watermark approved and supplied with copper olives. The non return isolation duo valve features a durable metal butterfly handle and an inbuilt one-way check valve which isolates the residential hot water system from the mains supply. The duo valve can be manually switched on and off with its quarter turn ball valve operation, allowing for easy maintenances and services.
Technical Details
• Manufacturer: Elson
• Model: E-NRIBV-15C
• Thread Size: 1/2" BSP (15mm) Male Compression (15C x 15C)

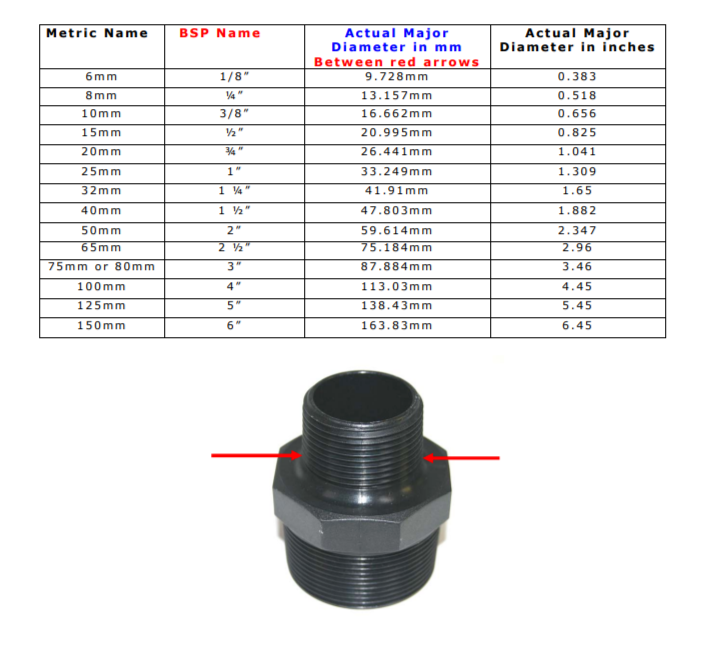

• Physical Thread Measurement: 20.995mm male external thread (with the cone nuts removed); Refer to the BSP sizing chart in the photo gallery
• Material: DR Brass Body
• Features: Quarter turn ball valve operation with metal butterfly handle
• Australian Watermark Approved
• Working temperature: 1°C to 65°C
• Maximum pressure rating: 1400 KPa
• Intended Use: Hot water service isolation
• SKU: E-NRIBV-15C
Package Contents

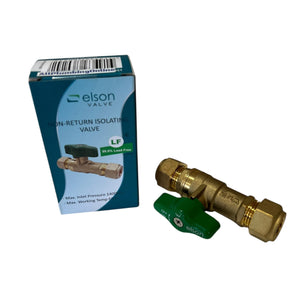

• Elson E-NRIBV-15C non-return isolation duo valve
• Package Weight: 290g
